The Panda Generator
Seite/Page 38 - Kaptitel/Chapter 4: The Panda Generator 30.10.12
4.2 Description of the Generator
4.2.1 Front view

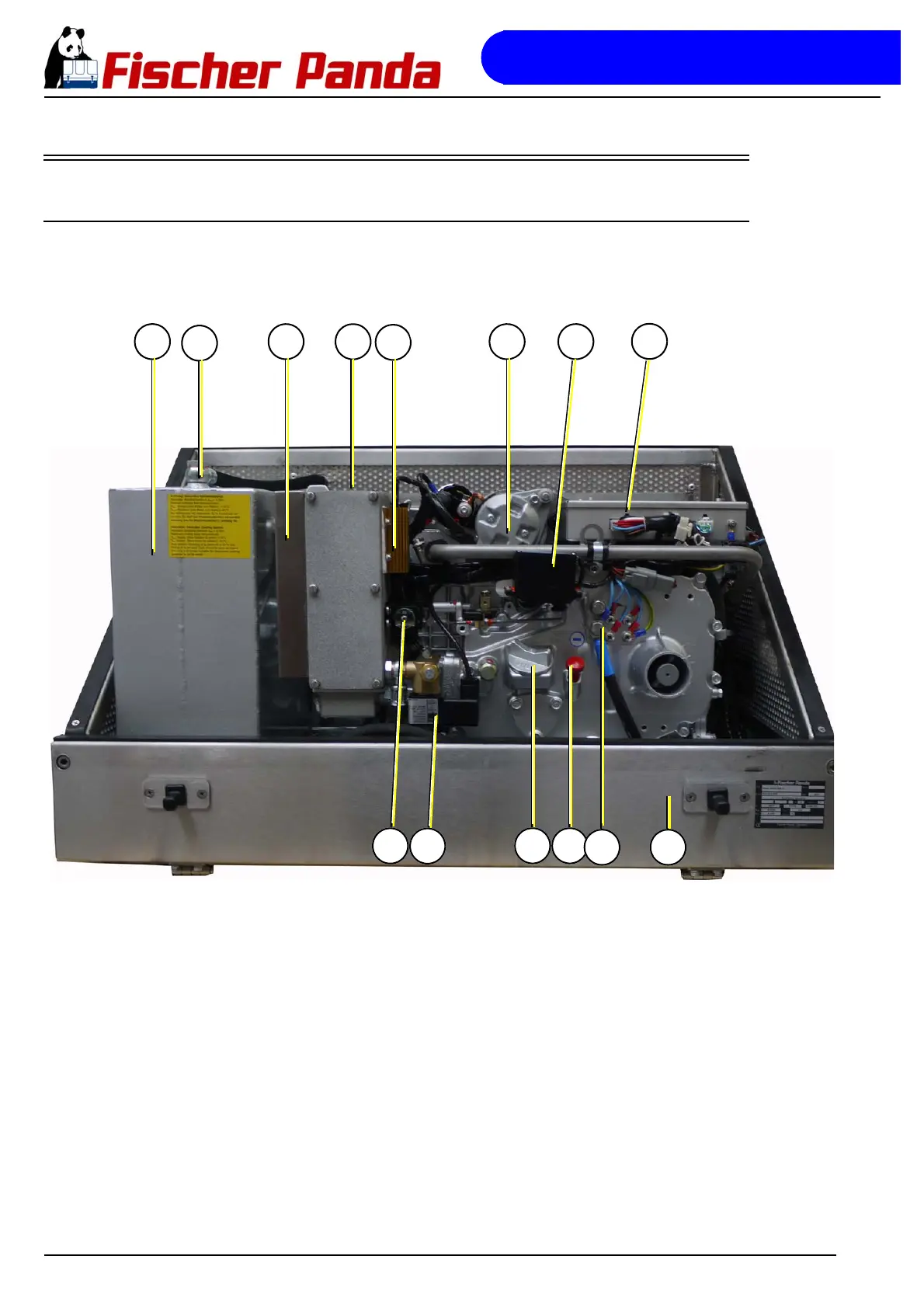

Fig. 4.2.1-1: Frant view
01
02
06
12
13
03
04
05
07
08
14
09
10
11
01. Watercooled silencer
02. Venting screw at the silencer
03. Combustion air intake
04. Air filter housing with filter
05. Protective resistor for thermoswitch 75°C/70°C
06. Starter
07. Actuator
08. iControl elektronic board „DO NOT OPEN - Danger to life“
09. Electric fuse (white=25A; green=30A;
10. Fuel solonoid
11. Oil filler cap
12. Oil dip stick
13. Ground connection point
14. Sound cover base part
