Fischer Panda 5000i PVK-U - Rear View

The Panda Generator
30.10.12 Kapitel/Chapter 4: The Panda Generator - Seite/Page 39
4.2.2 Rear View

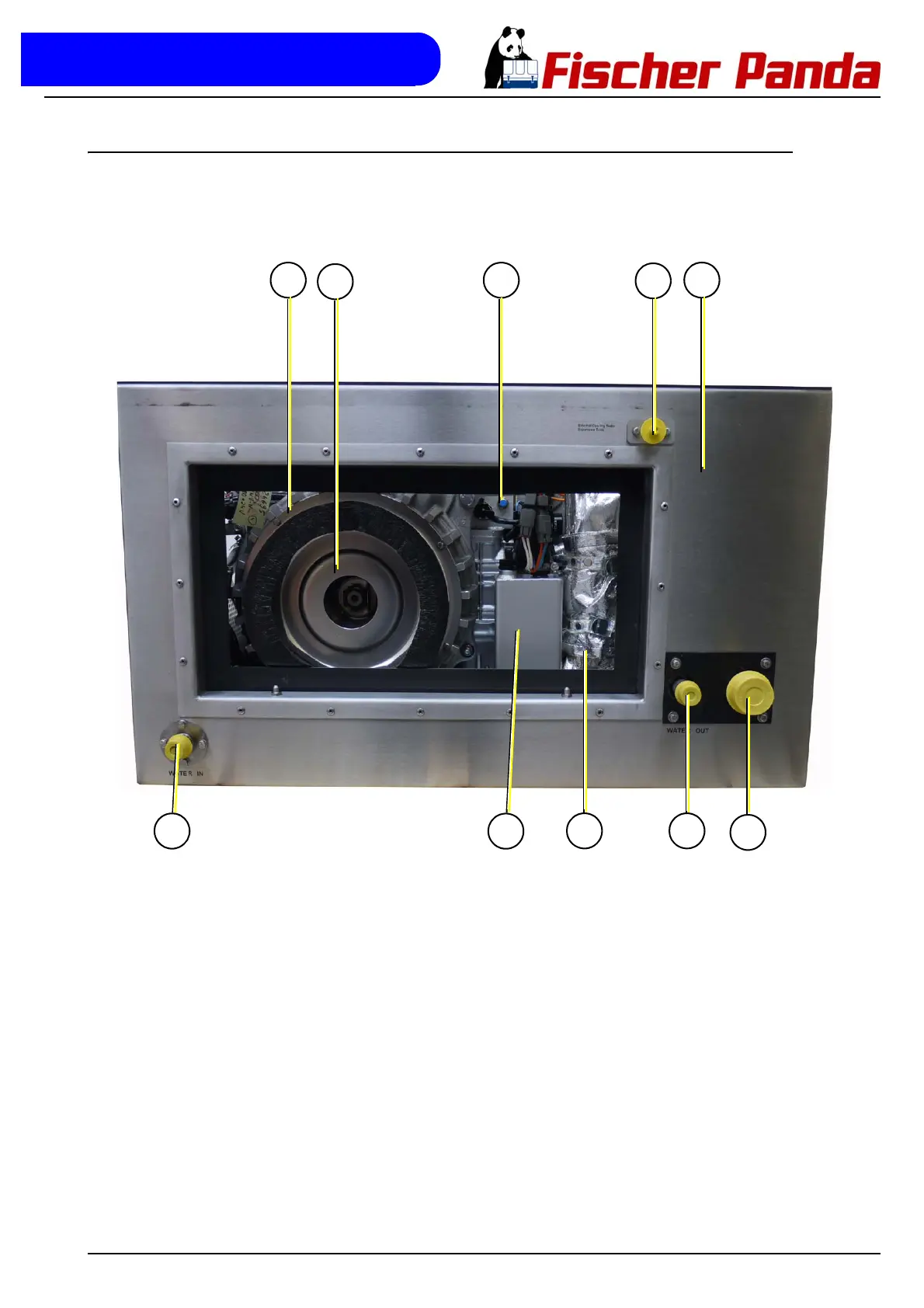

Fig. 4.2.2-1: Rear View
01
02
05
09
03
04
10
06
07
08
01. Generator housing with stator winding
02. Generator housing front cover
03: Ventilation screw at cylinder head
04. Connection point for external expansion tank
05. Sound cover base part
06. Cooling water intake (cold side)
07. Watercooled exhaust elbow
08. Compensator under heat isolation
09. Cooling water out (hot side)
10. Exhaust out
