The Panda Generator
Seite/Page 40 - Kaptitel/Chapter 4: The Panda Generator 30.10.12
4.2.3 Top view

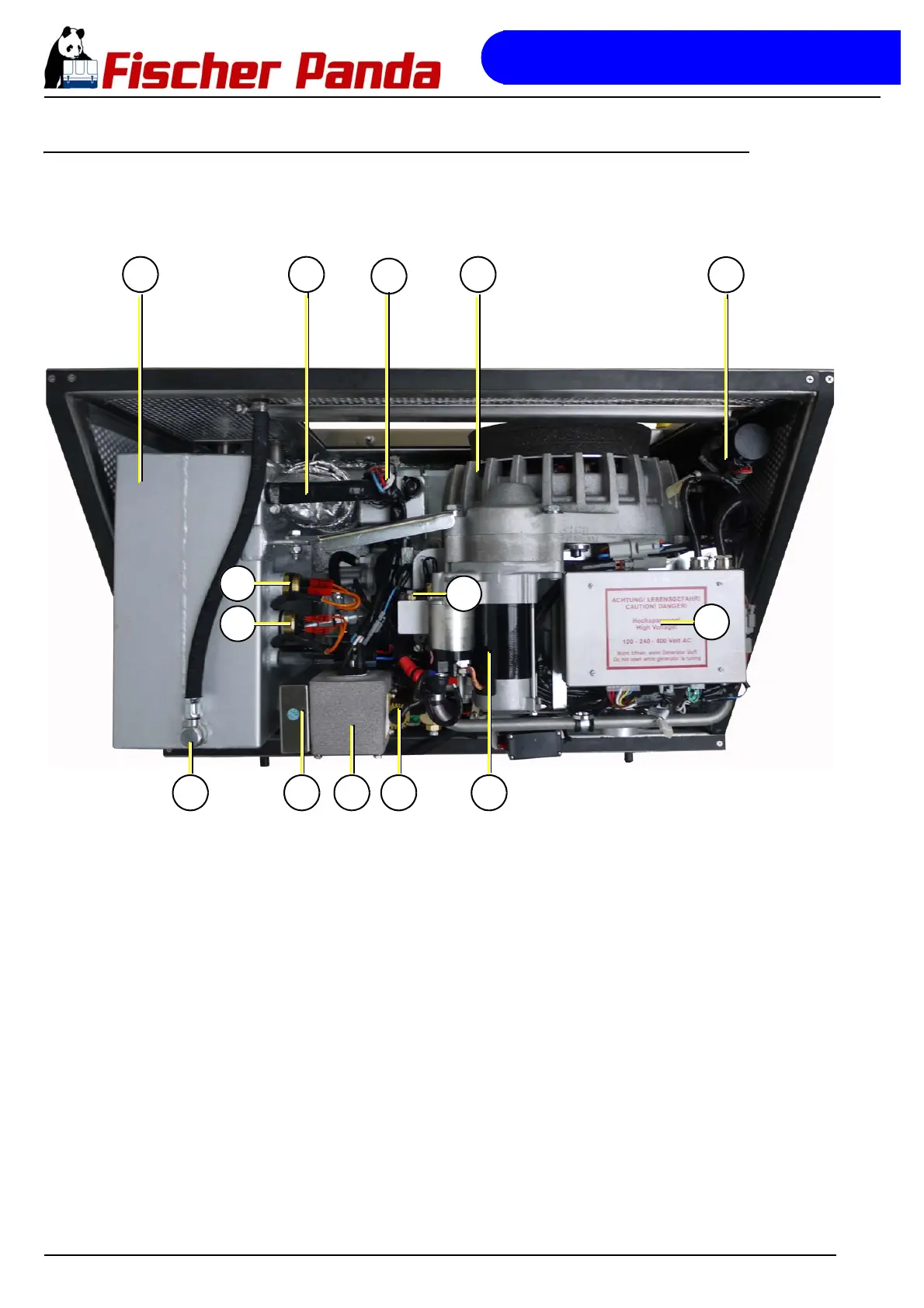

Fig. 4.2.3-1: Top view
10
0201 04
11 12 13 14
06
09
03
05
07
08
01. Watercooled pre silencer
02. Compensator under heat isolation
03. Watercooled exhaust elbow
04 Generator housing with stator winding
05 Cooling water pump
06. Thermo switch 75°C/70°C
07. Thermo switch 82°C/77°C
08. Thermo sensor at engine
09. iControl elektronic board „DO NOT OPEN - Danger to life“
10. Venting screw pre silencer
11. Air suction housing
12. Ait filter housing
13. Protective resistor for thermo switch 75°C/70°C
14. Starter motor
