Installation Instructions
Seite/Page 66 Kapitel/Chapter 6: Installation Instructions 30.10.12

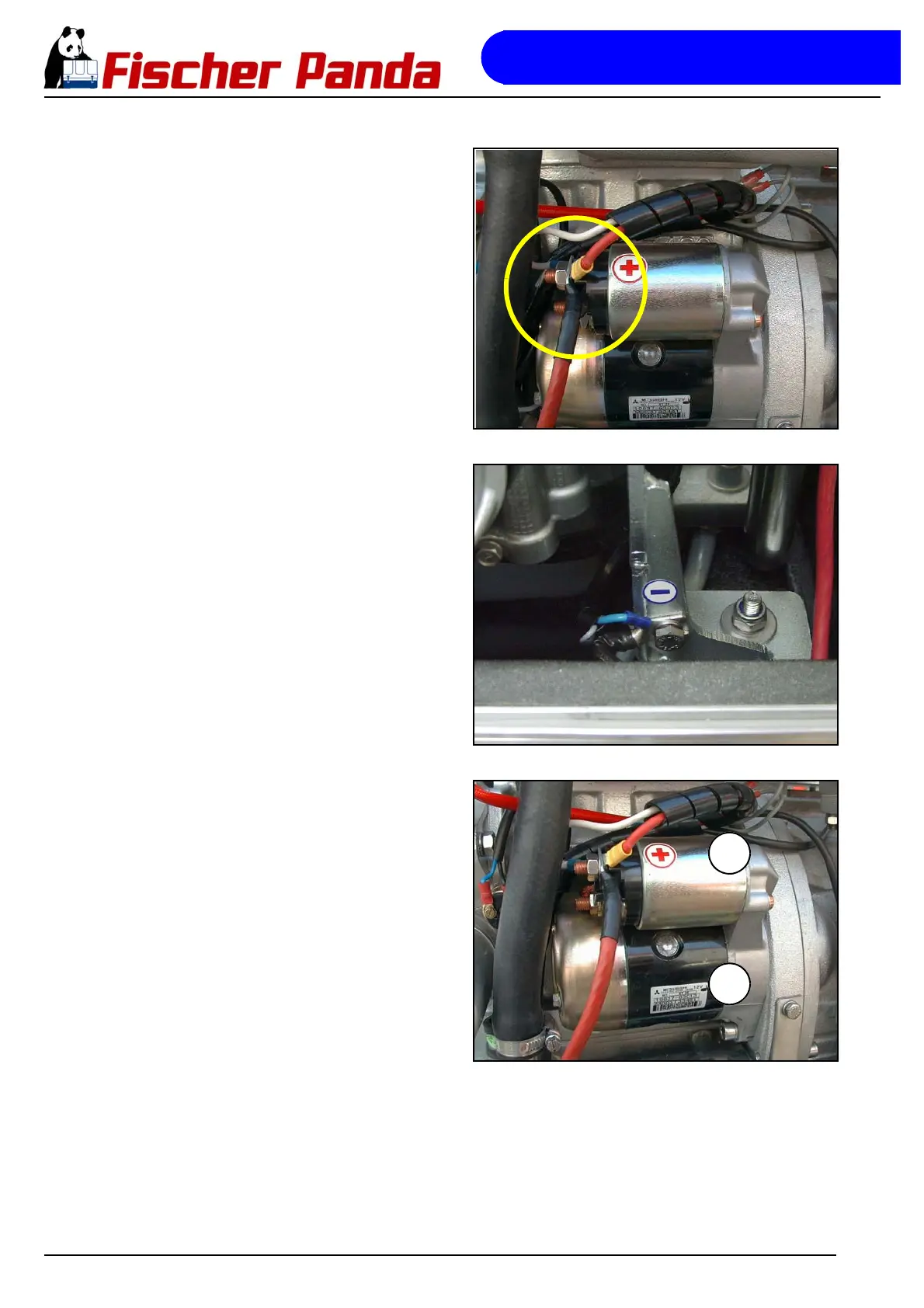

Fig. 6.6.1-1: Positive Battery Cable Positive battery cable
The positive (+) battery cable is connected directly to the
solenoid switch of the starter.
Fig. 6.6.1-2: Negative Battery CableNegative battery cable
The negative (-) battery cable is connected to the engine
foot.
Note! The battery negative pole may not be connected
with the boat ground or with the protective grounding of
the 12 V installation!
Fig. 6.6.1-3: DC Starter MotorDC Starter Motor
All Panda generators are equipped with an independent DC
starter motor.
1. Solenoid switch for starter motor
2. Starter motor
