Maintenance Instructions
Seite/Page 100 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 6: Maintenance Instructions 22.3.11
You require:
paper towels / cloth for the oildipstick
The generator must be placed at level.
- with vehicular generators: Place the vehicle on a leveled surface.
- with PSC generators: Place the generator on a leveled surface.
- with marine generators: Measure the oil-level when the ship is not lop-sided.
Run the generator for about 10 minutes to ensure that the engine is warm.
Wait for 3 minutes, so the oil can flow back into the oil pan.
Caution: Burn hazard!
Generator and coolant can be hot during and after operating.
Wear personal protective equipment. (Gloves, protective goggles, protective
clothing and safety shoes)
- Assure generator against accidental start.
- Open the generator casing.
- Pull the oildipstick out of the check rail.
- Clean oildipstick.
- Put the oildipstick back into the check rail and wait for 10 seconds.
- Pull the oildipstick out of the check rail and read off the oil-level at the lower end of the stick.

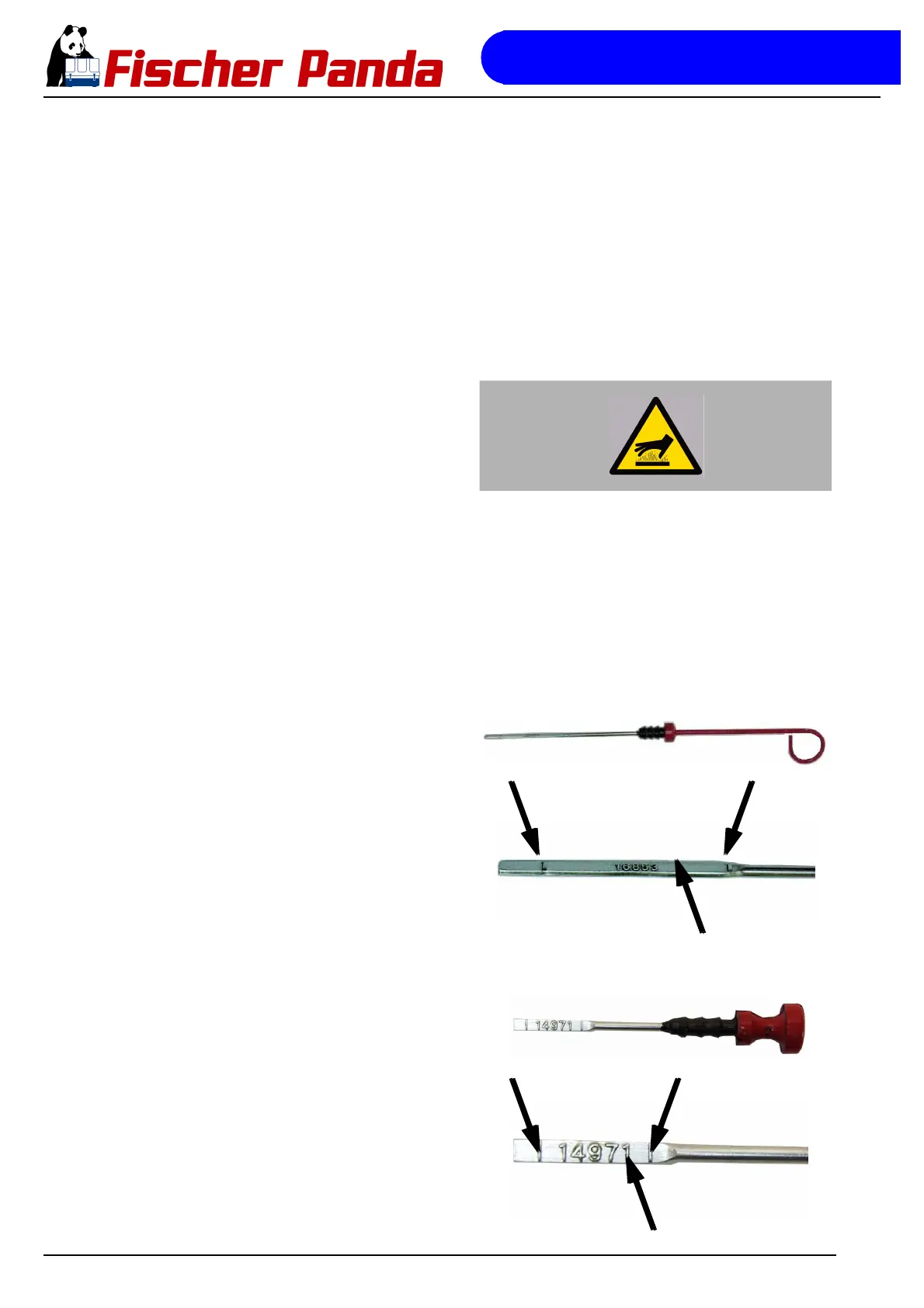

Fig. 6.5-1: Oildipstick - Sample
Oildipstick
The oil-level is to be checked by means of the oildipstick. The prescribed fil-
ling level must not cross the „Max“-mark.
We recommend an oil-level of 2/3.
Sample picture
Fig. 6.5-2: Samplepicture Oildipstick
Oildipstick EA 300 Engine
The oil-level is to be checked by means of the oildipstick. The prescribed fil-
ling level must not cross the „Max“-mark.
We recommend an oil-level of 2/3.
Sample picture
2/3 Suggestion
Oil Max.
Oil Min.
Oil Max.
Oil Min.
2/3 Suggestion
