Generator Faults
Seite/Page 162 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 7: Generator Faults 22.3.11
7.8.2 Checking the Capacitors
ATTENTION! If the capacitors are to be checked, make sure that the capaci-
tors has been discharged.
A visual check can give information on whether the capacitors are defective:
- Dielectric leak?
- Did the capacitor become longer?

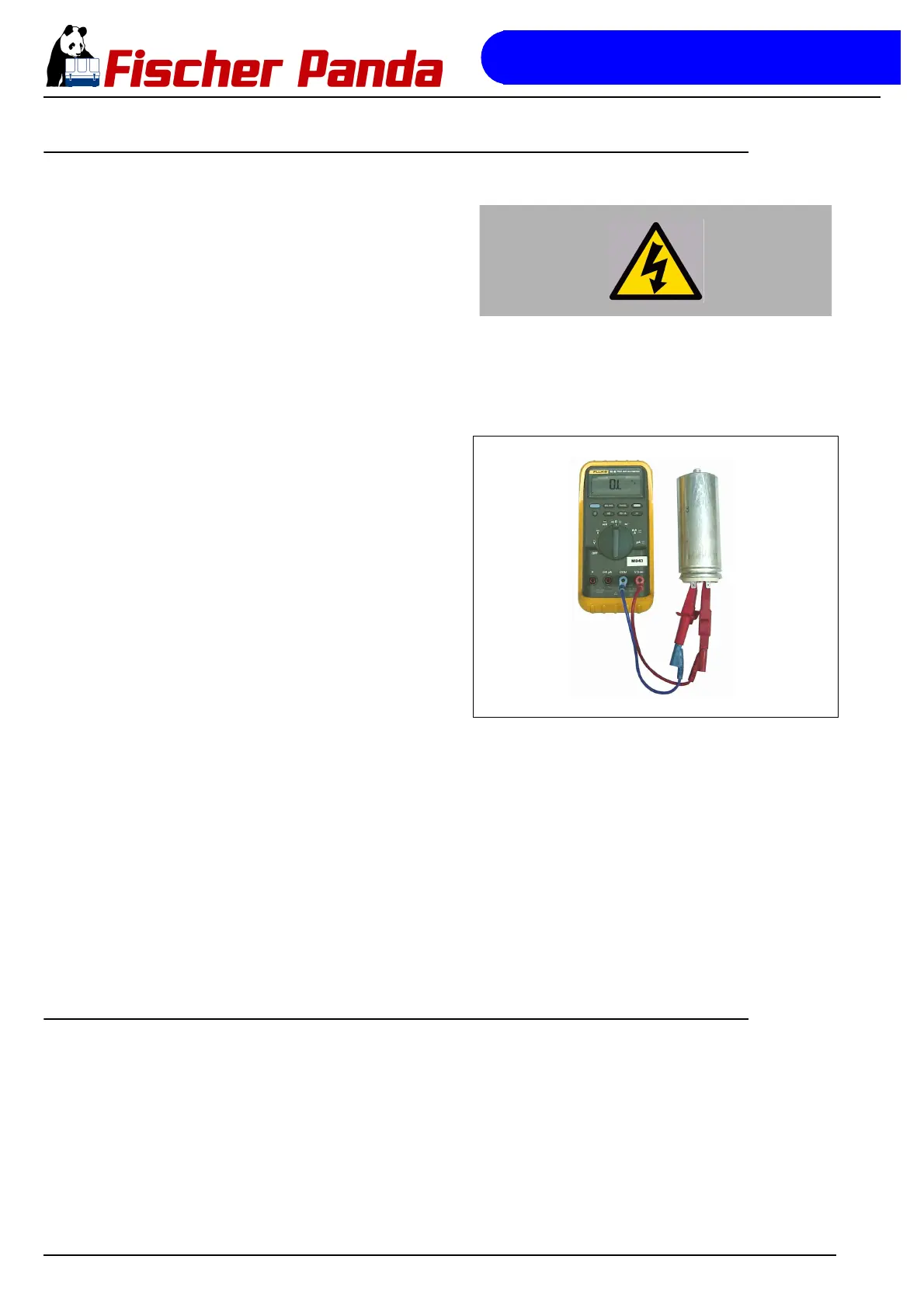

Fig. 7.8.2-1: Multimeter Multimeter
The capacitors can be tested by means of a multi-meter, which is fitted with a
buzzer. The multi-meter should be switched to open and both capacitor con-
nections connected to the multi-meter.
The capacitors can be tested with a multi-meter. Switch the measuring
instrument to "pass" and connect both connections of the capacitors to the
connections at the measuring instrument.
Touch the two contacts of the capacitors by means of the test prods. A
charge should be fed to the capacitor by the internal battery.
Should a steady sound or no sound be heard, the capacitors are defective and must be replaced.
A capacity measuring instrument must be used in order to check whether the capacitors have full capacity.
The capacitors, which do meet the prescribed capacity value at this measurement, should be exchanged as fast as
possible. If all capacitors prove to be still functional, then a check must be made, as to whether the connections to
the strip are correct.
7.8.2.1 Checking the electrical connections to the capacitors
It must be ensured that the electrical connections to the capacitors are always tight fitting. Loose connections with
transitional resistance can mean that the contact surfaces will become heated externally. This can lead to an
increased deterioration of the capacitors.
7.8.3 Check the Generator Voltage
The following steps must be taken, in order to test whether the stator winding generates sufficient voltage:
1. The following steps must be taken, in order to test whether the stator winding generates sufficient voltage:
2. Ensure that the connection to the shipboard circuit is interrupted.
3. Remove all electrical wires in the generator junction box.
4. Starter battery must be connected to the generator.
5. Start generator.
6. Measure the voltage between the phases and neutral. It can be assumed that damage has been caused to the
windings, if the measured values are below the values given in Table 8.8 on Page 176
