Fischer Panda 6500 PMS - Rear View 12 V-Version

General operation
Seite/Page 192 Panel Generator Control P6+ RE0703_Kunde_eng.R06.1 - Kapitel/Chapter 11: General operation 22.3.11
11.2 Rear view 12V-version

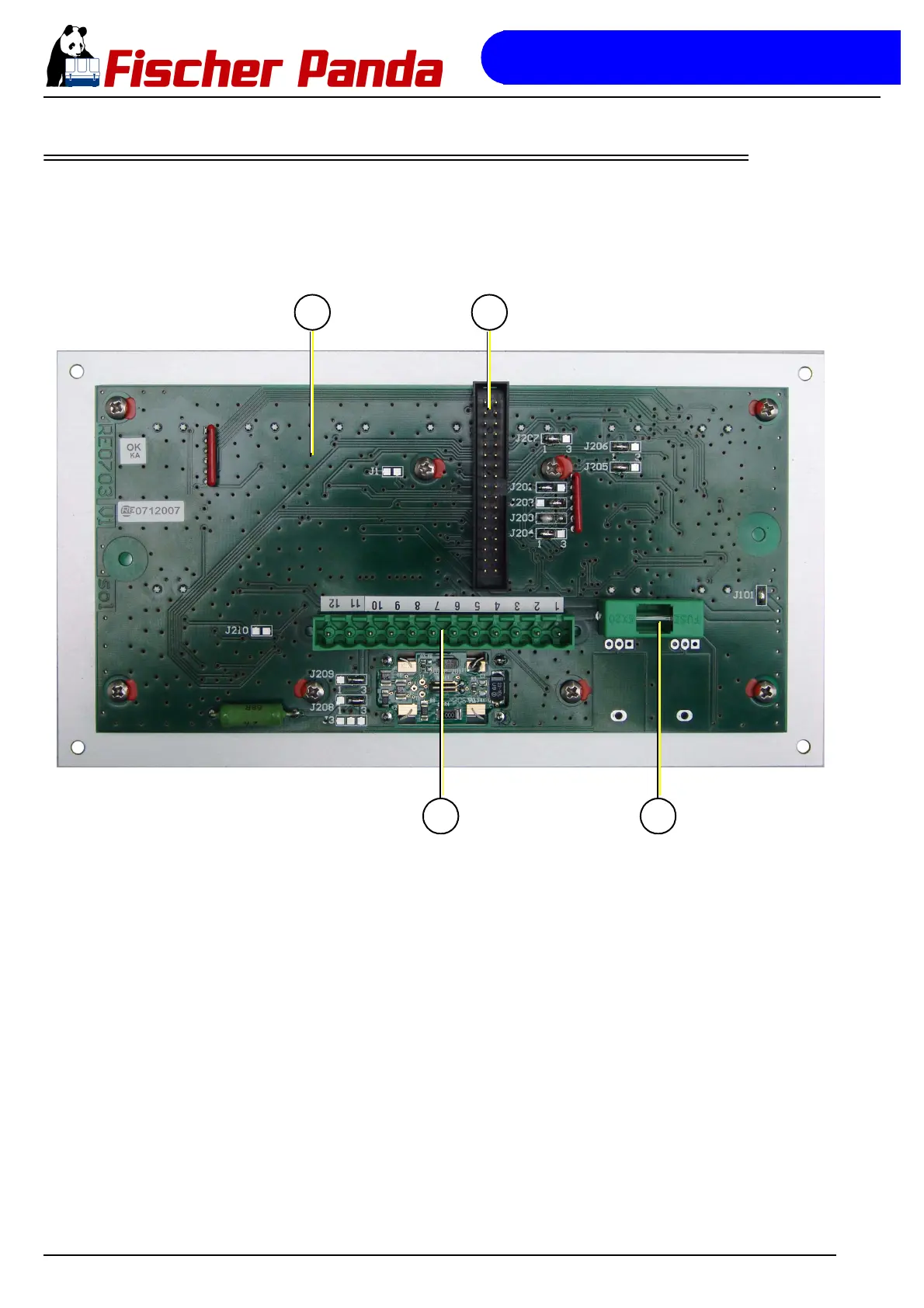

Fig. 11.2-1: Panel rear view 12V-version
Fischer Panda Art. No. 21.02.02.009H
0201
03 04
01. Control board
02. Terminal block (master-slave adapter: left row; automatic adapter: right row)
03. Terminals 1-12 (see Kapitel 11.4.2, “Terminal connections,” auf Seite 194)
04. Fuse 630mA slow-blow
