5.9 Generator AC System Installation
ATTENTION!
Before the electrical system is installed, READ the SAFETY
INSTRUCTIONS of this manual FIRST! Be sure that all electrical
installations (including all safety systems) comply with all
required regulations of the regional authorities. This includes
lightening conductor, personal protection switch etc.
5.9.1 Installation with looped in AC-Control box

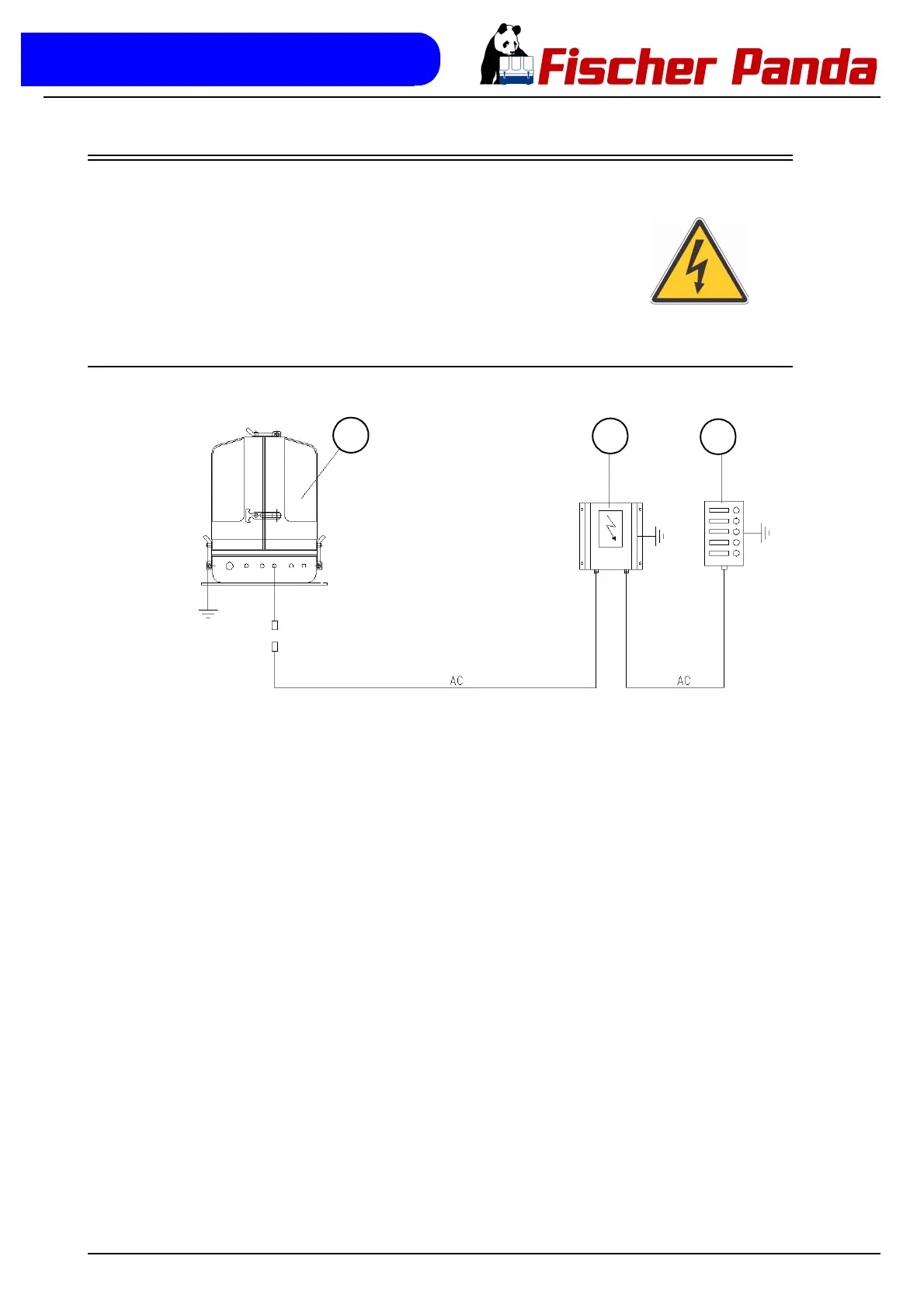

Fig. 5.9.1-1: Installation with looped in AC-Control box
All electrical safety installations have to be made on board.
1. Generator
2. AC-Control Box
3. Distribution panel
