7.5 Versions of the generator power terminal box

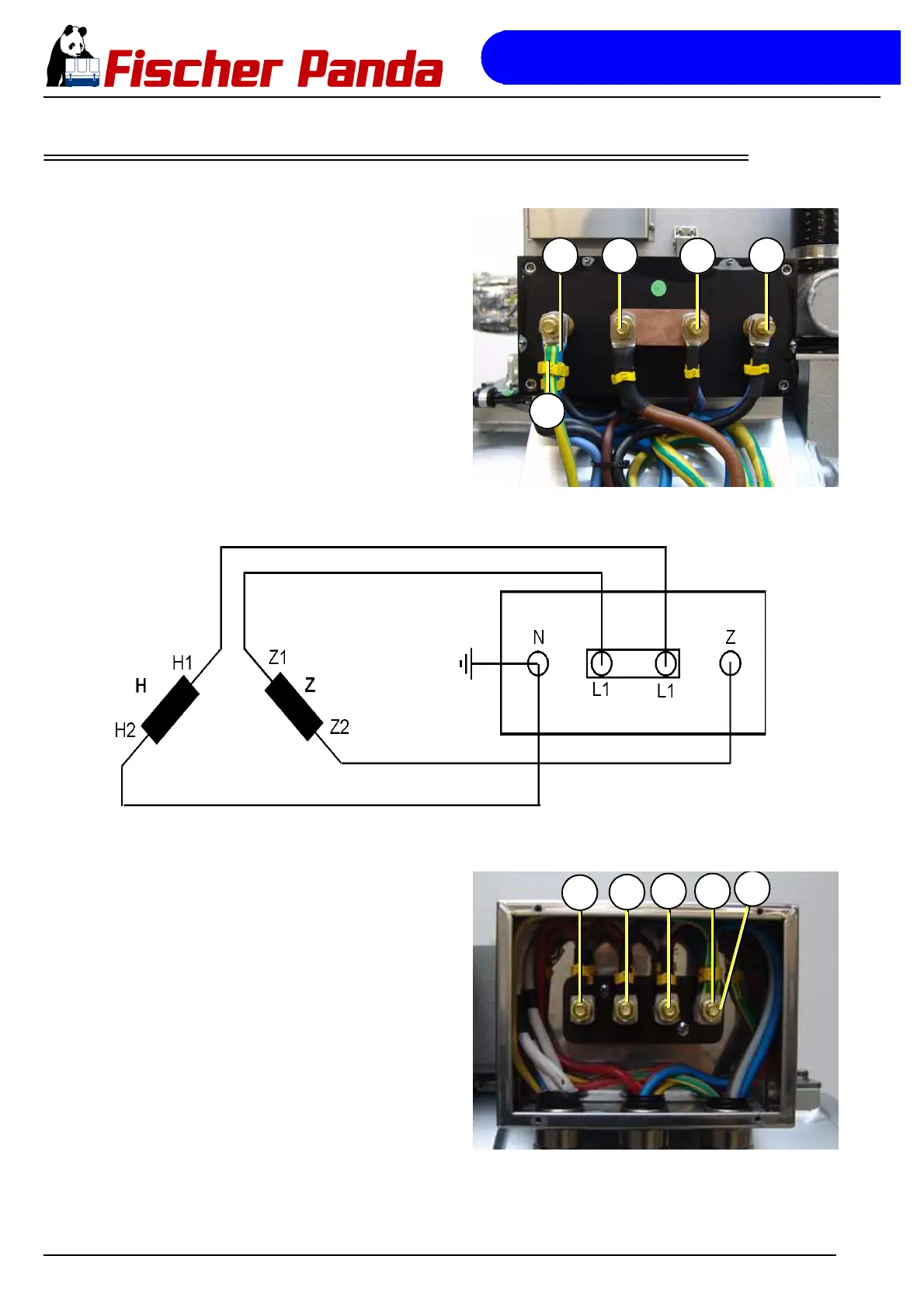

Fig. 7.5.0-1: Generator output terminal box 230V / 50 Hz Generator Power Terminal Box 230 V / 50Hz
In these terminal boxe there are the electrical connection points for the AC
generator. Here is also the bridge for the protective grounding of the genera-
tor. The cover may only be removed, if it is guaranteed that the generator
cannot be inadvertently started.
Sample picture
Fig. 7.5.0-2: Wiring diagram HP1 - 230 V / 50 Hz
Fig. 7.5.0-3: Generator Power Terminal Box 400 V / 50 Hz Generator Power Terminal Box 400 V / 50 Hz
In these terminal boxe there are the electrical connection points for the AC
generator. Here is also the bridge for the protective grounding of the genera-
tor. The cover may only be removed, if it is guaranteed that the generator
cannot be inadvertently started.
Sample Picture
PE
ZN
L1
L1
L1
L3
N
L2
PE
