Generator Faults
22.3.11 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 7: Generator Faults Seite/Page 151

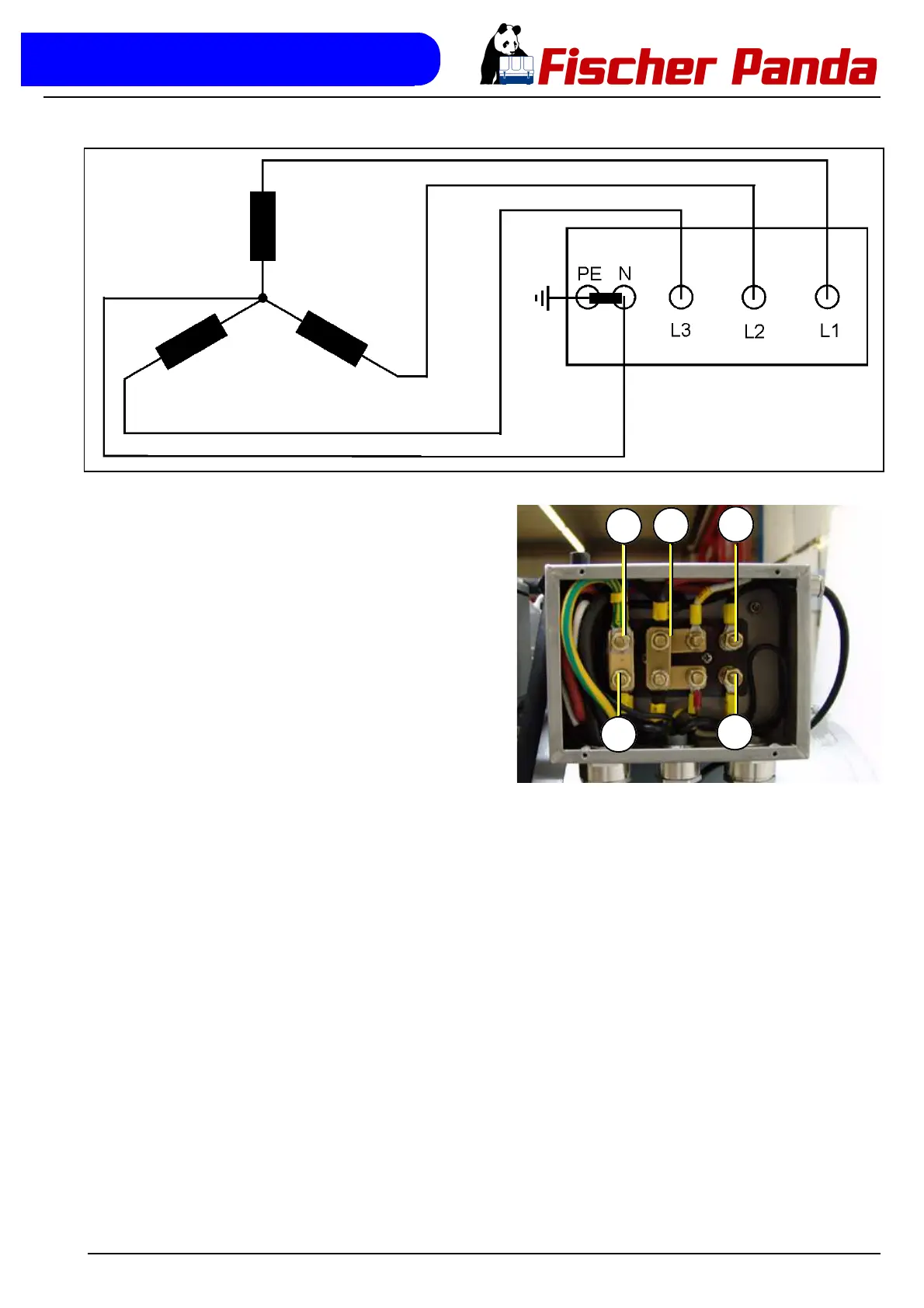

Fig. 7.5.0-4: Wiring diagram HP3 - 400V / 50 Hz
Fig. 7.5.0-5: Generator power terminal box 120 V / 60 Hz Generator Power Terminal Box 120 V / 60 Hz
In these terminal boxe there are the electrical connection points for the AC
generator. Here is also the bridge for the protective grounding of the genera-
tor. The cover may only be removed, if it is guaranteed that the generator
cannot be inadvertently started.
Sample Picture
PE
Z1.2
N
HOT
Z2.2
