Generator Faults
Seite/Page 152 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 7: Generator Faults 22.3.11

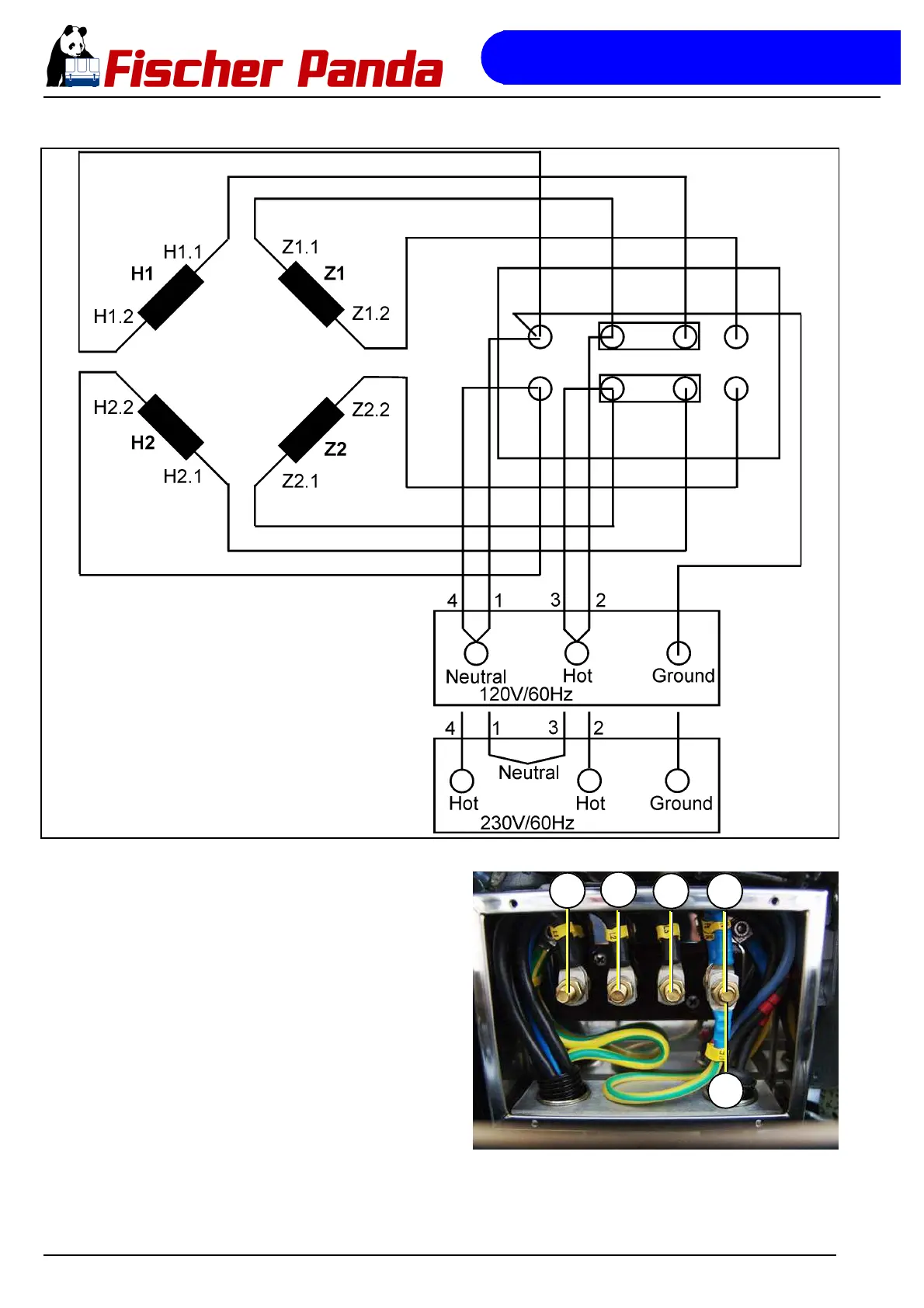

Fig. 7.5.0-6: Wiring diagram HP1 - 120 V / 60 Hz
Fig. 7.5.0-7: Generator power terminal box 240 V / 60 Hz Generator Power Terminal Box 240 V / 60 Hz (208 V / 60 Hz)
In these terminal boxe there are the electrical connection points for the AC
generator. Here is also the bridge for the protective grounding of the genera-
tor. The cover may only be removed, if it is guaranteed that the generator
cannot be inadvertently started.
Sample Picture
L1
L3
PE
L1
N
