Generator Faults
22.3.11 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 7: Generator Faults Seite/Page 153

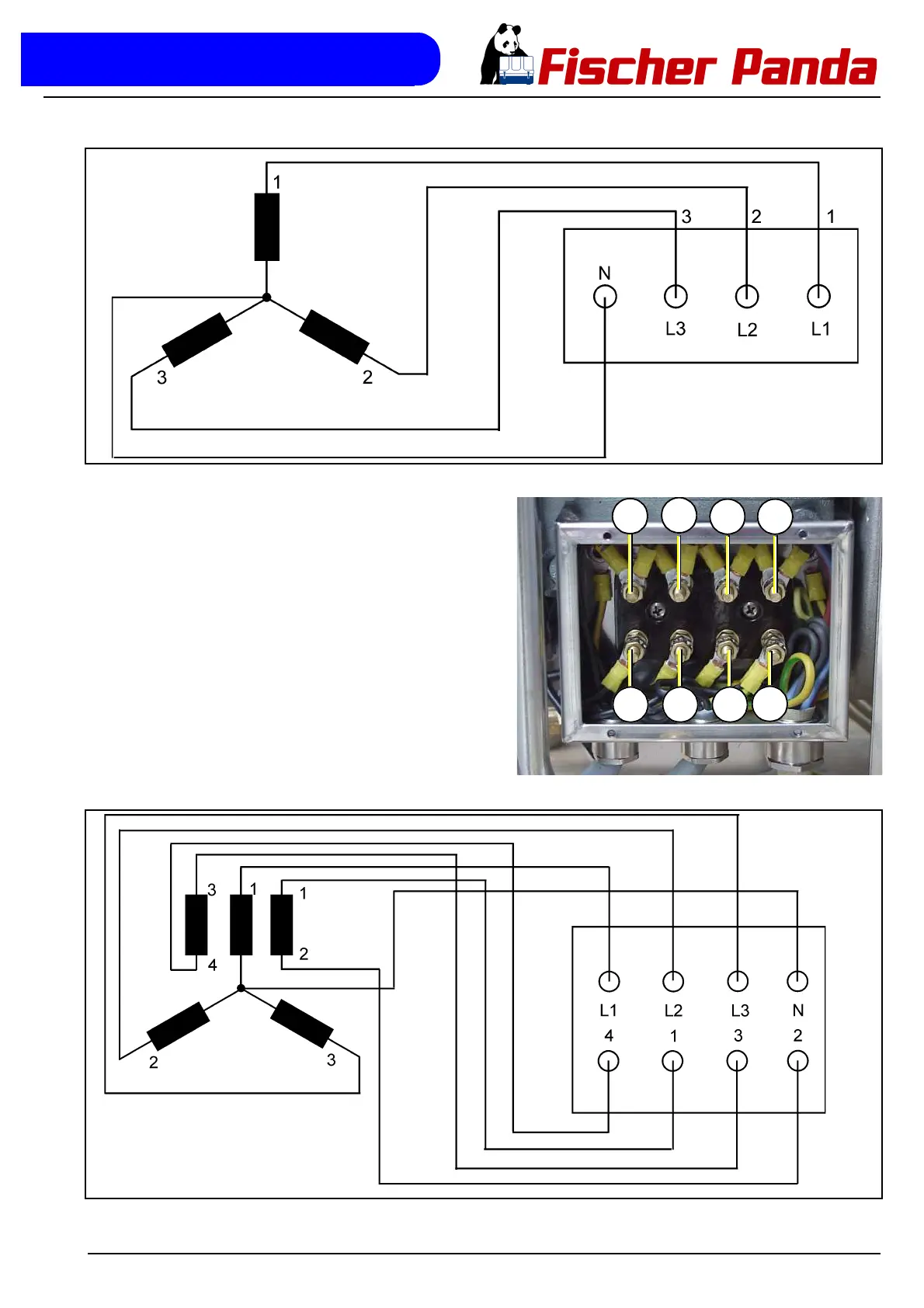

Fig. 7.5.0-8: Wiring diagram HP3 - 240 V / 60 Hz
Fig. 7.5.0-9: Generator power terminal box DVS Generator Power Terminal Box DVS - 120 V + 240 V / 60 Hz
In these terminal boxe there are the electrical connection points for the AC
generator. Here is also the bridge for the protective grounding of the genera-
tor. The cover may only be removed, if it is guaranteed that the generator
cannot be inadvertently started.
Sample Picture
Fig. 7.5.0-10: Wiring diagram DVS - 120 V + 240 V / 60 Hz
4
3
33
3
N
1
11
1
2
22
2
L1 L1 L1
