General operation
22.3.11 Panel Generator Control P6+ RE0703_Kunde_eng.R06.1 - Kapitel/Chapter 11: General operation Seite/Page 191
11. General operation
11.1 Panel Generator Control

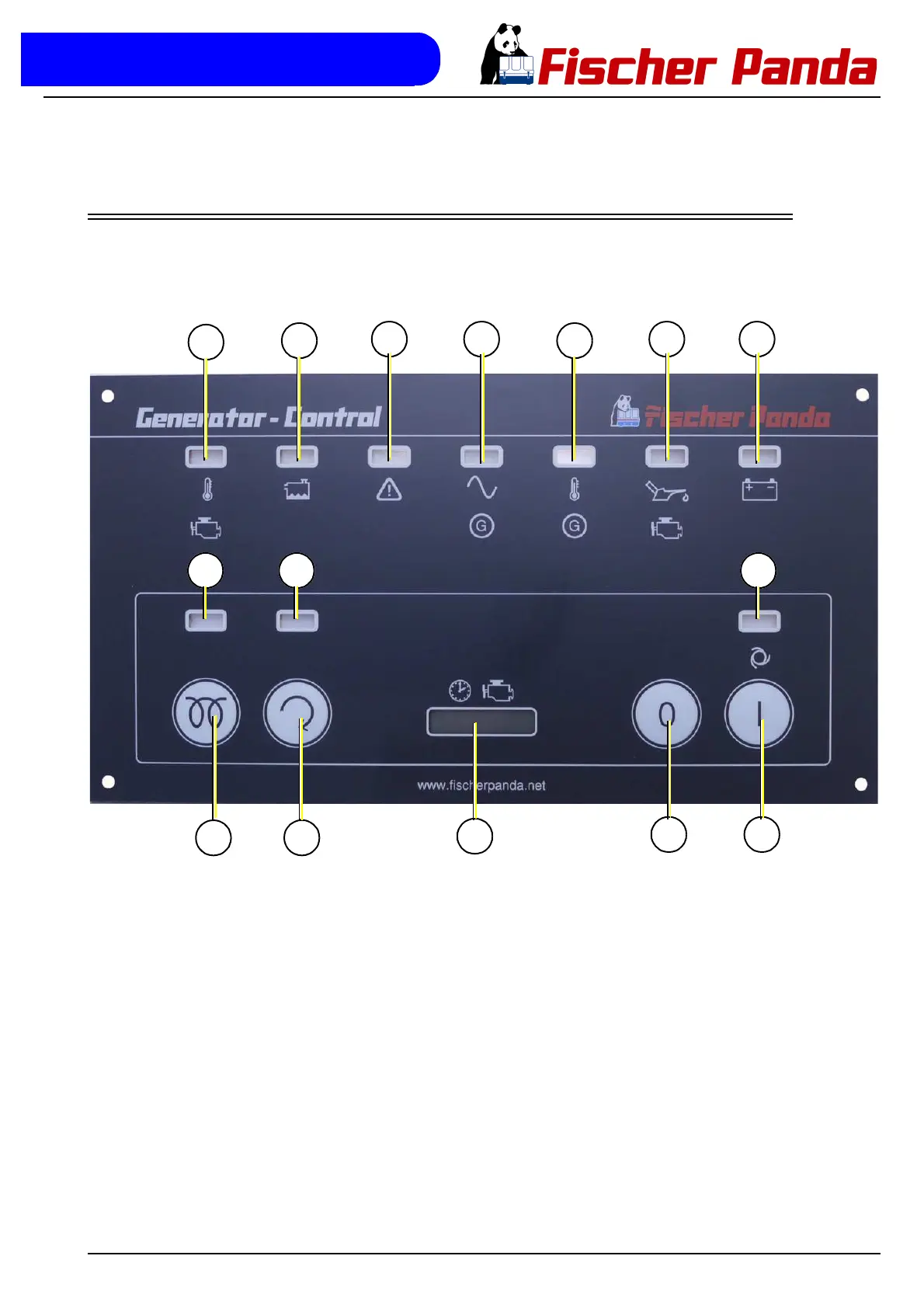

Fig. 11.1-1: Panel front
Fischer Panda Art. No. 21.02.02.009H
1
LED green: normal operation mode, LED red: fault, LED yellow: warning, LED orange: active
01
02
03 04
11
12
14 15
13
05
06 07
08 09 10
01. LED for coolant temperature red
1
02. LED for waterleak red/yellow
1
(sensor optional)
03. LED for AC-voltage fault red/yellow
1
04. LED for AC-voltage ok green
1
05. LED for winding temperature red
1
06. LED for oil pressure red
1
07. LED for battery charge voltage fault green/red
1
08. LED for pre-glow „heat“ orange
1
09. LED for Generator „start“ green
1
10. LED for Generator „stand-by“ green
1
11. Push button for pre-glow „heat“
12. Push botton for Generator „start“
13. Operating hours counter
14. Push button panel „off“
15. Push button panel „on“
