Fischer Panda 6500 PMS - Sensors and Switches for Operation Surveillance

The Panda Generator
Seite/Page 54 Panda_6500_7mini_PMS_eng.R01 - Kapitel/Chapter 4: The Panda Generator 22.3.11

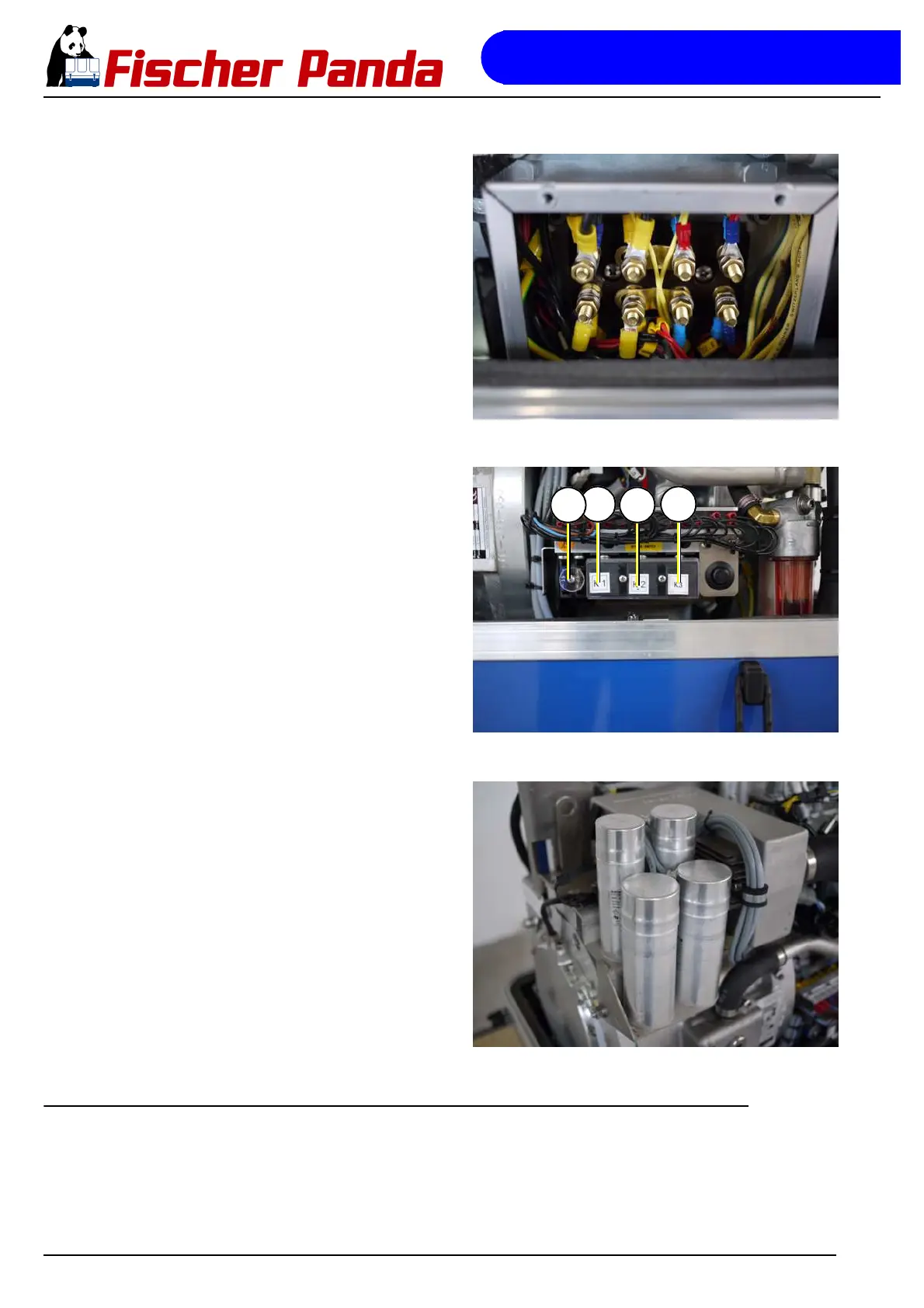

Fig. 4.3.6-6: Generator power terminal box Generator power terminal box
Located in this box are the electrical connection points for the
AC generator.
Fig. 4.3.6-7: Terminal block Terminal block for remote control cable with fuses and
power relays
see wiring diagram
Fig. 4.3.6-8: Excitation capacitors Excitation capacitors
4.3.7 Sensors and Switches for Operation Surveillance
K3K1
K2F
