Fischer Panda 6500 PMS - View from above

The Panda Generator
Seite/Page 44 Panda_6500_7mini_PMS_eng.R01 - Kapitel/Chapter 4: The Panda Generator 22.3.11
4.2.5 View from above

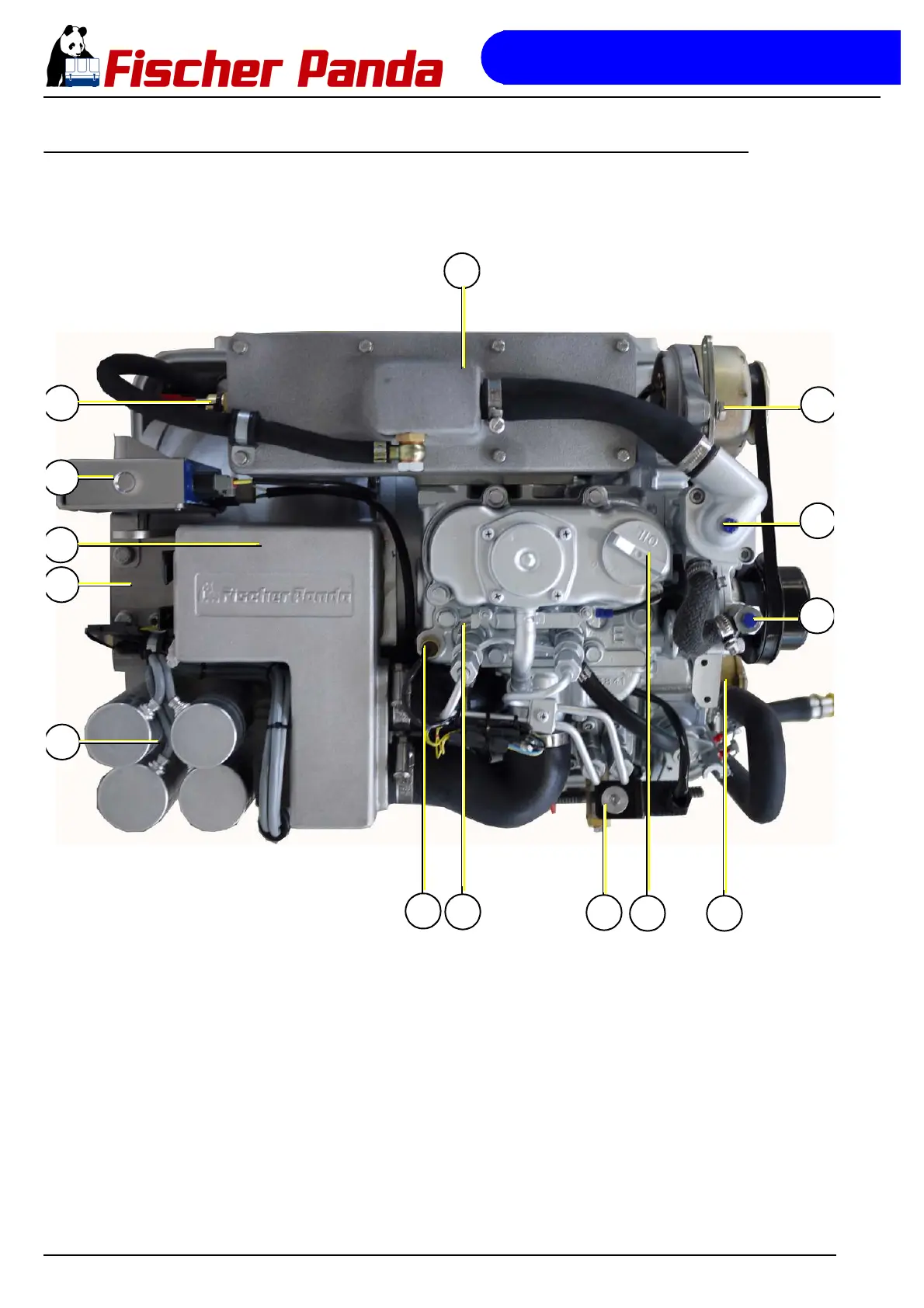

Fig. 4.2-1: View from above
14
06
01
03
04
05
07
08
09 10
11
12
13
02
01) Thermo switch at exhaust elbow
02) Mini VCS
03) Air filter housing with air filter mat
04) Lifting eye
05) Capacitors
06) Thermo switch at cylinder head
07) Cylinder head
08) Fuel solenoid valve
09) Oil filler cap
10) Raw water impeller pump
11) Venting screw at fresh water pump
12) Venting screw at thermostat housing
13) DC alternator
14) Water cooled exhaust elbow
