Fischer Panda 6500 PMS - Back View

The Panda Generator
22.3.11 Panda_6500_7mini_PMS_eng.R01 - Kapitel/Chapter 4: The Panda Generator Seite/Page 43
4.2.4 Back View

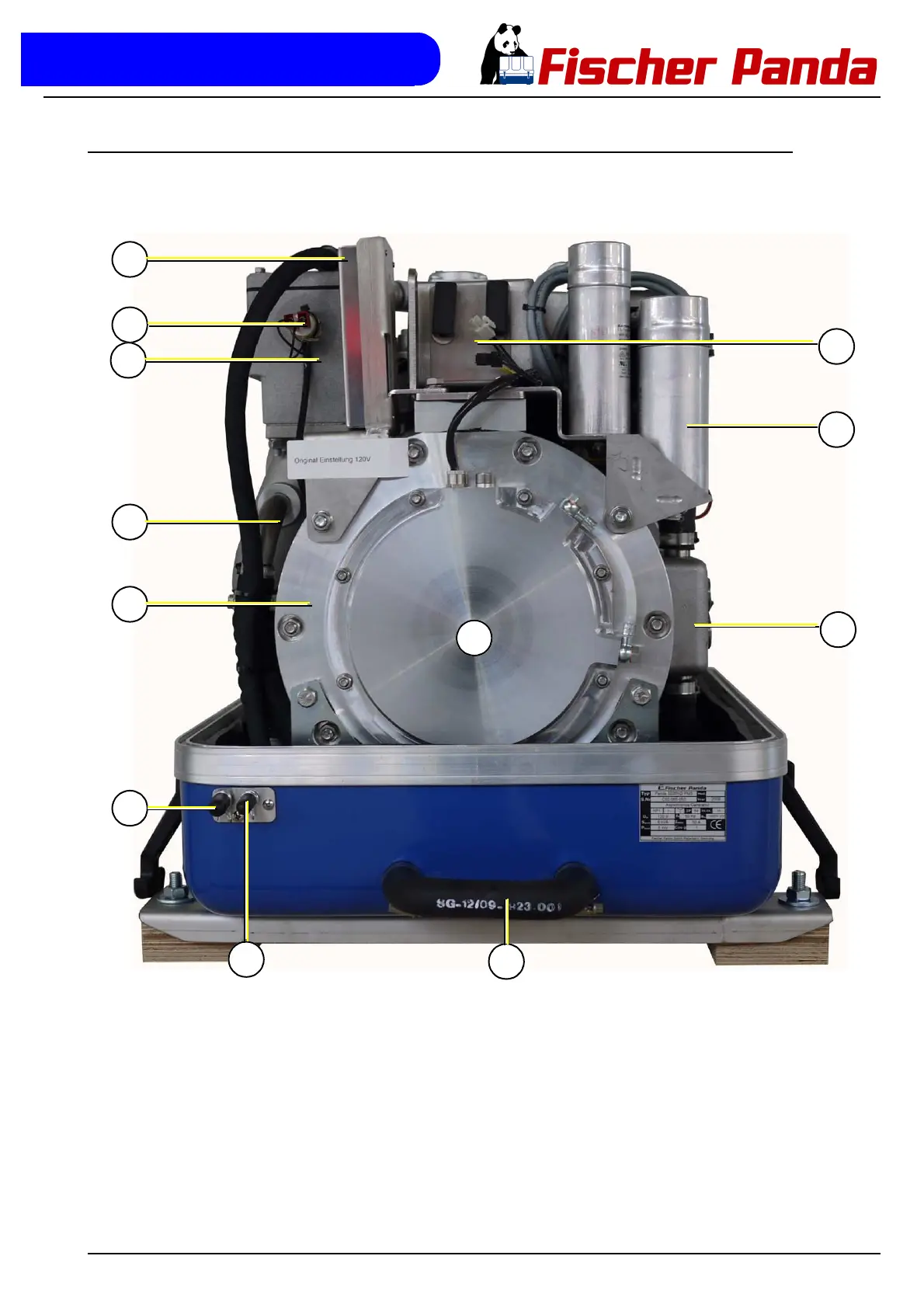

Fig. 4.2-1: Back view
01
02
06
03
04
05
07
10
11
12
08
09
01) Mini VCS
02) Thermo switch at exhaust elbow
03) Water cooled exhaust elbow
04) Raw water injection nozzle
05) Generator front cover
06) Oil cooled ball bearing
07) Connection from external expansion tank fresh water (lower
connection)
08) Connection to external expansion tank fresh water (upper Con-
nection)
09) Connection to external venting valve raw water
10) Coolant connection block
11) Capacitors
12) Air filter housing with air filter mat
