Installation Instructions
Seite/Page 92 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 5: Installation Instructions 22.3.11
5.9.3 AC-Control Box with VCS and ASB - not all models
The required capacitors for the excitation of the generator are located in the AC-Control box, as well as the electro-
nic control for voltage/speed regulation (VCS) and the starting current re-inforcement (ASB). The AC-Control box
must be connected by electrical wires (high voltage and low-voltage) to the generator.
The front panel must always be closed, since the AC-Control box produces 400 V during operation.
The AC-Control box must be electrically connected to the generator (high and low voltage).
Danger - High voltage ATTENTION! Before working on the System read the "Section
Safety Instructions in this Manual".

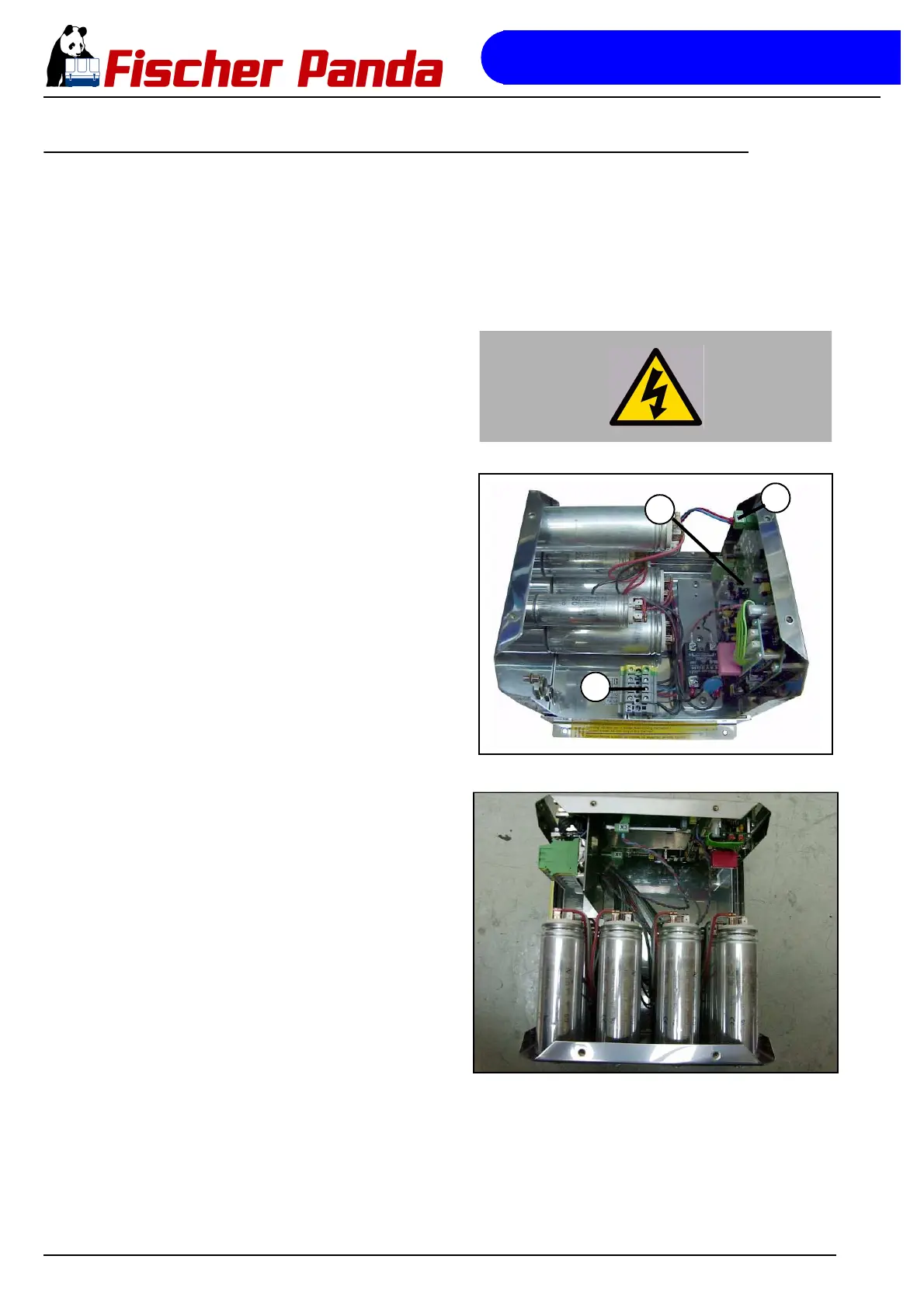

Fig. 5.9.3-1: Opened AC Control Box AC-Control Box
Inlet VCS-connection (X1)
Inlet measuring voltage (X3)
Excitation cable to generator (X4)
Fig. 5.9.3-2: Opened AC Control Box from Panda 30 upwards AC-Control Box - from Panda 30 upwards
1
3
2
