The Panda Generator
Seite/Page 42 Panda_6500_7mini_PMS_eng.R01 - Kapitel/Chapter 4: The Panda Generator 22.3.11
4.2.3 Front View

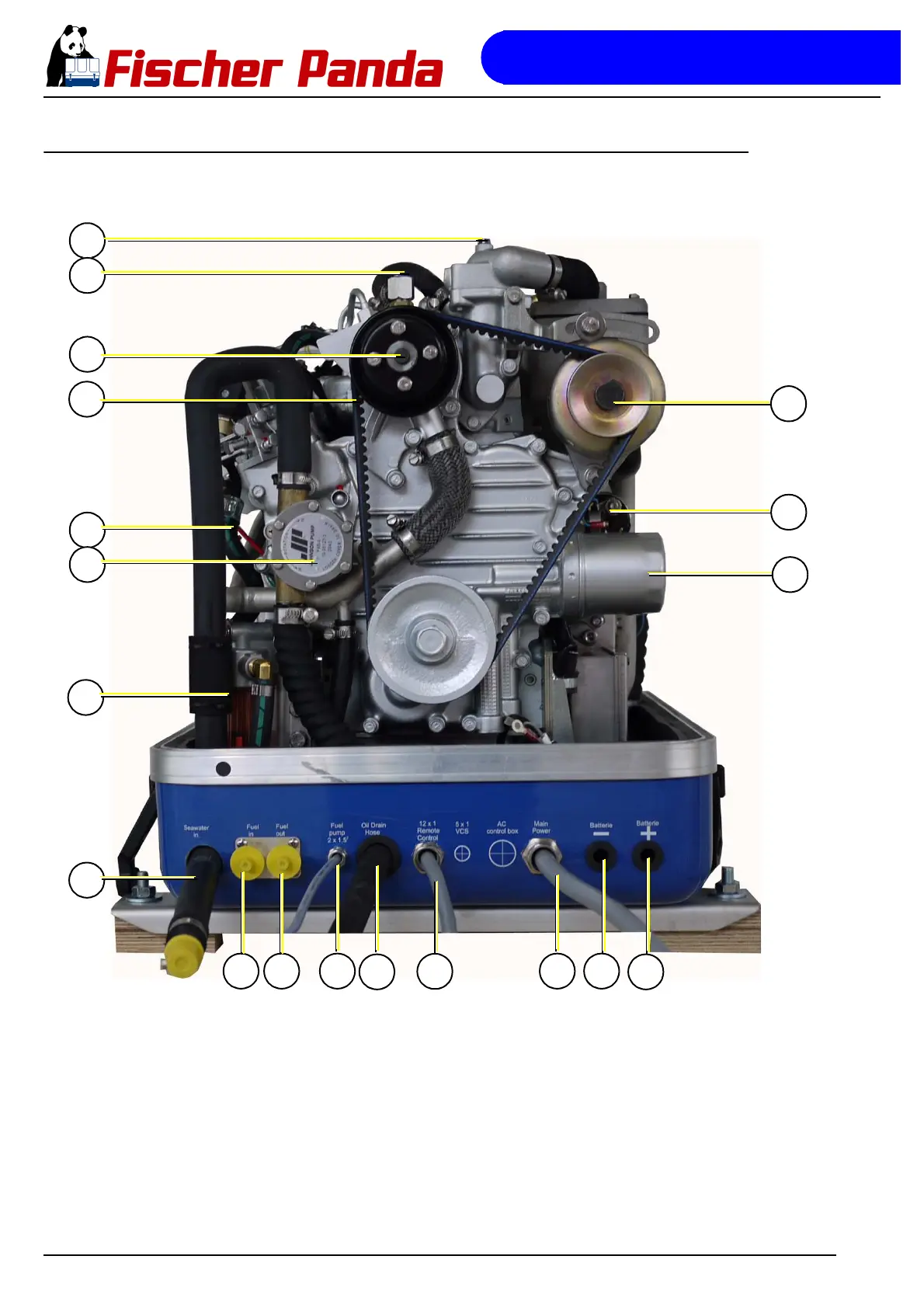

Fig. 4.2-1: Front view
1509 10 11
01
02
03
05
06
07
08
14
17
19
13
18
04
12 16
01) Thermostat housing with venting screw
02) Ventilation screw fresh water pump
03) Fresh water pump with pulley
04) Tooth belt
05) Oil dipstick
06) Raw water impeller pump
07) Fuel filter
08) Raw water in
09) Fuel in
10) Fuel out
11) Cable for fuel pump
12) Oil drain hose
13) Cable for remote control panel
14) Cable for main power out
15) Passage for battery (-) cable
16) Passage for battery (+) cable
17) Oil filter
18) Connection point battery (+)
19) DC alternator
