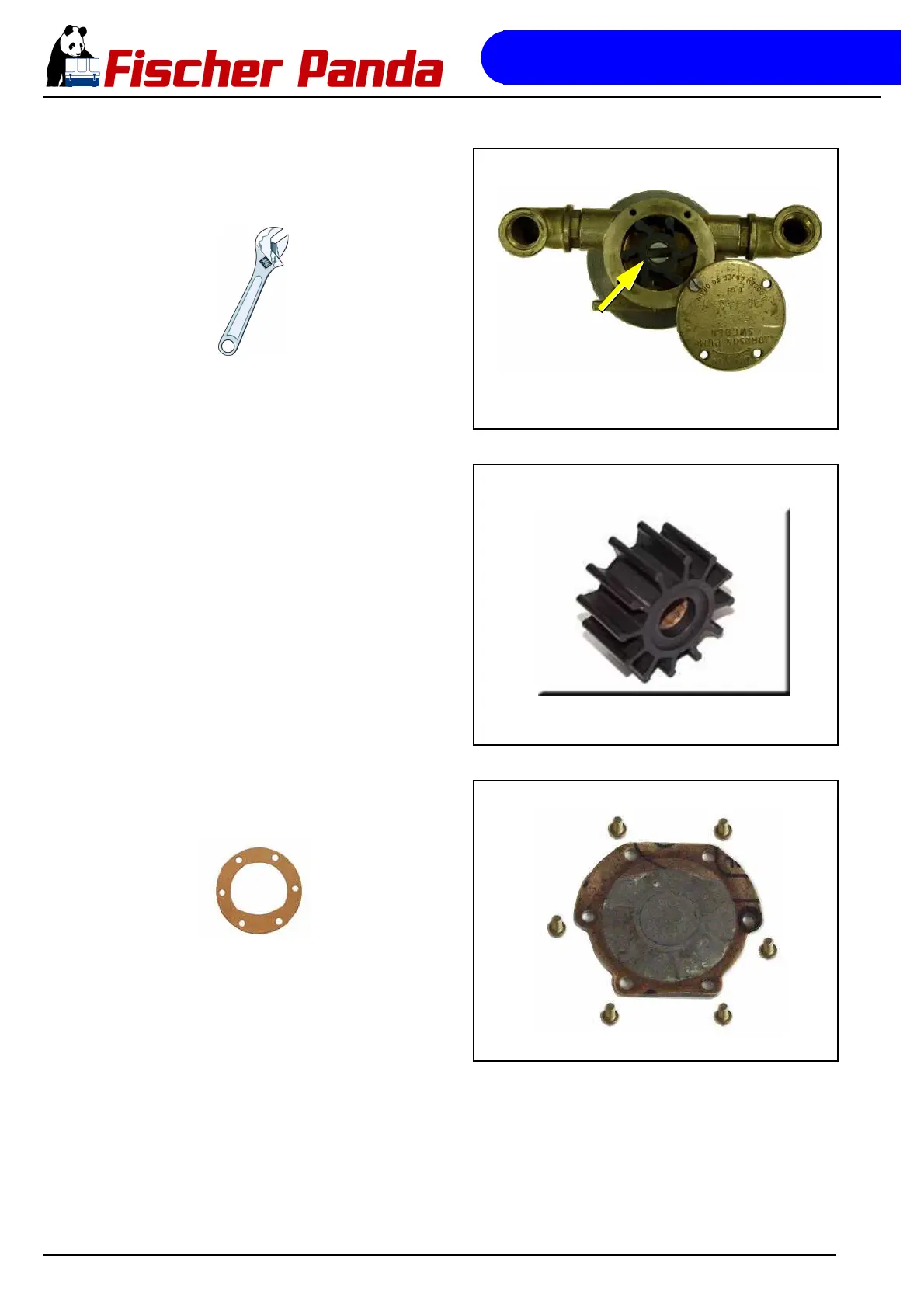

Fig. 6.14.1-4: Impeller
Remove the impeller from the shaft by means of multi grip
pliers.
Mark the impeller, to make sure that it is in the correct position
when re-installation is carried out.
Sample Picture
Fig. 6.14.1-5: Impeller
Check the impeller for damage and replace it if necessary.
The impeller should have been lubricated with glycerine or with a non-mine-
ral oil based lubricated e.g. silicone spray, before re-insertion into the hou-
sing. Attention: This is very important, because the impeller can quickly be
damaged.
Sample Picture
Fig. 6.14.1-6: Cover Pump Shaft
Attach the impeller to the pump shaft (if the old impeller is re-
used, initially check the marking).
Fastening the cover and use a new seal.
Sample Picture
