The Panda Generator
Seite/Page 46 Panda_6500_7mini_PMS_eng.R01 - Kapitel/Chapter 4: The Panda Generator 22.3.11

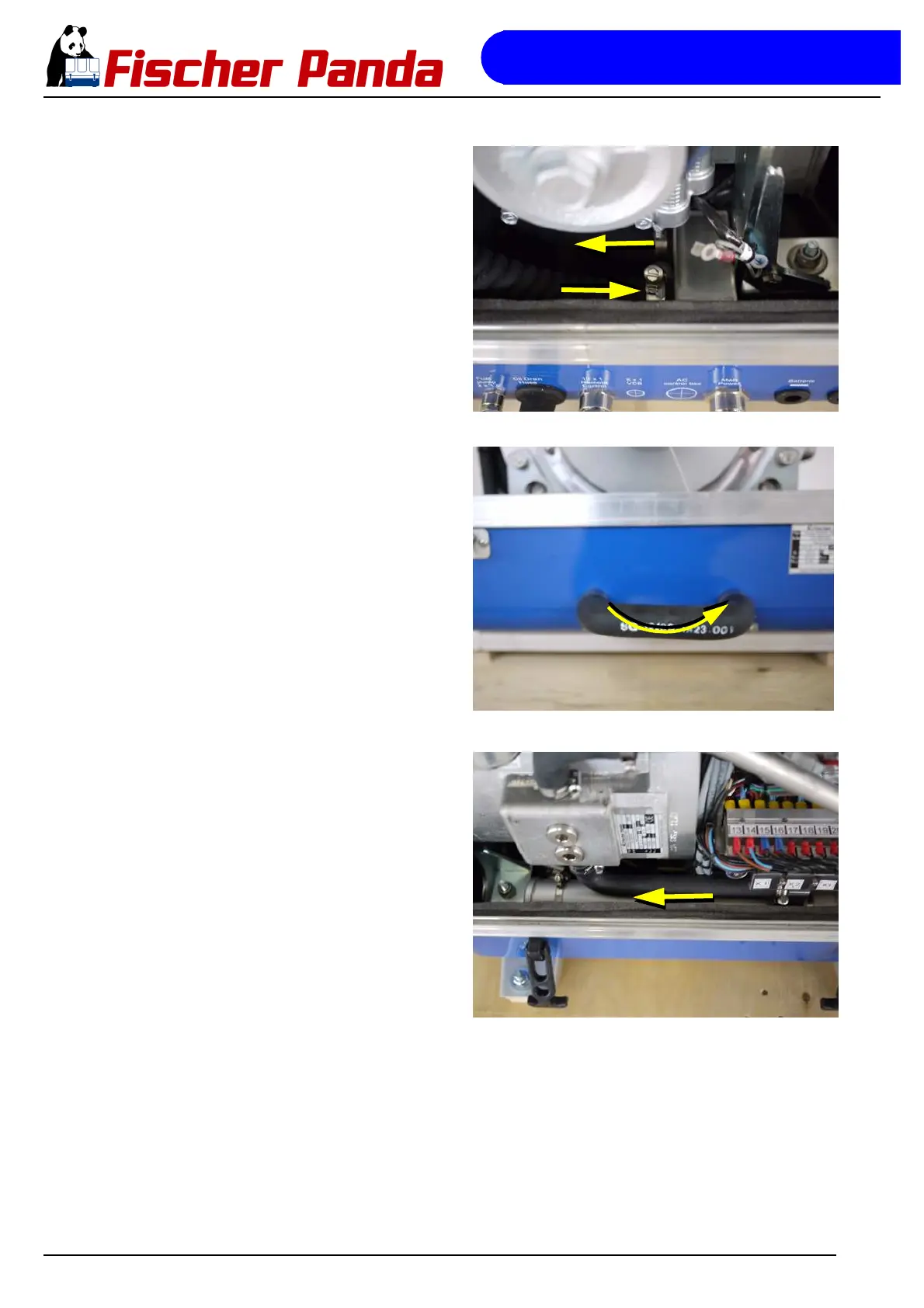

Fig. 4.3.2-3: Impeller Filter Impeller filter
If the impeller breaks, the parts will be caught by the impeller
filter.
Fig. 4.3.2-4: Connection external ventilation valve Ventilation valve
A siphon must be installed if the generator sinks below the
water line because of the rocking of the boat, even if it is only
for a short period of time.
Fig. 4.3.2-5: Heat exchanger Heat exchanger
The heat exchanger separates the raw water system from
the fresh water system, so that the generator components do
not have contact with the raw water circulation system.
