Installation Instructions
22.3.11 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 5: Installation Instructions Seite/Page 77

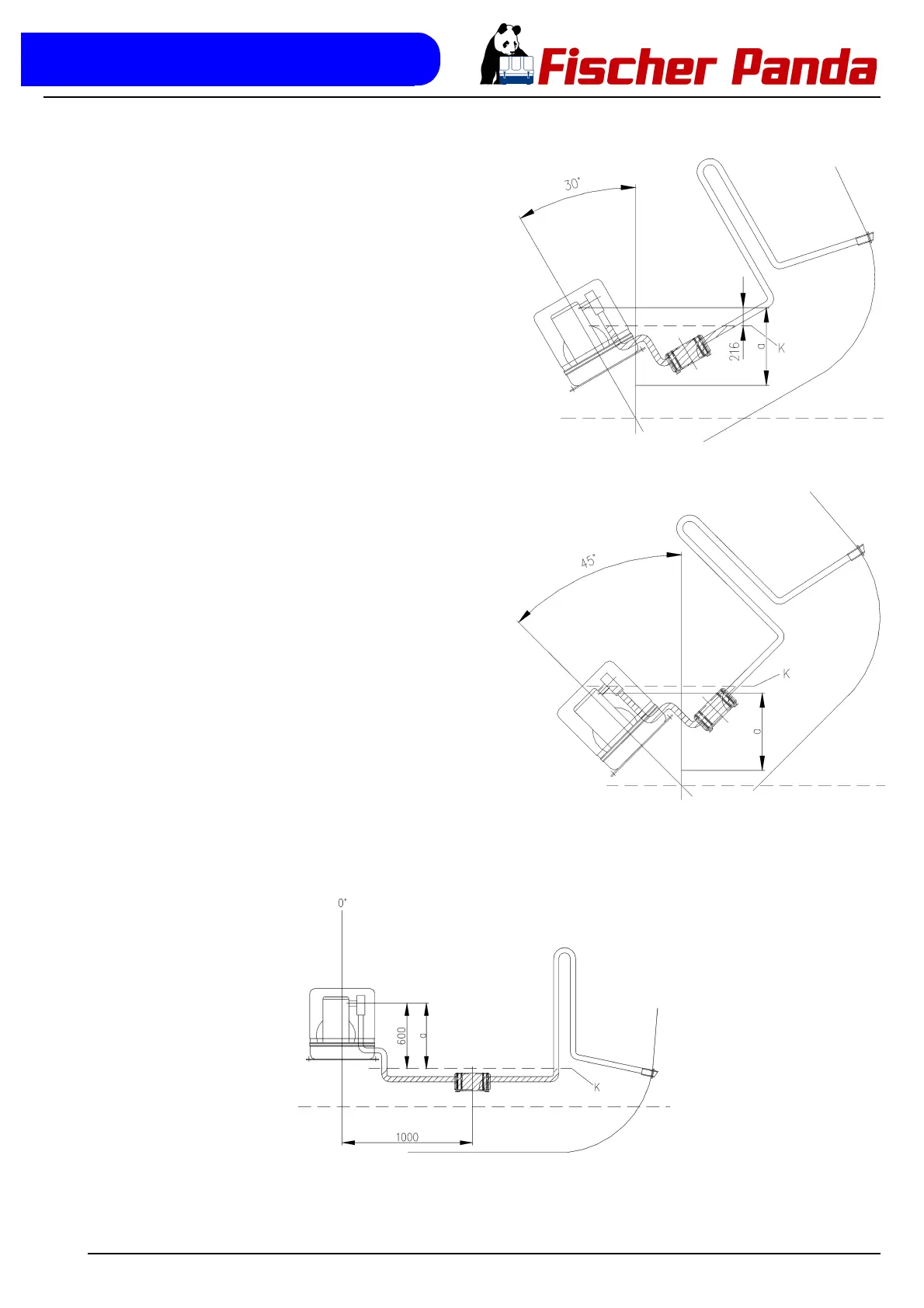

Fig. 5.6.5.3-3: Tilted position 30 degreed Tilted position 30 degreed
The distance between the hydrostatic head and the critical
point at the exhaust elbow is only 216 mm. This means that
in a tilted position of 30 degrees you already face the highest
risk of sea water sloshing into the combustion chamber.
Fig. 5.6.5.3-4: Tilted position 45 degreesTilted position 45 degrees
The water level is now at the same height as the critical point
at the exhaust elbow. If the ship is sailed in a tilted position of
45 degrees with an installation like this, the infiltration of coo-
lant into the combustion chamber is inevitable. Irreparable
damages are preprogrammed.
B) Installation distance between exhaust water collector and generators’ center line 1000 mm
Fig. 5.6-5: Exhaust water collector, 1000 mm next to center line
