Installation Instructions
22.3.11 Panda PMS 8.000 NE - 42 NE Manual.R05 - Kapitel/Chapter 5: Installation Instructions Seite/Page 81

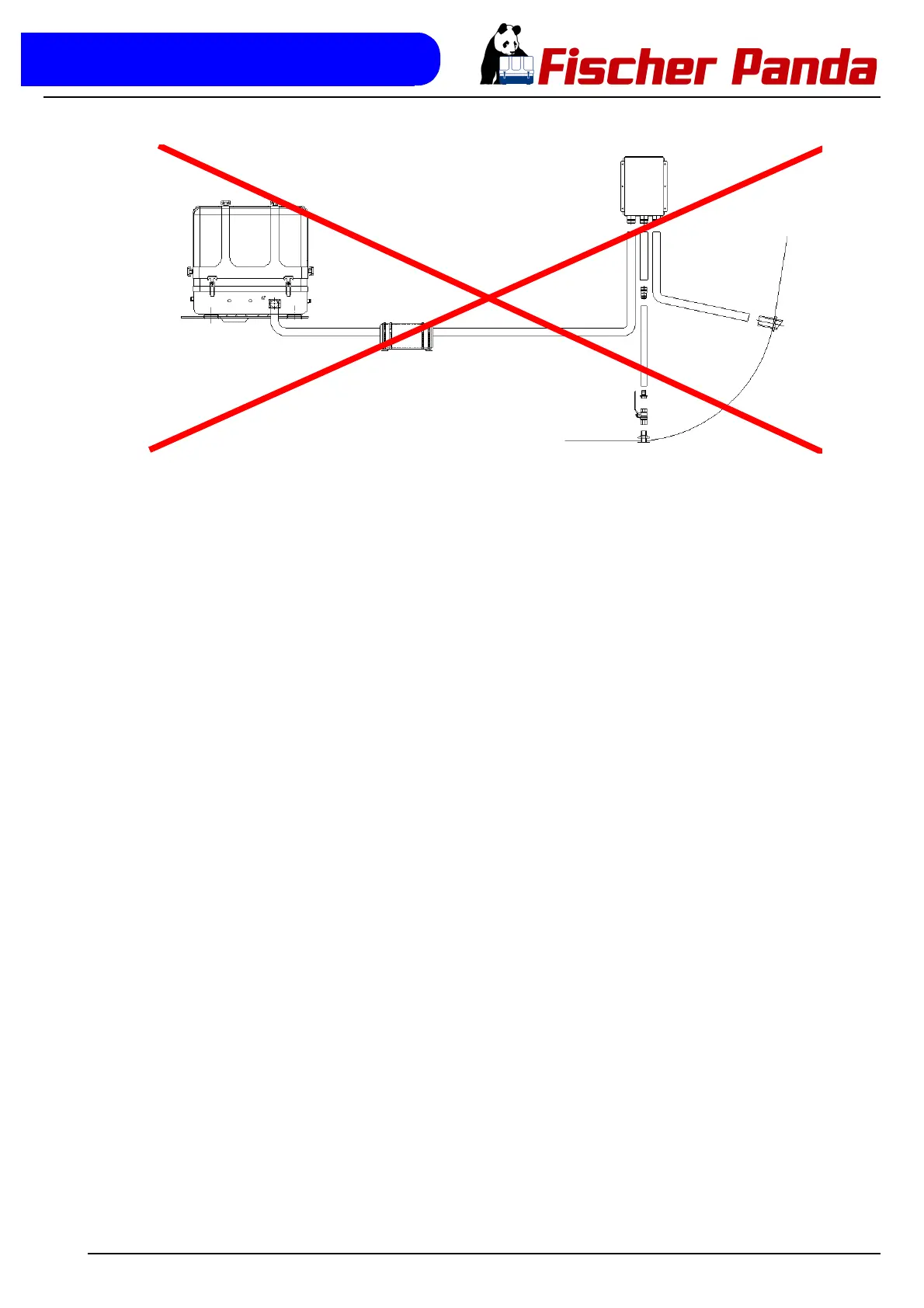

Fig. 5.6.7-2: Expample for an unfavourable Installation
Example of an unfavourable installation:
- Water lock not far enough below the lowest level of the generator
- Distance water lock to exhaust/water separator too large
