7. remove the scraper from the roller on the side of the conveyor belt involved (section 4.5 and section 4.5.2).
8. remove the chain that moves the conveyor belt drive roller via the gears ref. 10 (see section. 4.7)
9. remove the tube ref. 11 by simply removing the screw ref. 12 from the back of the upright on the controls
side (photo G)
10. remove the casing on the opposite side and remove the drive belt (see section 4.3.2 or 4.3.3)
11. unscrew and remove the screw ref. 13 and remove the pulley ref. 14 from the shaft ref. 15 (photos H - I)
12. remove the screws ref. 16 from the support ref. 17 (photo I) and the screws ref. 18 from the support ref. 19
on the opposite side (photo J).
13. position an aluminium alloy or steel point ref. 20 with a plastic end (head diameter 19 mm) against the end of
the drive roller shaft ref. 21 taking care not to damage the ring of the bearing. Using a strong hammer, hit the
head of the point until the shaft ref. 21 is removed from the support bearing ref. 17. Hold the support to
prevent it from falling and keep it in a safe place (photos K - L)
14. loosen the conveyor belt completely (see section 4.4)
15. remove the drive roller ref. 22 from the controls side and place it in a safe place (photos M - N)

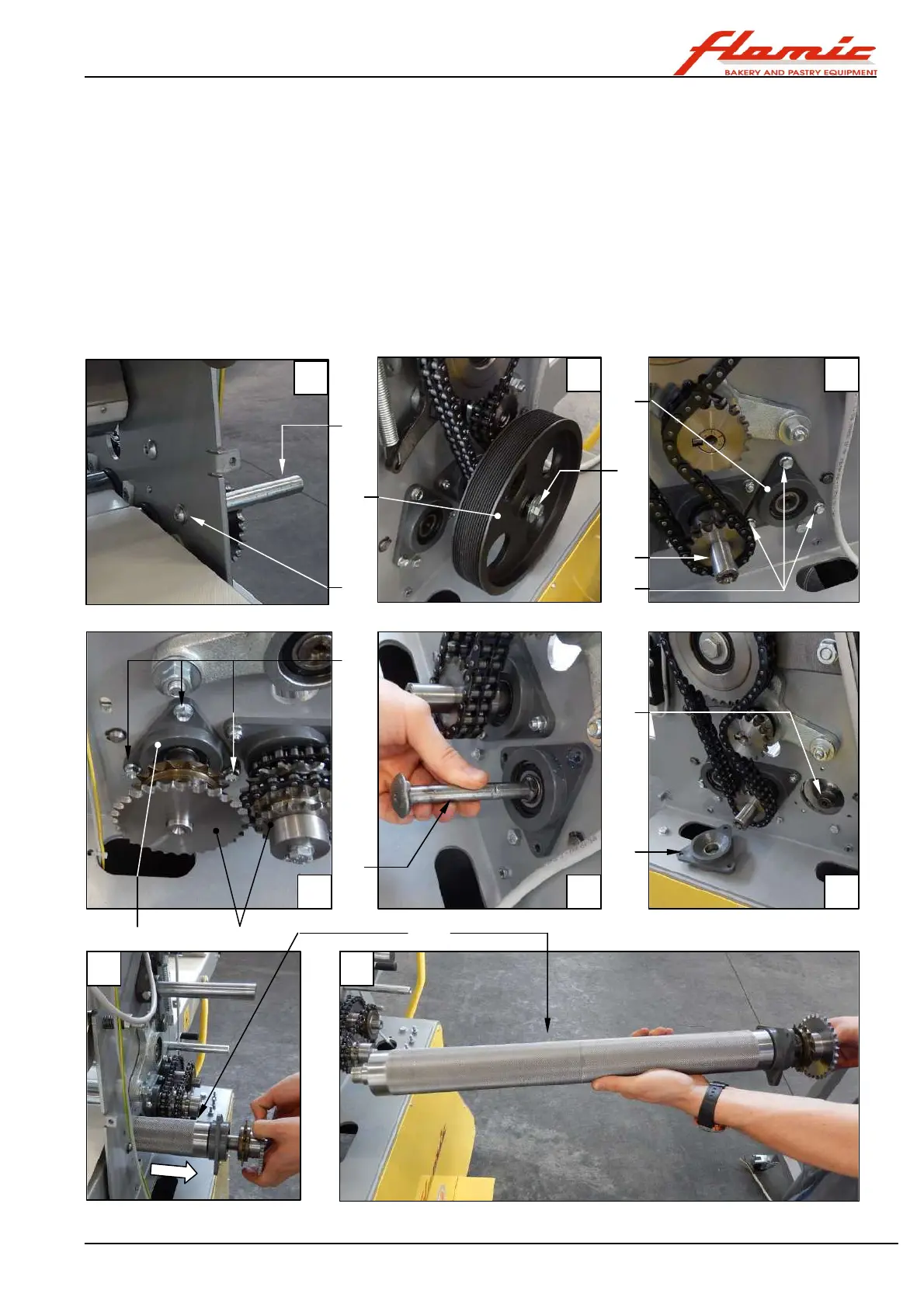

Continued Figure 37 - SF450 and SF500: Removing the tables and replacing conveyor belts
