16. While one person supports the bench in a central position, so that it doesn’t fall as soon as it is released, the first
operator (skilled), using needle nose snap ring pliers, removes the snap ring ref. 23 (photo O). He then pushes the
rod ref. 24 inwards (photo P), removes it from the other side (photo Q) and puts it and the spacers ref. 33 and ref.
37 Figure 38 to one side. He then immediately helps the other operator to support the table.
17. remove the table and place it on a sufficiently large surface as shown in photo R
18. remove the residue collection tray ref. 25 (see section 3.8)
19. unscrew the two side screws ref. 26 and relative nuts ref. 27 and remove the table support ref. 28 (photos R - S).
Make a note of the position of the washers and spacers ref. 30 and 31 (photo T), because they have to be
reinstalled in the same position.
20. rest the table on its side, as shown in photo U (hold it tightly to prevent it falling and causing injury or severe
bruising). Remove the conveyor belt ref. 29 and replace it with a new one.

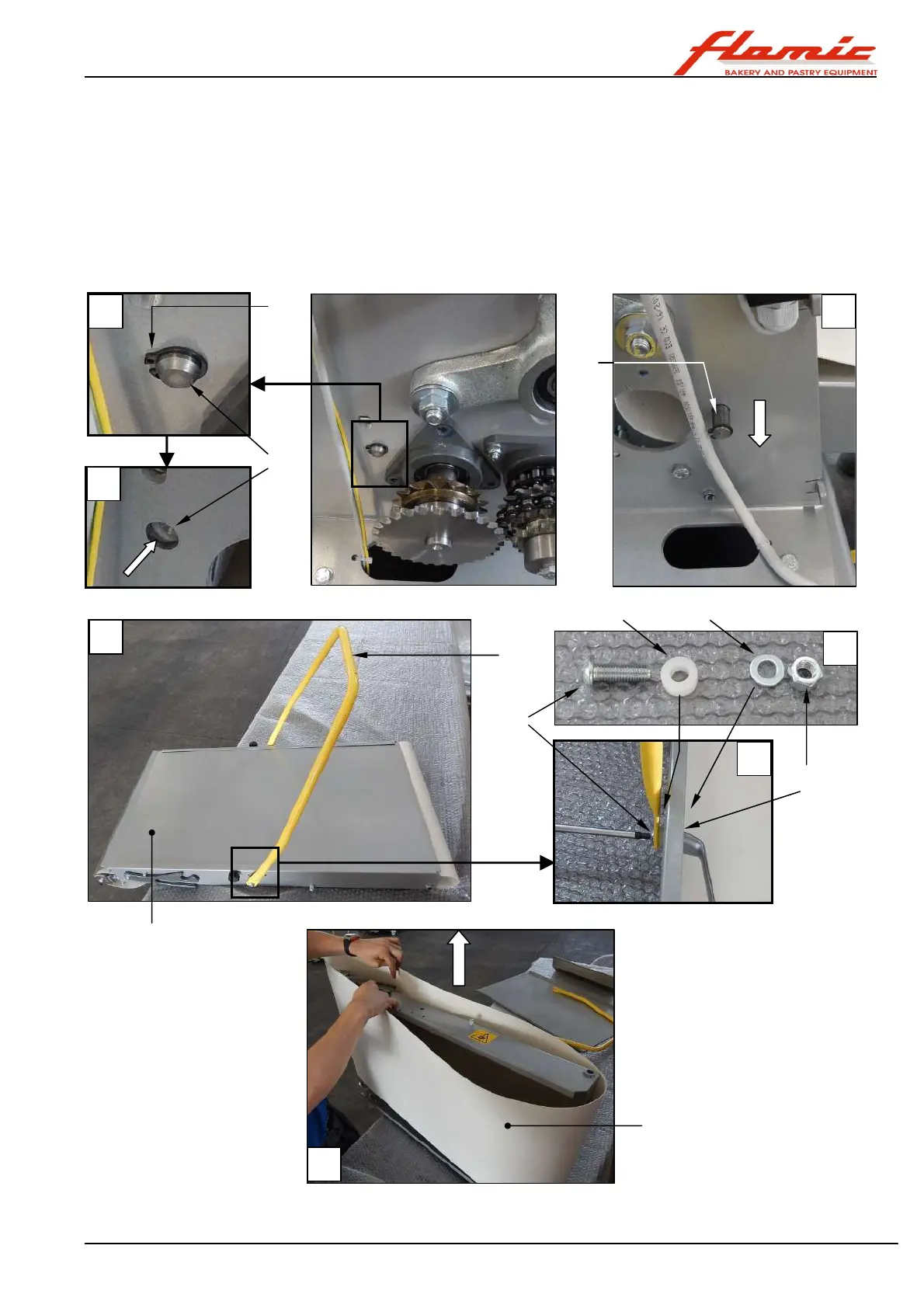

Figure 37 - SF450 and SF500: Removing the tables and replacing conveyor belts
O
P
23
25
24
Q
R
24
26
27
S
T
28
29
30 31
U
