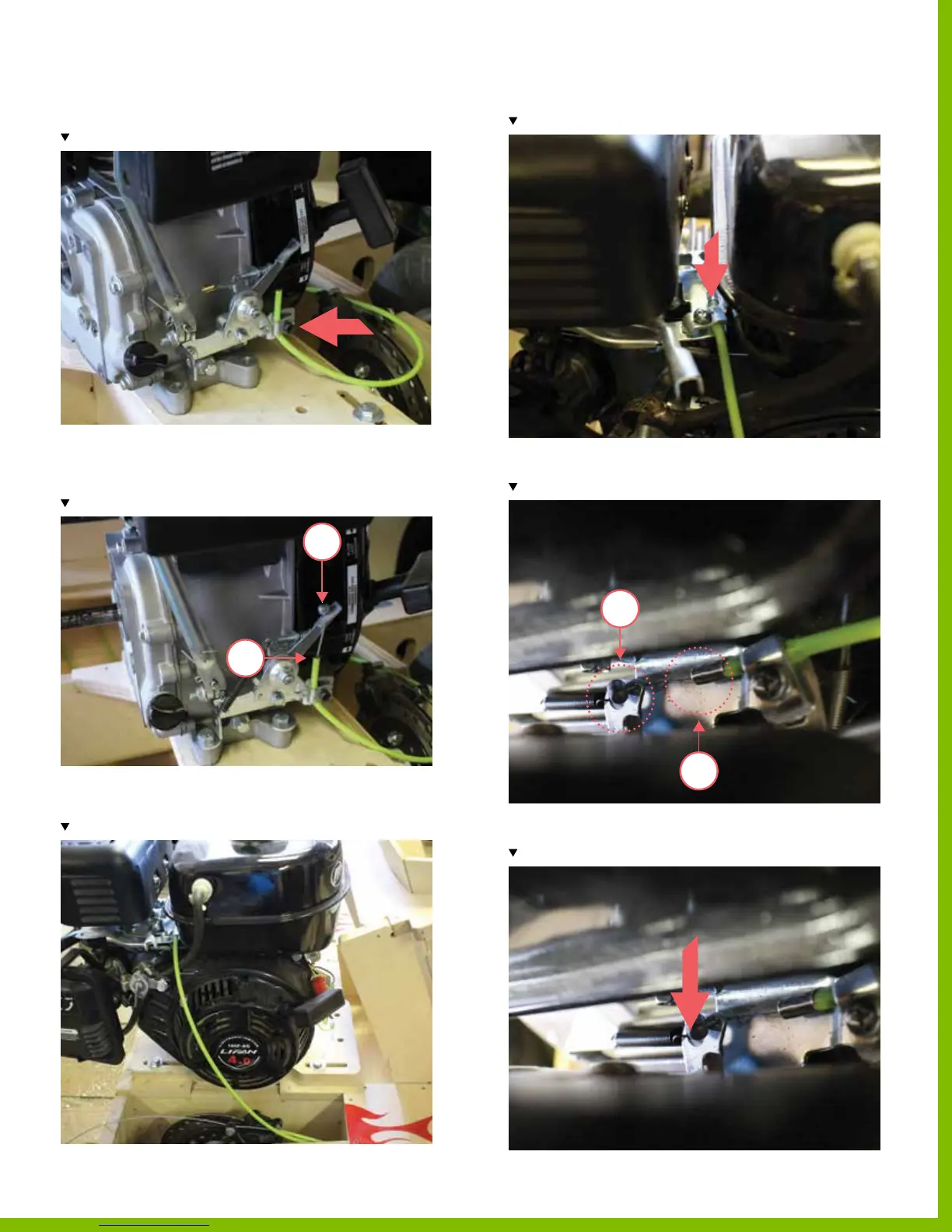

22. Secure the green cable loosely in the
throttle control linkage.
Note the location of the green cable.
23. Feed the throttle control cable through the hole
located on the throttle control linkage and then into the
green cable.
Note the location of the green cable.
24. For the next installation instruction, continue to step 32.
25. Thread the green cable into the right side of the engine.
Note the location of the green cable.
26. Secure the green cable loosely in the clamp.
Note the location of the green cable.
27. Feed the throttle control cable through the hole located
on the throttle linkage.
Note the locations of the throttle control cable.
28. Install the extension spring, by hooking one end to the
hole located on the throttle linkage.
Note the location of the extension spring.
2
1
1
2
55
