● Make sure that there is no contact between the fan and the air guide cover.
● Note that the cooling effect can be significantly impaired if the fan is dirty or if the surface
of the housing is covered with dust or contaminants that act as an insulating layer.
Clean the fan and the gear unit. Observe the cleaning information in chapter Maintenance
and servicing work (Page 87).

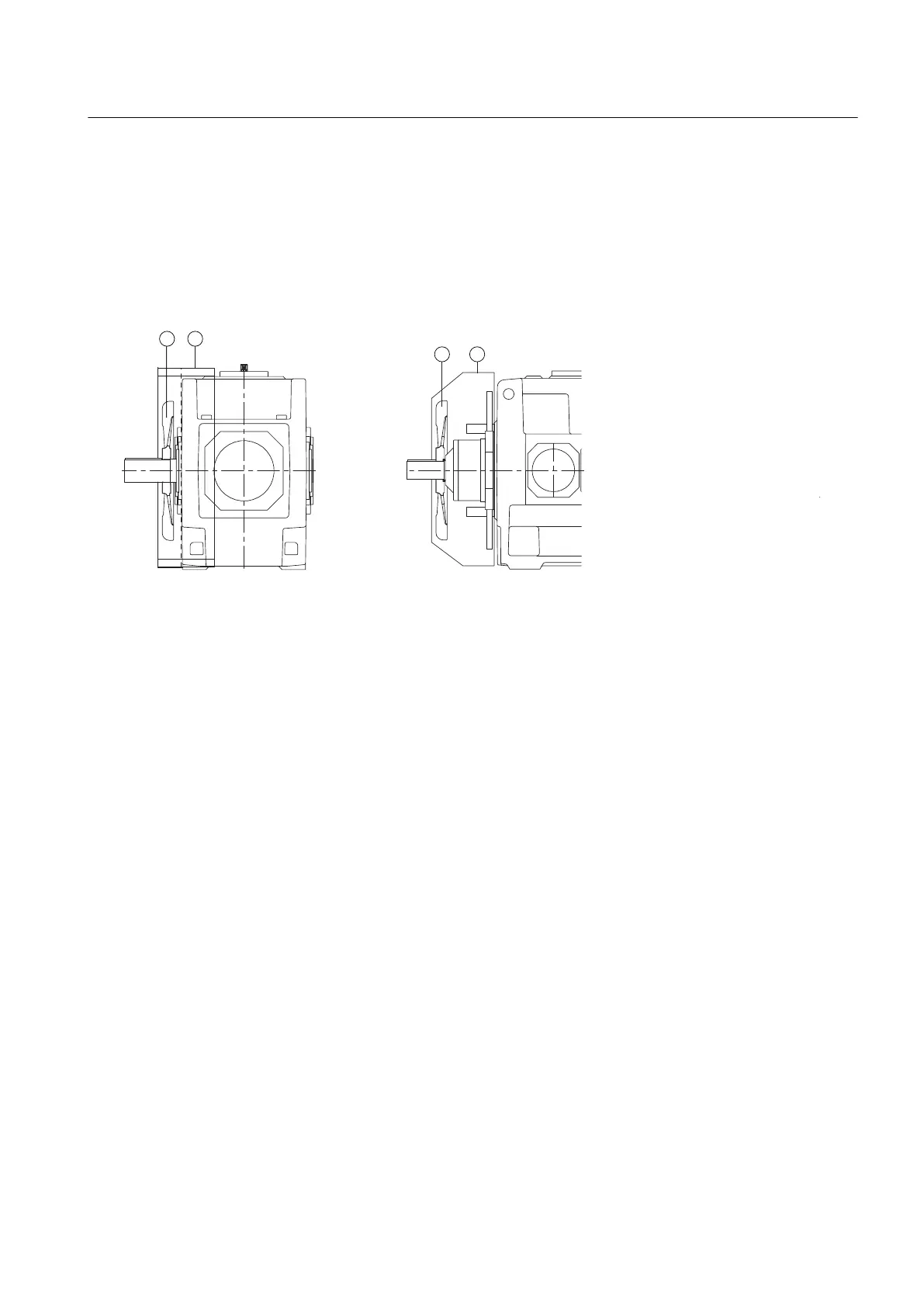

A fan mounted on a gear unit is illustrated in the diagram below:
① Fan ② Air guide cover
Figure 3-9 Fan mounted on a gear unit
Further information
Further information and a detailed illustration of the gear unit and the position of the mounted
components can be found in the dimension drawings in the complete documentation for the
gear unit.
3.7.2 Cooling coil
Introduction
The gear unit can be equipped with a cooling coil in the oil sump. The cooling coil is connected
to a cooling water supply. The cooling water connection must be provided by the operator. The
cooling water can be fresh water, sea water or brackish water.
Principle of operation
Heat from the gear unit oil is transferred to the cooling water as it flows through the cooling
coil.
Description
3.7 Cooling
Gear unit 5118en
Operating Instructions 10/2017 31
