FLENDER H2SH 24 - Figure 4-3 Position of the Attachment Points for Gear Units of Type H2 SH 24 (SOND 622); Figure 4-4 Position of the Attachment Points for Gear Units of Type M1 S X 315

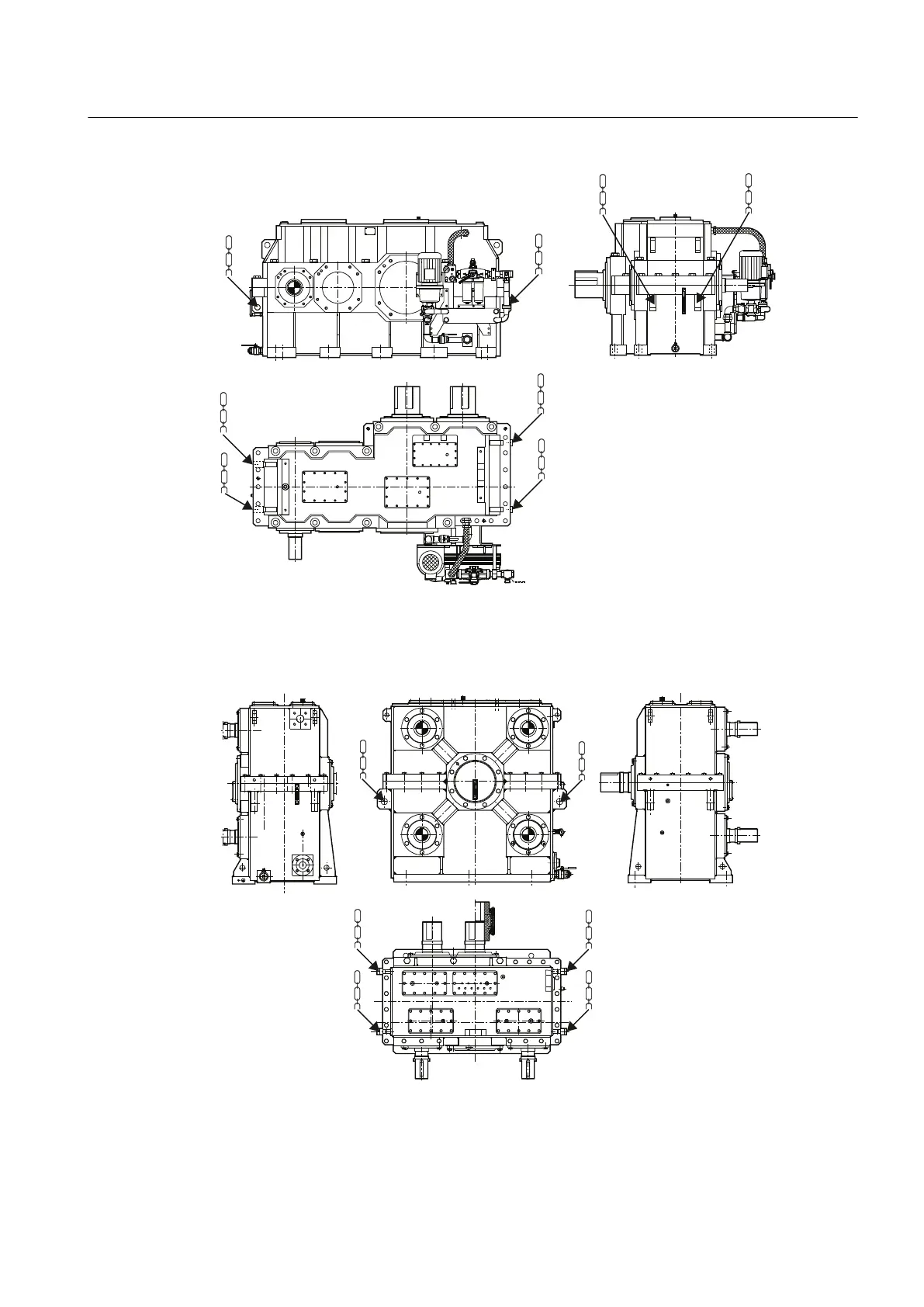

Figure 4-3 Position of the attachment points for gear units of type H2SH 24 (SOND 622)
The diagram below shows the position of the attachment points for gear units of type
M1S X 315:
Figure 4-4 Position of the attachment points for gear units of type M1S X 315
The diagram below shows the position of the attachment points for gear units of type H3SX:
Application planning
4.3 Attachment points
