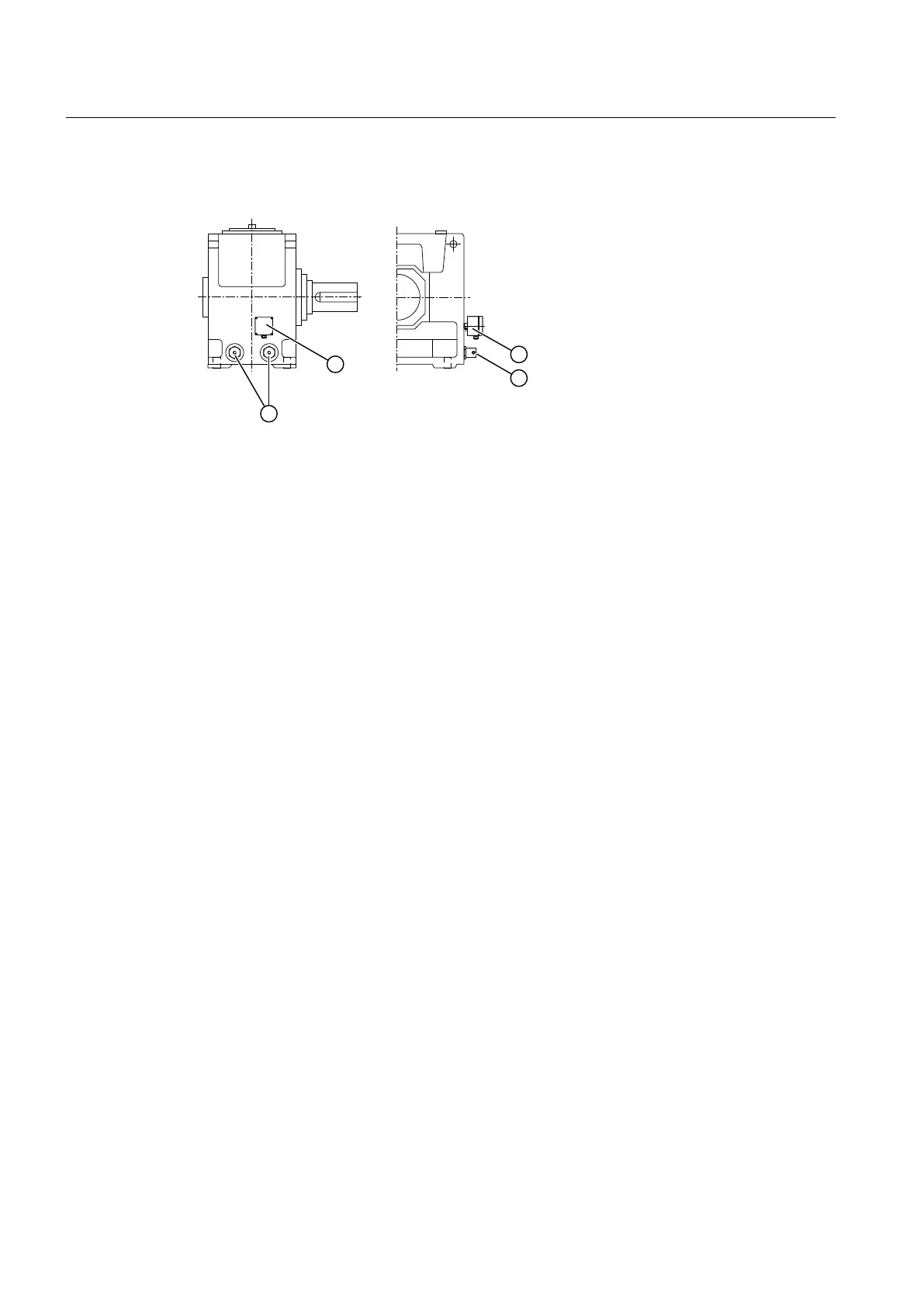

The diagram below shows gear unit heating:
① Temperature monitor ② Heating element
Figure 3-11 Heating for gear units, type H... and B...
Heating element control
Heating elements can be controlled by a temperature monitor. The temperature monitor
provides a signal to be amplified when the minimum and maximum temperatures are reached.
Further information
Further information about the position of the mounted components and a detailed illustration
of the gear unit can be found in the dimension drawing in the complete documentation for the
gear unit.
Further information about heating elements can be found in the separate data sheet, in the list
of equipment and in the heating element operating instructions in the complete documentation
for the gear unit.
Further information about the temperature monitor (such as control instructions) can be found
in the temperature monitor operating instructions in the complete documentation for the gear
unit.
3.10 Oil level indicator
The following components for visual monitoring of the oil level can be mounted on the gear
unit:
● Oil sight glass
● Oil level indicator
● Oil dipstick
Check the oil level when the gear unit is stationary and with the oil in a cool state.
Description
3.10 Oil level indicator
Gear unit 5118en
