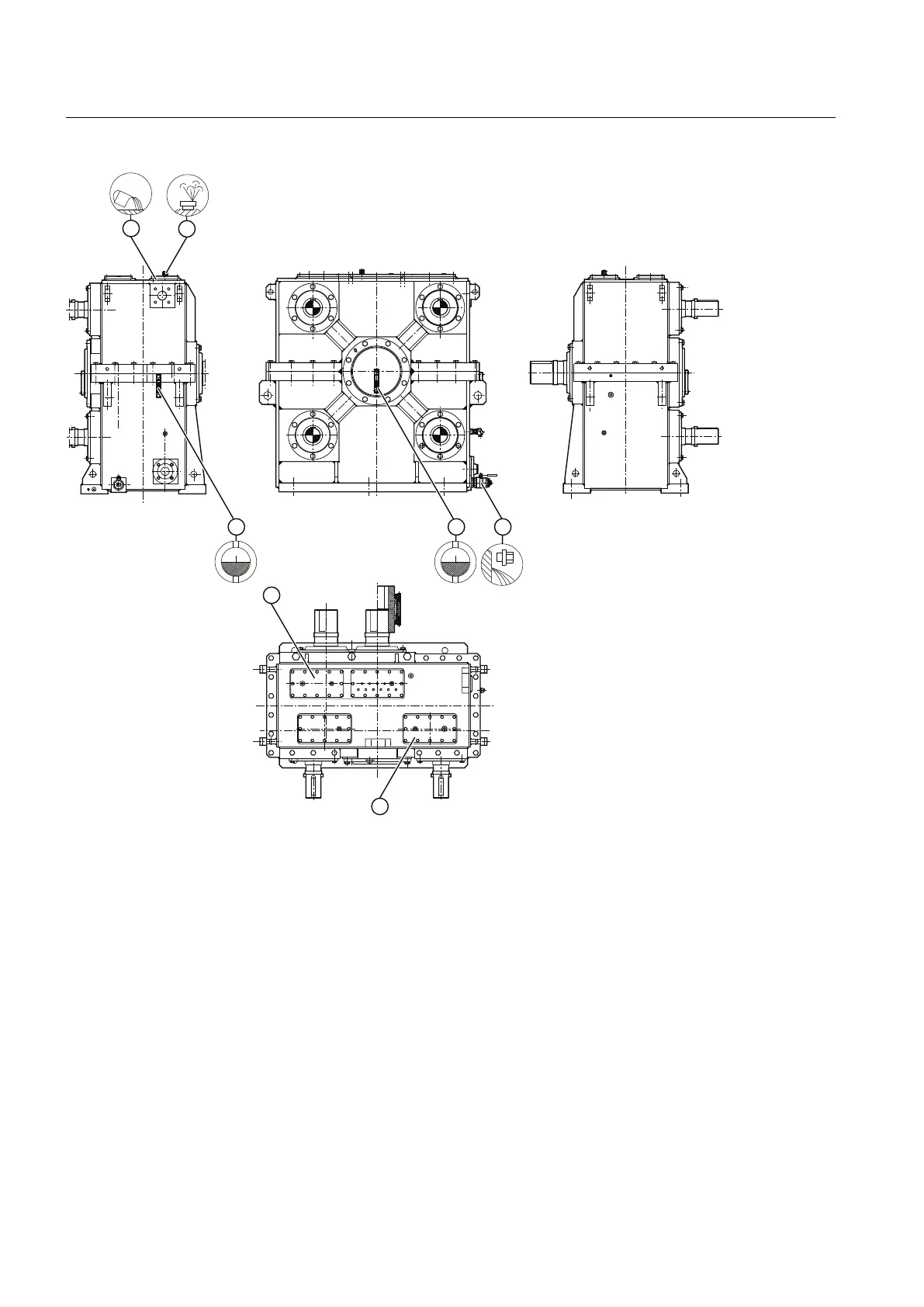

FLENDER H2SH 24 - Figure 4-7 Oil Filling Points and Oil Draining Points on Type M1 S X 315 Gear Units








① Oil filling point ④ Oil level indicator
② Venting point ⑤ Inspection and assembly cover
③ Oil draining point
Figure 4-7 Oil filling points and oil draining points on type M1S X 315 gear units
The diagram below shows the oil filling points and the oil draining points on type H3SX gear
units:
