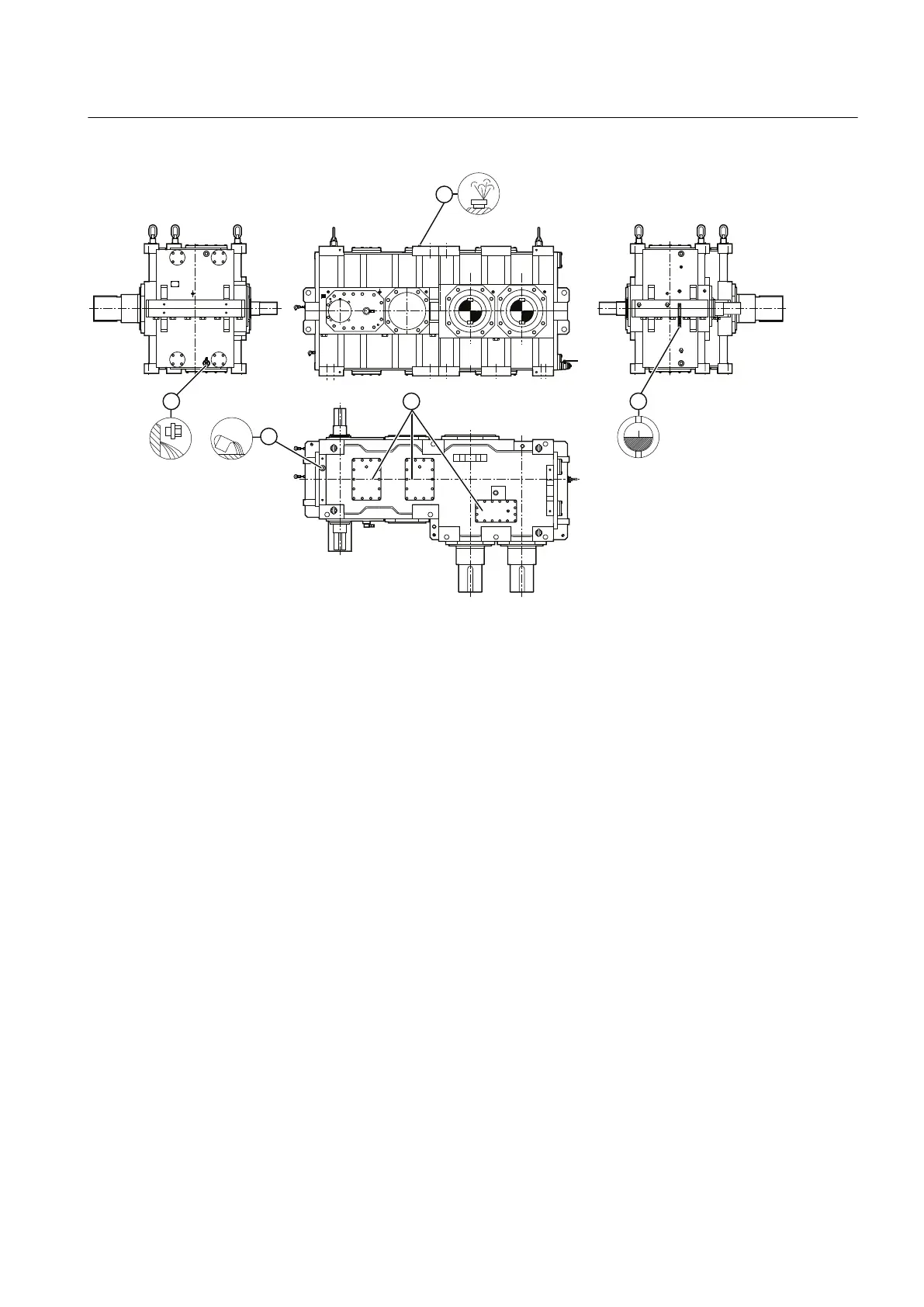

① Venting point ④ Oil filling point
② Oil level indicator ⑤ Oil draining point
③ Inspection and assembly cover
Figure 4-8 Oil filling points and the oil draining points on type H3SX gear units
Further information
Further information and a detailed illustrated description of the gear unit can be found in the
dimension drawing in the complete documentation for the gear unit.
4.4.2 Preservation of gear units with Tacolab seals
After gear units with Tacolab seals have been preserved according to the standard procedure,
the air gap is hermetically sealed with adhesive tape.
The diagram below shows the procedure for preserving gear units with Tacolab seals:
Application planning
4.4 Special aspects of gear unit lubrication and preservation
Gear unit 5118en
Operating Instructions 10/2017 53
