Proceed as follows to insert the anchor bolt:
1. Place the support on the baseplate embedded in the fine-grout concrete.
2. Insert the anchor bolt.
3. Attach the pressure plate and tighten the nuts.
4. Place a piece of wood under the anchor bolt so that it is approximately 10 mm from the
upper edge of the support.
5. Place the gear unit down.
NOTICE
Use of incorrect attachment points
Use of incorrect attachment points may result in damage to the gear unit. When transporting
the gear unit, only attach it at the lifting eyes provided for the purpose.
The threads in the end faces of the shaft ends may not be used for attaching lifting equipment.
Lifting equipment must be adequately designed to accommodate the weight of the gear unit.
Mounting the gear unit using anchor bolts

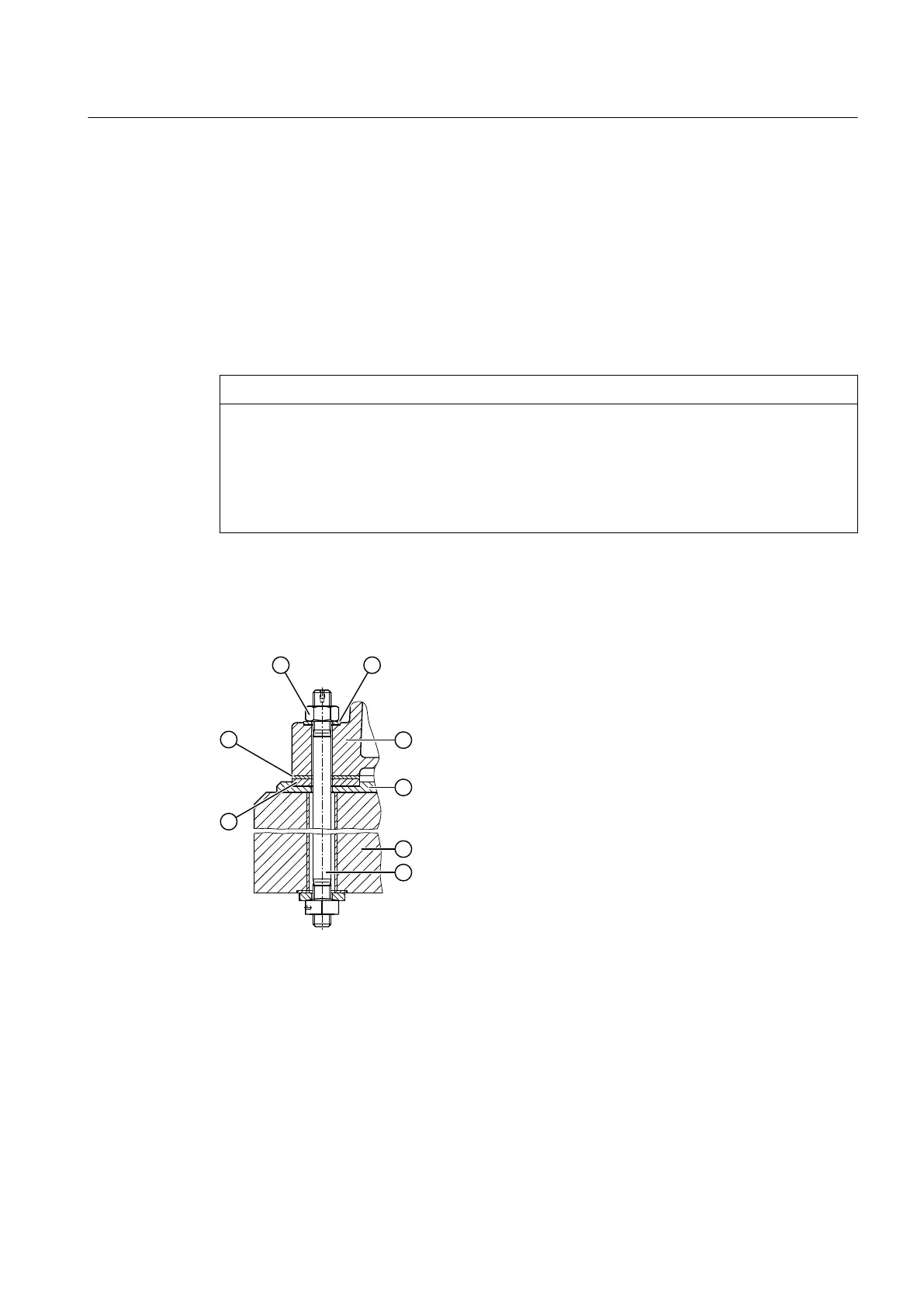

The following diagram shows a tightened anchor bolt:
① Hexagon nut ⑤ Raw foundation
② Washer ⑥ Anchor bolt
③ Housing foot ⑦ Baseplate
④ Fine-grout concrete ⑧ Support
Figure 5-6 Tightened anchor bolt
Assembly
5.3 Gear unit assembly
