FLUXUS ADM 8027, F801, ADM 8127B 9 Mounting of the Transducers
60 UMFLUXUS_F8V4-6-1EN, 2018-10-10
• Place the tension strap around the pipe and insert it into the clasp (see Fig. 9.14).
• Tighten the tension strap.
• Tighten the screw of the clasp.
Ratchet Clasp
•
Insert the tension strap into the tension strap clamp and the metal spring (see Fig. 9.15).
It is not necessary to mount the met-
al spring:
– on steel pipes
– on pipes with an outer pipe diameter < 80 mm or
– on pipes that are not subjected to significant temperature fluctuations
• Position the clasp, the metal spring (if necessary) and the tension strap clamp on the pipe (see Fig. 9.10).
– On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
– Mount the metal spring on the opposite side of the tension strap clamp (if necessary).
• Place the tension strap around the pipe and insert it into part 3 of the clasp (see Fig. 9.16).
• Tighten the tension strap.
• Cut off the protruding tension strap (see Fig. 9.17).
• Tighten the screw of the clasp.

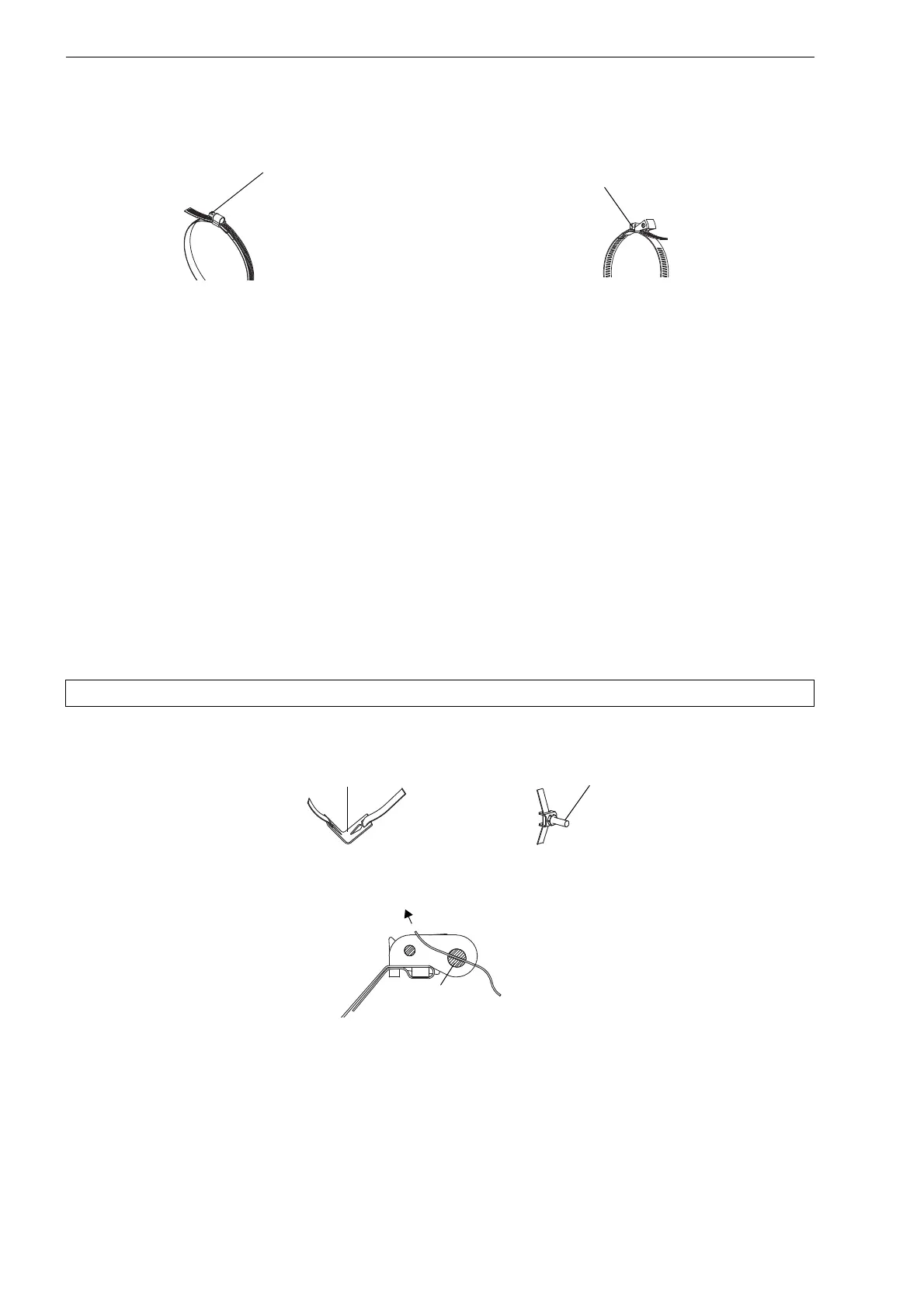

Fig. 9.13: Band clamp clasp with tension strap Fig. 9.14: Quick release clasp with tension strap
Attention! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp edge.
Fig. 9.15: Tension strap with the metal spring and the tension strap clamp
Fig. 9.16: Ratchet clasp with tension strap
