9 Mounting of the Transducers FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 61
9.3.4 Fixing the Rail to the Pipe
• Place one tension strap clamp in the rail (see tension strap clamp 1 in Fig. 9.18). Observe the orientation of the tension
strap clamp.
• Tighten the nut of tension strap clamp 1 slightly.
• Screw the rail to tension strap clamp 2 (see Fig. 9.19).
• Tighten the nut of tension strap clamp 2, but not too firmly in order not to damage the tension strap.
• Select the installation instructions that correspond to the supplied clasp:
Band clamp clasp
• Insert the tension strap into tension strap clamp 1 (see Fig. 9.20).
• Place the tension strap around the pipe and insert it into the clasp (see Fig. 9.21).
• Tighten the tension strap.
• Tighten the screw of the clasp.
• Tighten the nut of tension strap clamp 1, but not too firmly in order not to damage the tension strap (see Fig. 9.20).

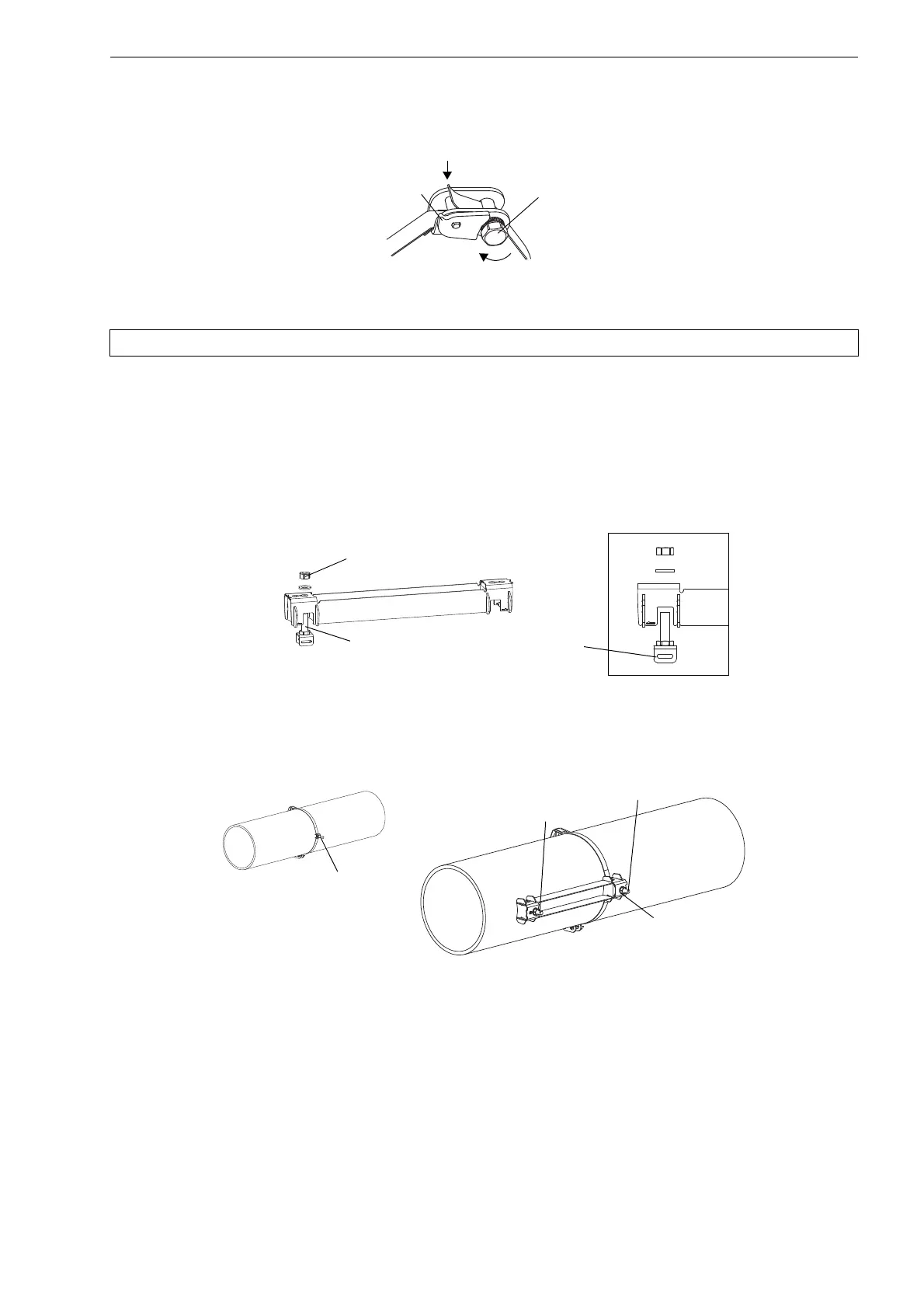

Fig. 9.17: Ratchet clasp with tension strap
Attention! To release the screw and the tension strap, press the lever down (see Fig. 9.17).
Fig. 9.18: Rail with tension strap clamp
Fig. 9.19: Rail, mounted on one side of the pipe
lever
sense of rotation
cut
screw of
the clasp
Observe the
orientation!
nut
tension
strap 1
nut
tension
strap 2
tension
strap 2
tension
strap 1
