13.2.6 Offline transmission of data to a terminal program
• Start the terminal program.
• Enter the transmission parameters into the terminal program (see section 13.2.4). The transmission parameters of the
terminal program and the transmitter have to be identical.
13.2.7 Offline transmission of data with the program FluxData
The measurement data in the data logger are transmitted to a PC via the serial interface RS232 with the FLEXIM program
FluxData.
Select Special Funct.\Print Meas.Val. Press ENTER.
This error message will be displayed if no measured values are stored. Press ENTER.
This message will be displayed if the measuring signal is sufficient.
The progress of the data transmission is visualized by a bar graph.
This error message will be displayed if an error has occurred during the serial transmission.
Press ENTER. Check the connections and make sure that the PC is ready to receive data.

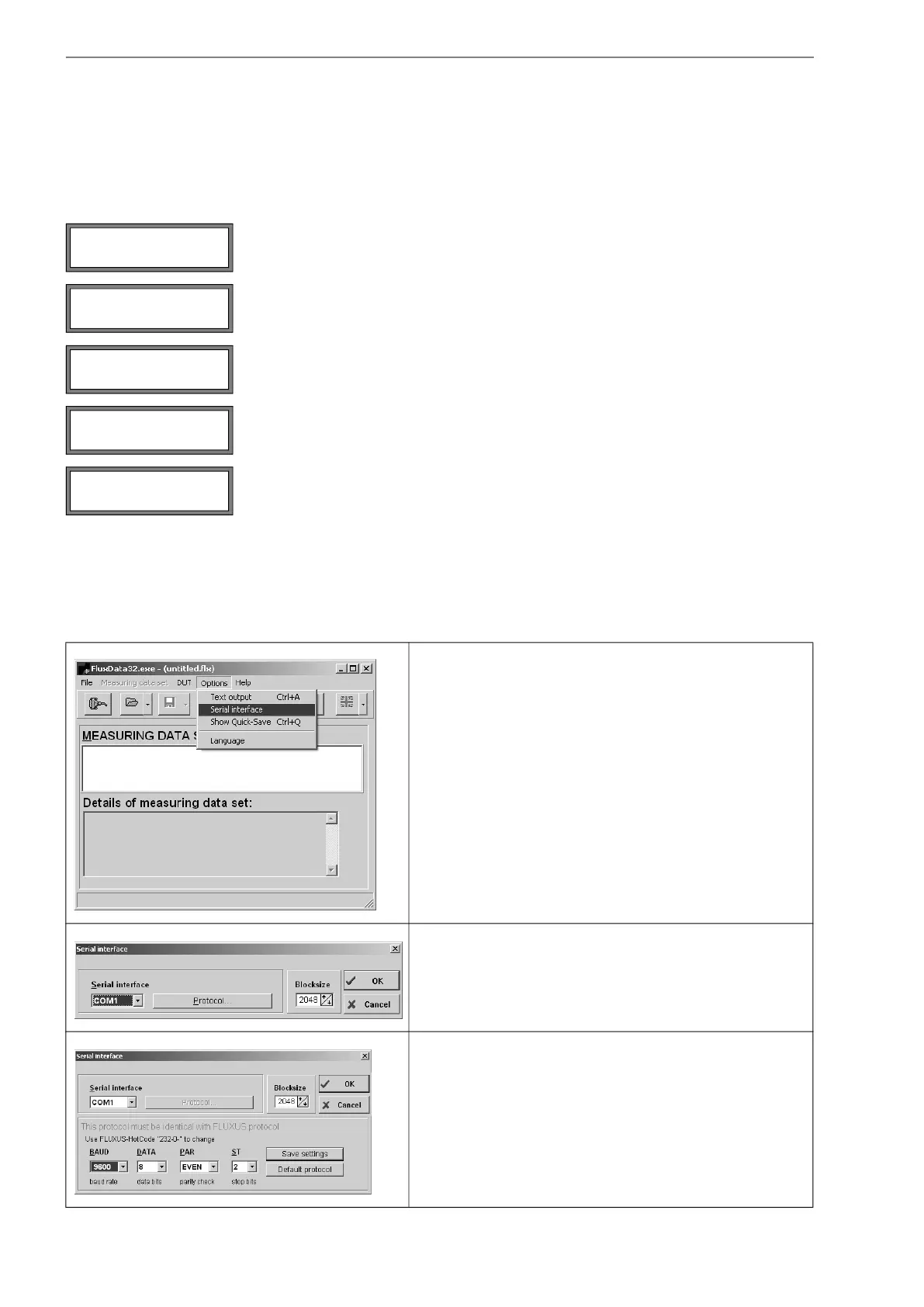

Program settings
Start the program FluxData V3.0 or higher on the PC.
Select the menu:
Options > Serial interface.
Select the serial interface used by the PC (e.g., COM1).
Click on Protocol.
Click on OK.
Enter the transmission parameters (see section 13.2.4). If the
default settings of the transmission parameters are to be used,
click on Default protocol.
The transmission parameters of the program FluxData and the
transmitter have to be identical.
Click on OK.
Special Funct. ↕
Print Meas.Val.
NO VALUES !
Print Meas.Val.
Send Header 01
................
■■■■■■
................
SERIAL ERROR !
Print Meas.Val.
To Next Page
