FLUXUS F808, F809 3 General principles
16 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
Beam
The path covered by the ultrasonic signal between the transducers: the transducer emitting the ultrasonic signal and the
transducer receiving it. A beam consists of 1 or several sound paths (see Fig. 3.9 or Fig. 3.10).
Transducer distance
Distance between the transducers. It is measured between the inner edges of the transducers.
Sound beam plane
A plane containing 1, 2 or more sound paths or beams (see Fig. 3.11).

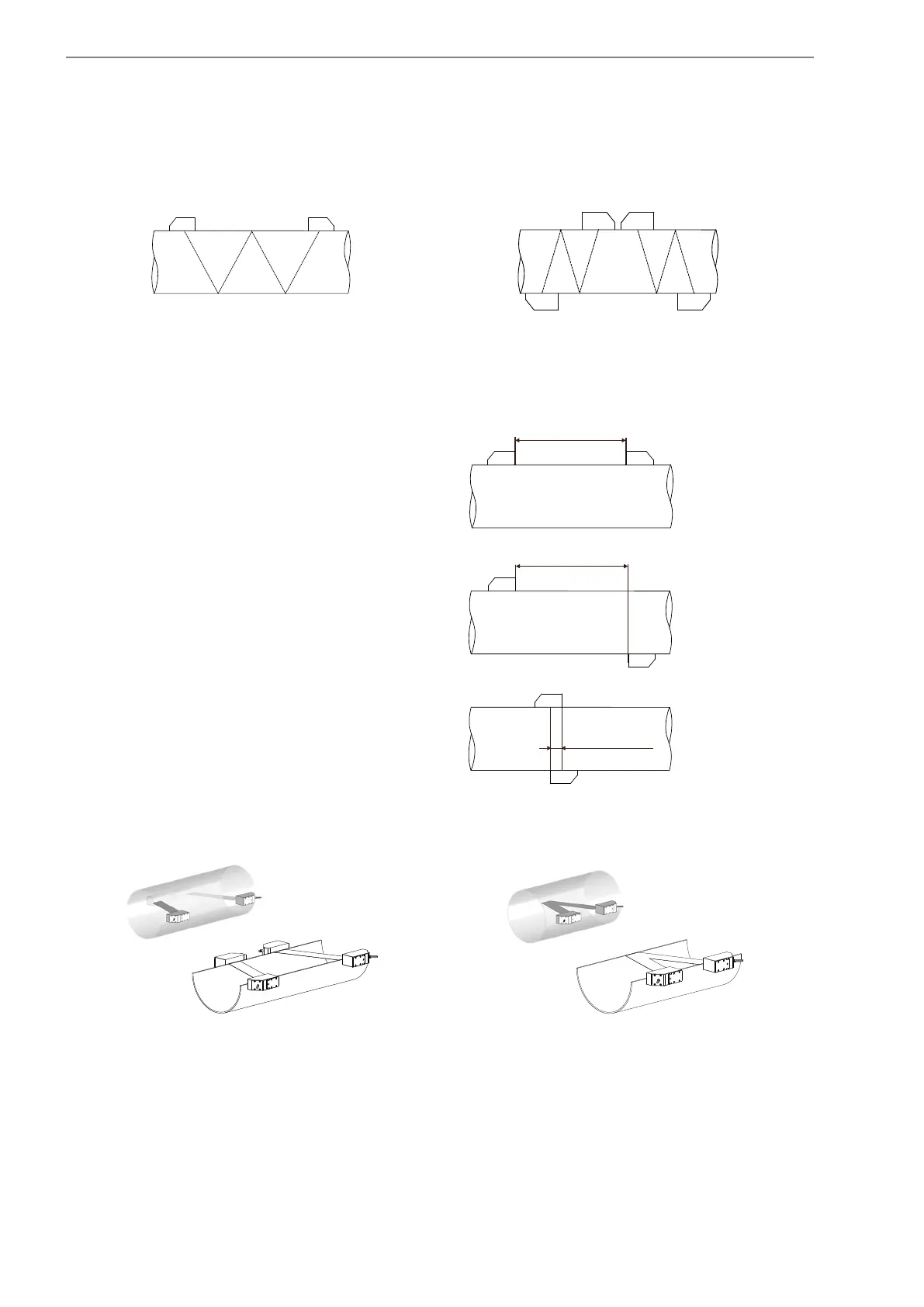

Fig. 3.9: 1 beam, 4 sound paths, reflection arrangement Fig. 3.10: 2 beams, 3 sound paths, diagonal arrangement
reflection arrangement
diagonal arrangement
(positive transducer distance)
diagonal arrangement
(negative transducer distance)
Fig. 3.11: Sound paths and beams in one plane
transducer distance
transducer distance
transducer distance
2 beams
in 1 plane
2 sound paths
in 1 plane
