6 Installation of FLUXUS F808 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 41
6.7.1.2 Transducer cable with SMB connectors
For the installation of transducers with SMB connectors a SMB adapter is required.
• The transmitter has 1 cable gland for the connection of the transducers.
• Remove the left blind plug for the connection of the transducer cable (see Fig. 6.17).
• Connect the transducers with the SMB adapter.
• Insert the transducer cables with SMB connector into the housing.
• Tighten the gasket ring side of the basic part tightly into the housing of the transmitter.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the transducer cable to the terminals of the transmitter (Fig. 6.17 and Tab. 6.13).
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document
SIFLUXUS_808_F2).

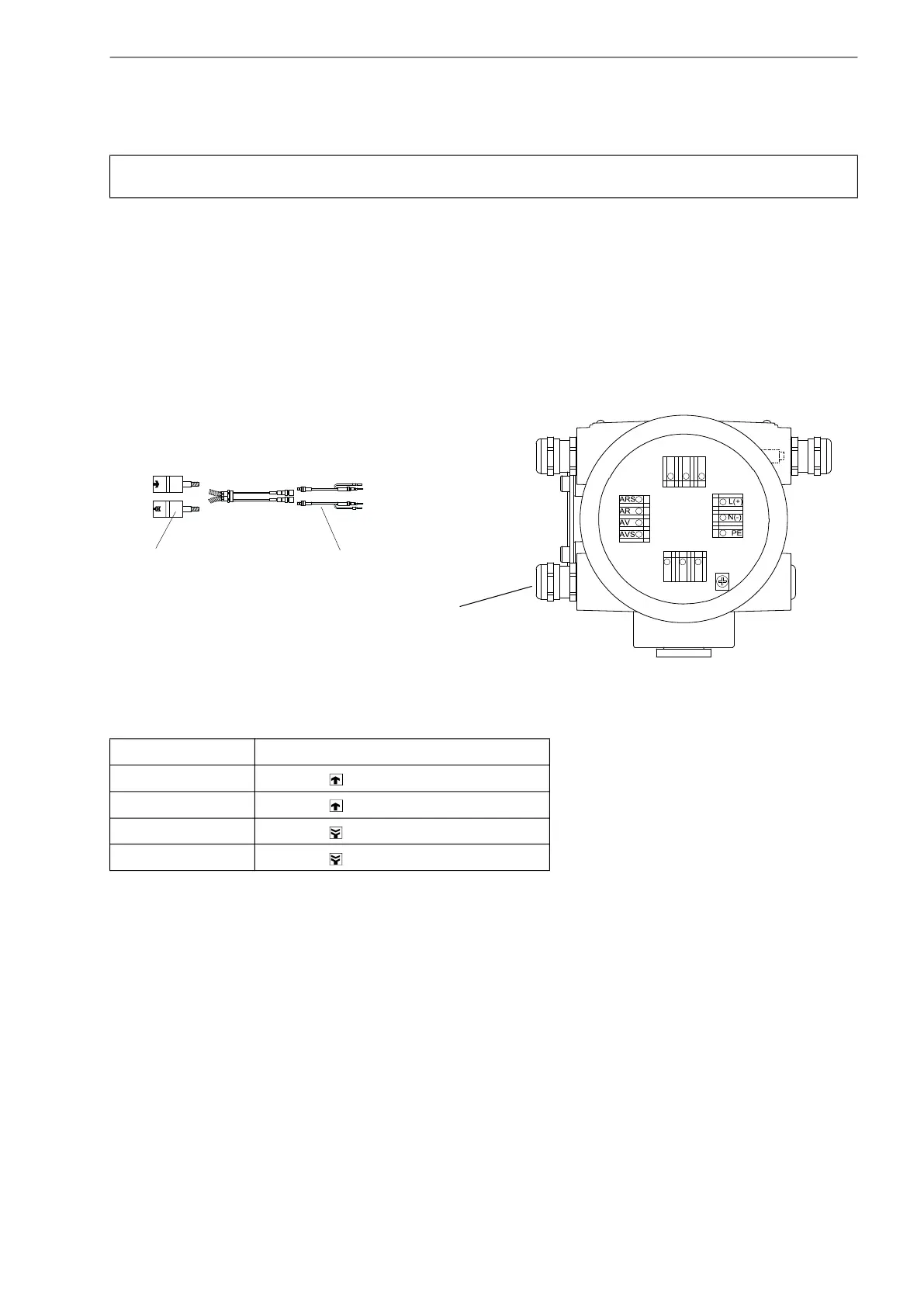

Fig. 6.17: Connection of the transducer cable with SMB adapter
Tab. 6.13: Terminal assignment (transmitter, KL4)
terminal connection (SMB adapter)
AV transducer (brown cable, marked white)
AVS transducer (red cable)
ARS transducer (red cable)
AR transducer (brown cable)
transducers
KL1
KL3
KL4 KL2
transducers SMB adapter
