Flexim FLUXUS F808 A1 Series User Manual

FLUXUS F808, F809 6 Installation of FLUXUS F808
48 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
6.8.2 FLUXUS F808**-F1
The external protective earth is connected to the equipotential bonding terminal on the transmitter housing. It always has
to be connected (see Fig. 6.24)
For the connection of the power cable to the transmitter, see Fig. 6.24 and Tab. 6.19.
Tab. 6.18: Connection of the power supply (KL2)
AC DC
terminal connection terminal connection
L phase L+ +
N neutral N- -
PE earth PE earth
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document
SIFLUXUS_808_FM and SIFLUXUS_1N62).

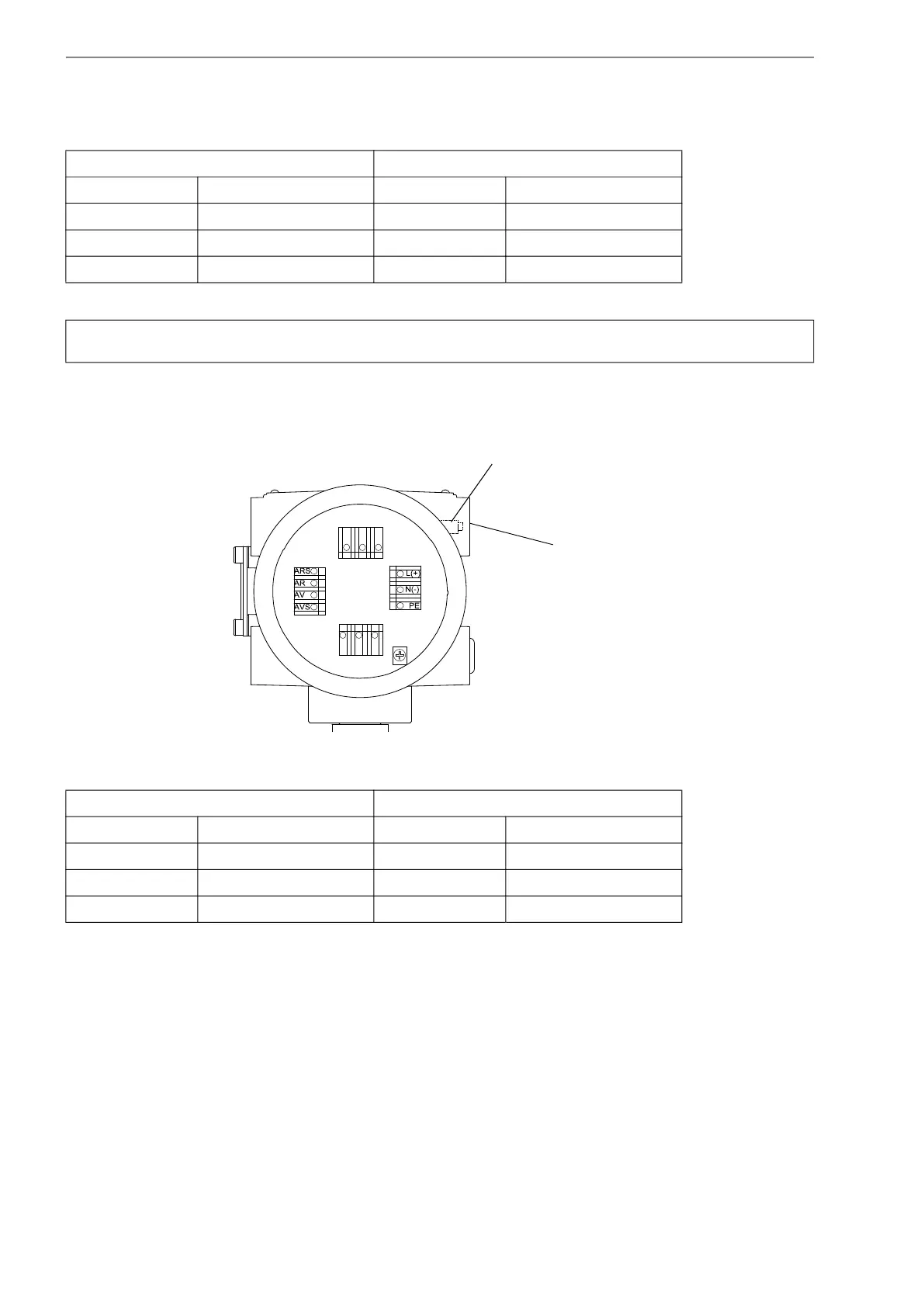

Fig. 6.24: Connection of the power supply
Tab. 6.19: Connection of the power supply (KL2)
AC DC
terminal connection terminal connection
L phase L+ +
N neutral N- -
PE earth PE earth
KL1
KL3
KL4 KL2
power supply
equipotential bonding
terminal
