FLUXUS F808, F809 8 Installation of the Transducers
82 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
8.3.4 Fixing the rail to the pipe
• Place one tension strap clamp in the rail (see tension strap clamp 1 in Fig. 8.16). Observe the orientation of the tension
strap clamp.
• Tighten the nut of tension strap clamp 1 slightly.
• Screw the rail to tension strap clamp 2 (see Fig. 8.17).
• Tighten the nut of tension strap clamp 2, but not too firmly in order not to damage the tension strap.
• Select the installation instructions that correspond to the supplied clasp:
Band clamp clasp
• Insert the tension strap into tension strap clamp 1 (see Fig. 8.18).
• Place the tension strap around the pipe and insert it into the clasp (see Fig. 8.19).
• Tighten the tension strap.
• Tighten the screw of the clasp.
• Tighten the nut of tension strap clamp 1, but not too firmly in order not to damage the tension strap (see Fig. 8.18).

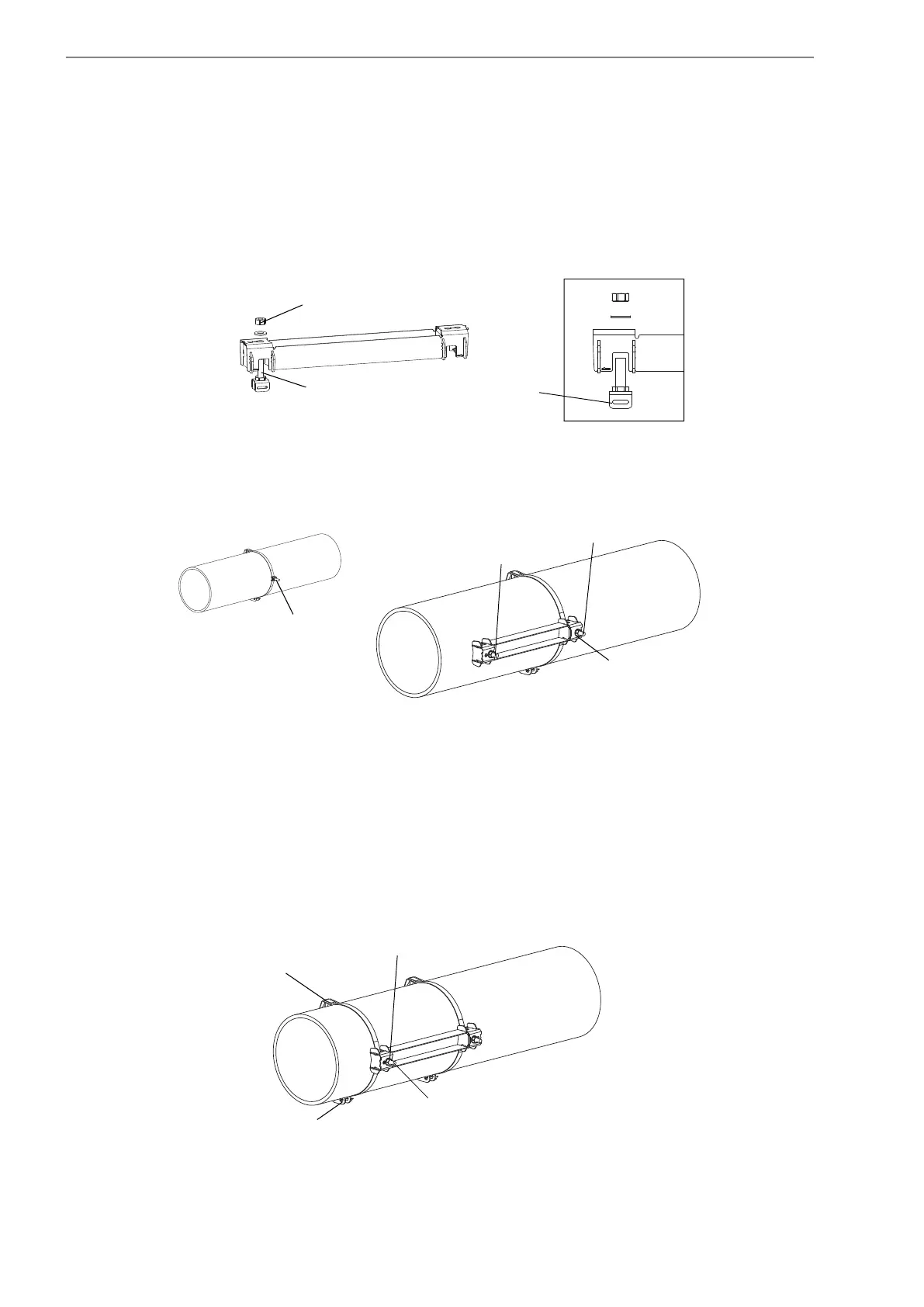

Fig. 8.16: Rail with tension strap clamp
Fig. 8.17: Rail, mounted on one side of the pipe
Fig. 8.18: Rail on the pipe
Observe the
orientation!
nut
tension strap 1
nut
tension strap 2
tension strap 2
tension strap 1
nut
clasp
metal spring
tension strap 1
