FLUXUS F808, F809 8 Installation of the Transducers
88 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
• Place the tension strap around the pipe (see Fig. 8.34).
• Position the metal spring (if mounted) and the tension strap clamp (see Fig. 8.34):
– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible
– mount the metal spring (if necessary) on the opposite side of the tension strap clamp
• Insert the long end of the tension strap into the second slot of the tension strap clamp (see Fig. 8.34 a).
• Tighten the tension strap and bend it.
• Bend both ends of the tension strap (see Fig. 8.34 b).
• Repeat the steps for the second tension strap. Position the tension strap at the distance s (see Fig. 8.34).
• Put the rail on the tension strap clamps.
• Use the screws to fix the rail to the tension strap clamps (see Fig. 8.35).
• Tighten the screws.

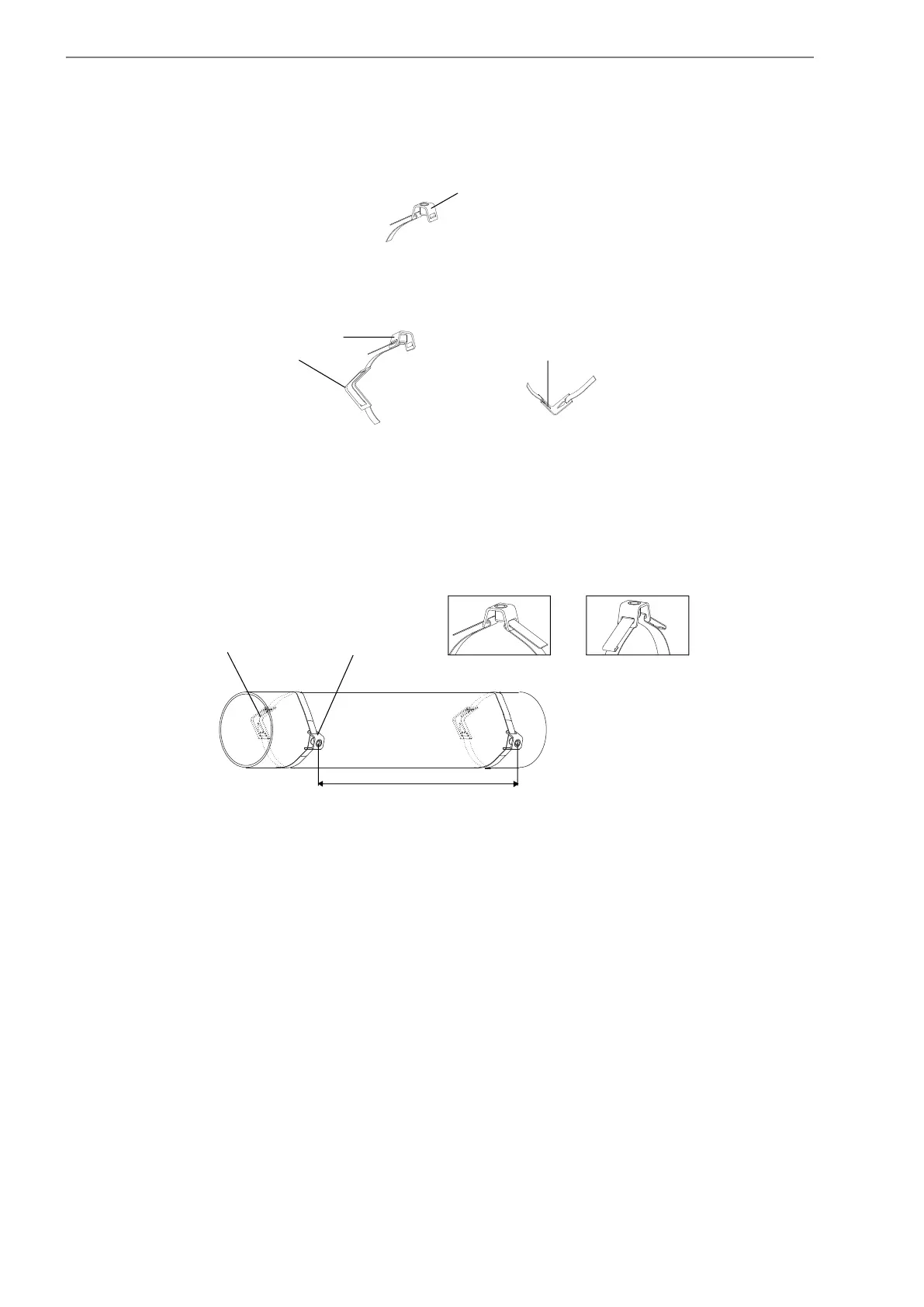

Fig. 8.32: Tension strap with tension strap clamp
Fig. 8.33: Tension strap with metal spring and tension strap clamp
Fig. 8.34: Tension strap with metal spring and tension strap clamp on the pipe
tension strap clamp
tension strap clamp
metal spring
metal spring
s
a b
tension strap
metal spring
s = length of the rail – 33 mm
