FLUXUS F808, F809 8 Installation of the Transducers
90 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
• Repeat the steps for the second tension strap.
• Put the rail on the tension strap clamps (see Fig. 8.40).
• Fix the rail to the tension strap clamps with the screws.
• Tighten the screws.

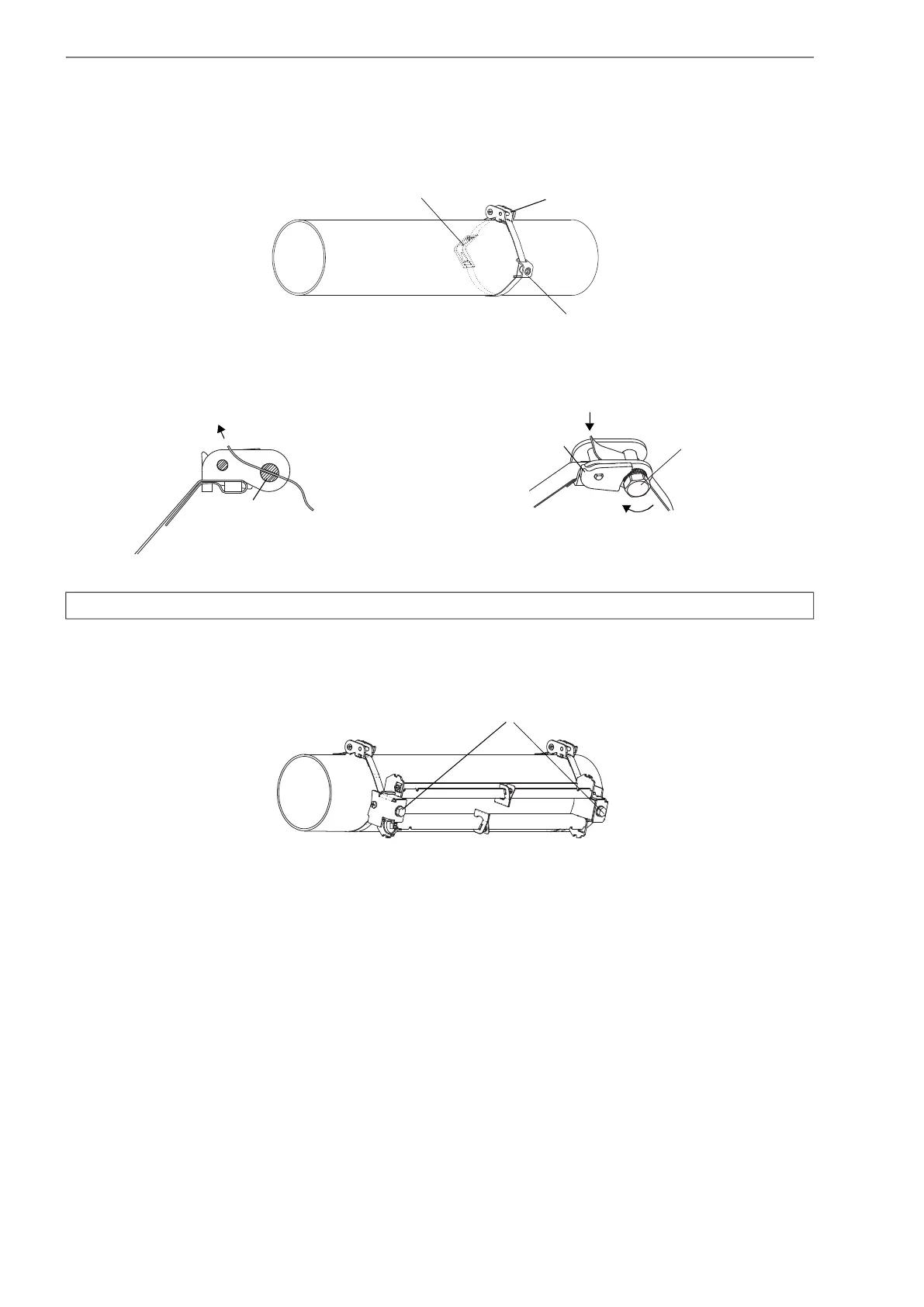

Fig. 8.38: Tension strap with metal spring, the ratchet clasp and tension strap clamp on the pipe
Fig. 8.39: Ratchet clasp with tension strap
Note! To release the screw and the tension strap press the lever down (see Fig. 8.39).
Fig. 8.40: Rail on the pipe
tension strap clamp
metal spring
ratchet clasp
3
lever
sense of rotation
cut
screw of the clasp
screws
