FLUXUS F808, F809 8 Installation of the Transducers
94 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
8.5.3 Installation of the rail with bolts
The number and arrangement of PermaFiX rails depends on the required transducer arrangement and transducer dis-
tance. See Fig. 8.47 for an overview of possible arrangements.
• Select the arrangement according to the measurement.
• Disassemble the transducer mounting fixture PermaFiX (see Fig. 8.45).
• Place one of the rails on the pipe.
• Insert the bolts (M6) into the holes of the rail and secure them with nuts.
• Slide the second rail (arrangement a) or the counter plate (arrangements b, c, d) onto the bolts on the opposite side of
the pipe and secure it with nuts.
• Make sure not to tilt the rails when tightening the nuts.
• Repeat the steps for the second rail, if necessary.

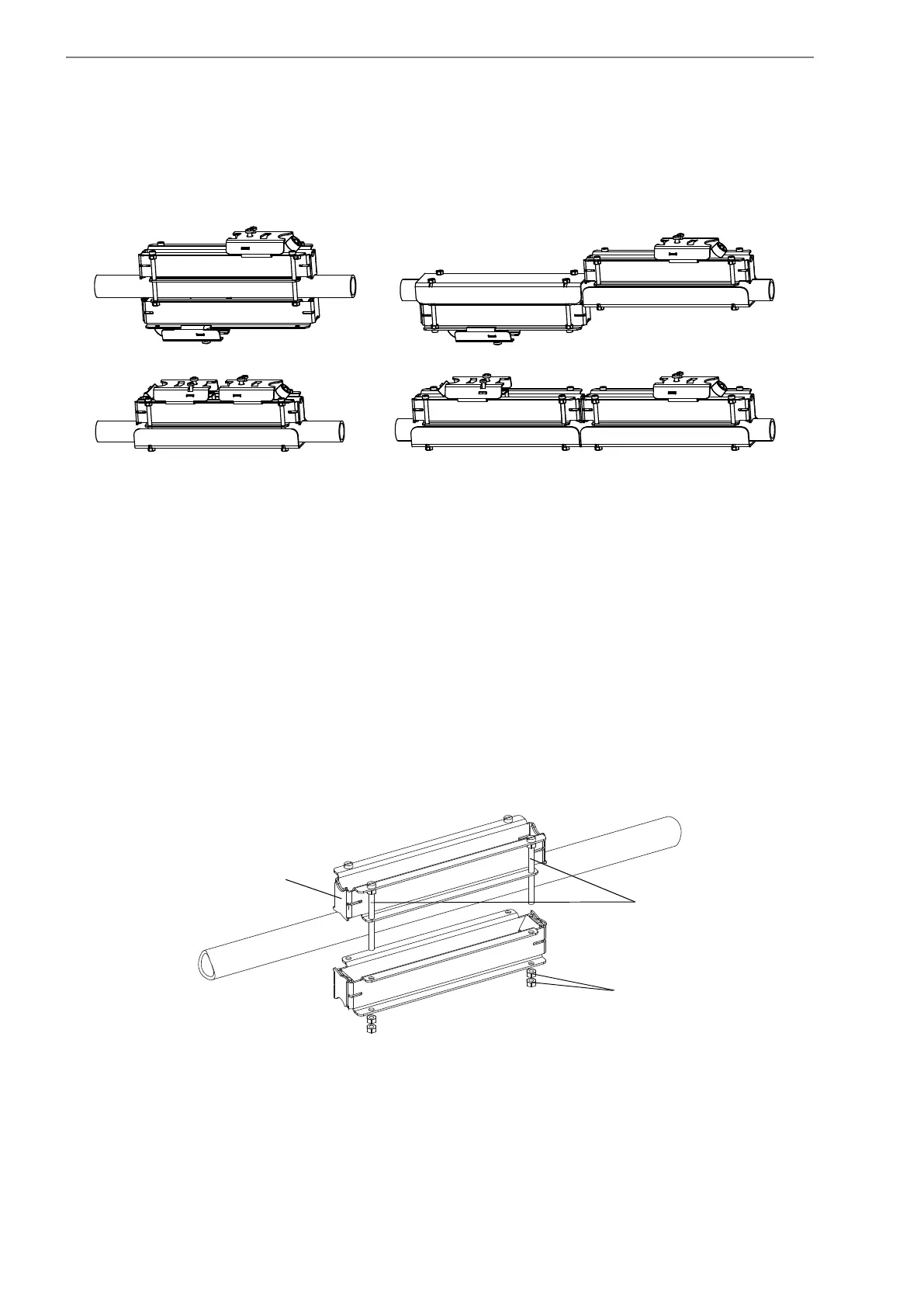

Fig. 8.47: Possible arrangements of PermaFiX (installation with bolts)
a – diagonal arrangement, small transducer distance
b – reflection arrangement, small transducer distance
c – diagonal arrangement, large transducer distance
d – reflection arrangement, large transducer distance
Fig. 8.48: Installation of the rail with bolts (diagonal arrangement, small transducer distance)
a
b
c
d
bolts
nuts
rail
