FLIR ThermaCAM P45 - CVBS Connector; S-Video Connector

2.5 mm DCConnector type:
Pin numberTypeSignal name
CENTER PINPOWER+12V
CHASSISPOWERGND
16.11.5 CVBS connector
10402503;a1

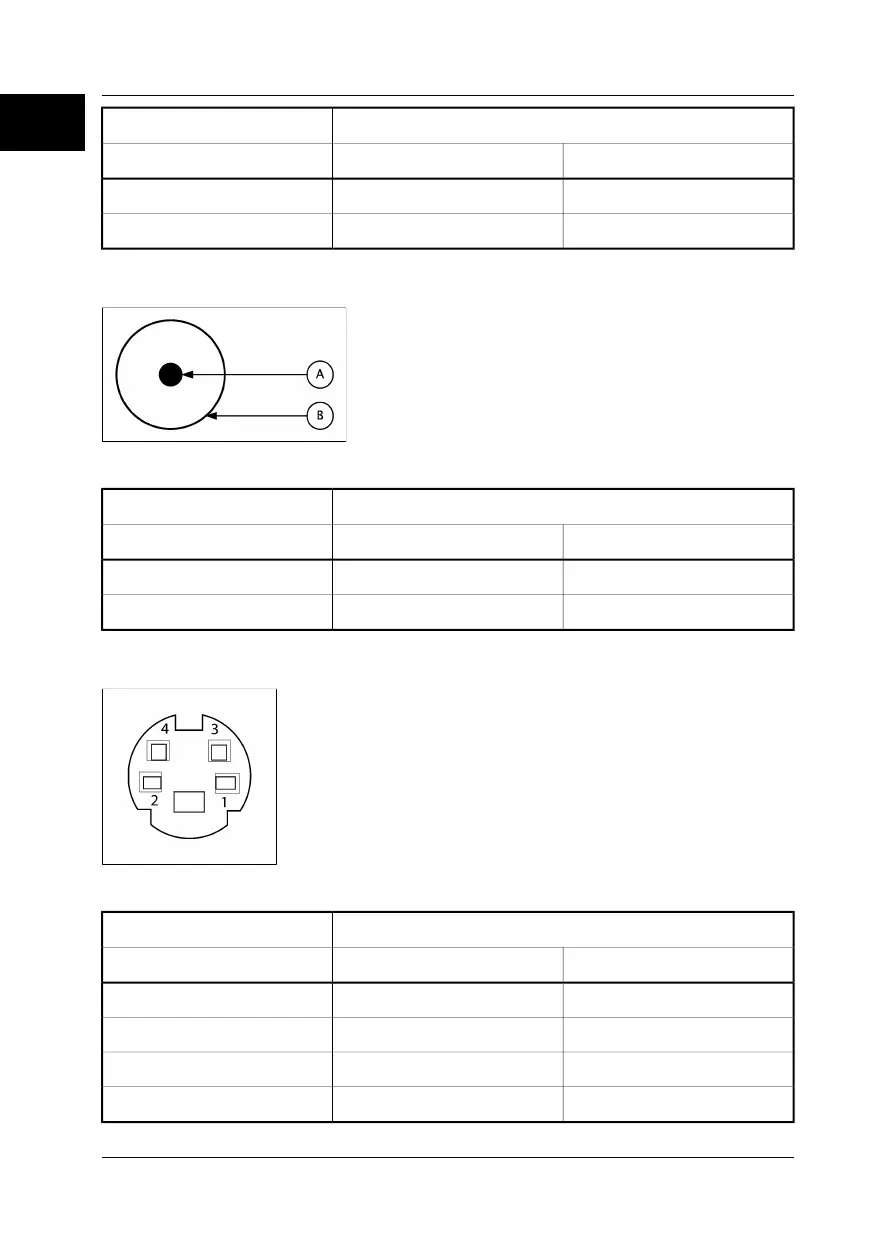

Figure 16.6 Pin configuration for CVBS connector (on camera – operator’s side). A: Center pin; B: Chassis
RCA/PHONOConnector type:
Pin numberTypeSignal name
CENTER PINVIDEOCVBS
CHASSISPOWERGND
16.11.6 S-Video connector
10402403;a2
Figure 16.7 Pin configuration for S-Video connector (on camera – operator’s side)
MINI-DIN, 4 pinsConnector type:
Pin numberTypeSignal name
1OUTGND
2OUTGND
3OUTS-VIDEO Y
4OUTS-VIDEO C
