9.4 Camera status LCD
The camera status LCD on the left side of the camera displays information about
battery status, communication status, memory status etc.
10346003;a3

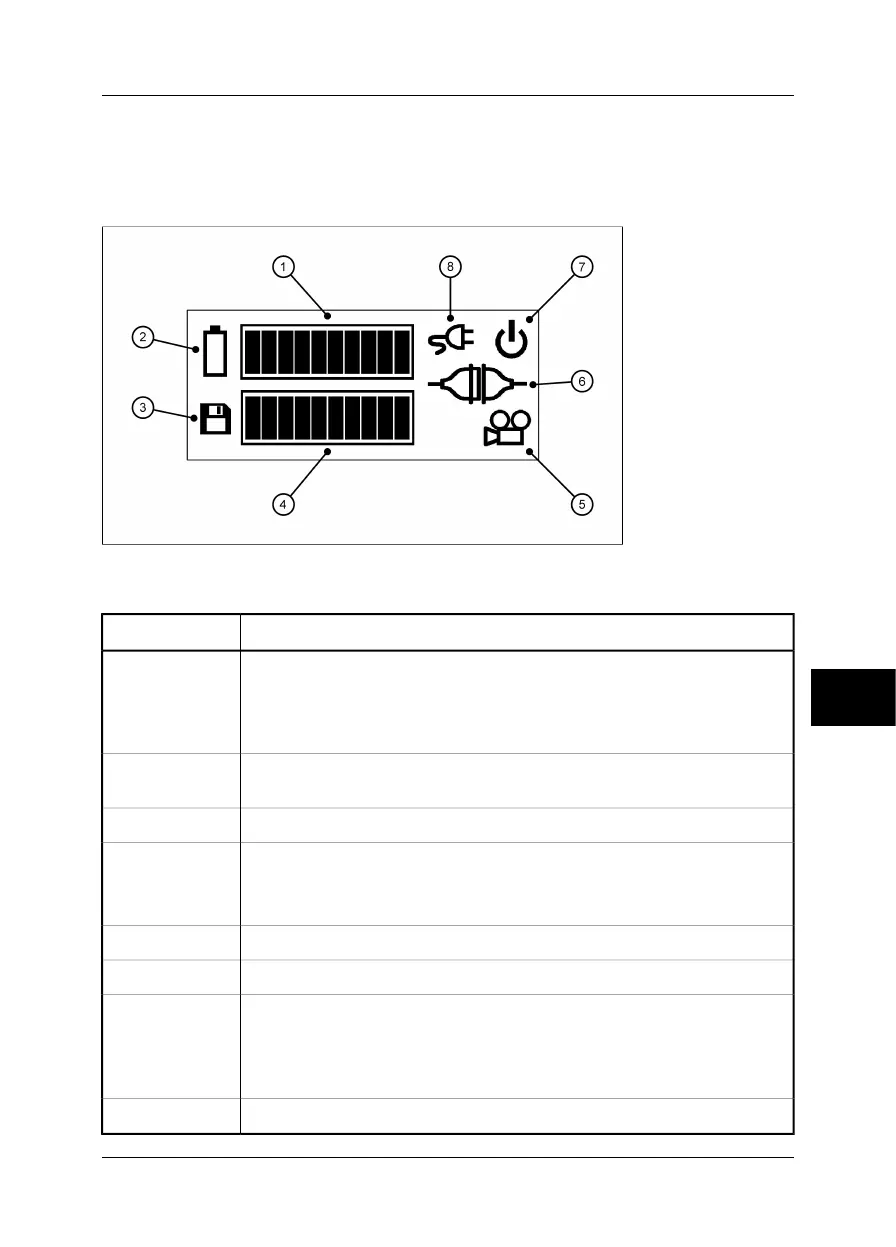

Figure 9.6 Camera status LCD
Figure 9.7 Camera status LCD – explanations
CommentsCallout
Battery status bar. The frame around the battery status bar is switched on when
a battery is inserted.
■
All segments switched on = fully charged battery
■
All segments switched off = empty battery or no battery inserted
1
Battery indicator. Switched on if a battery is inserted, flashing if the battery is being
charged internally.
2
CompactFlash card indicator. Switched on if a CompactFlash card is inserted.3
CompactFlash status bar:
■
All segments switched on = the card is empty
■
All segments switched off = the card is full
4
Not implemented.5
Communication indicator. Switched on when a communication link is active.6
Power indicator:
■
Both segments switched on when the camera is switched on
■
Both segments switched off when the camera is switched off
■
The outer segment flashing when the camera is in ‘deep sleep’
7
External power indicator. Switched on when the camera is externally powered.8
9
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 67
