10.1.2 Status bar
10388403;a2

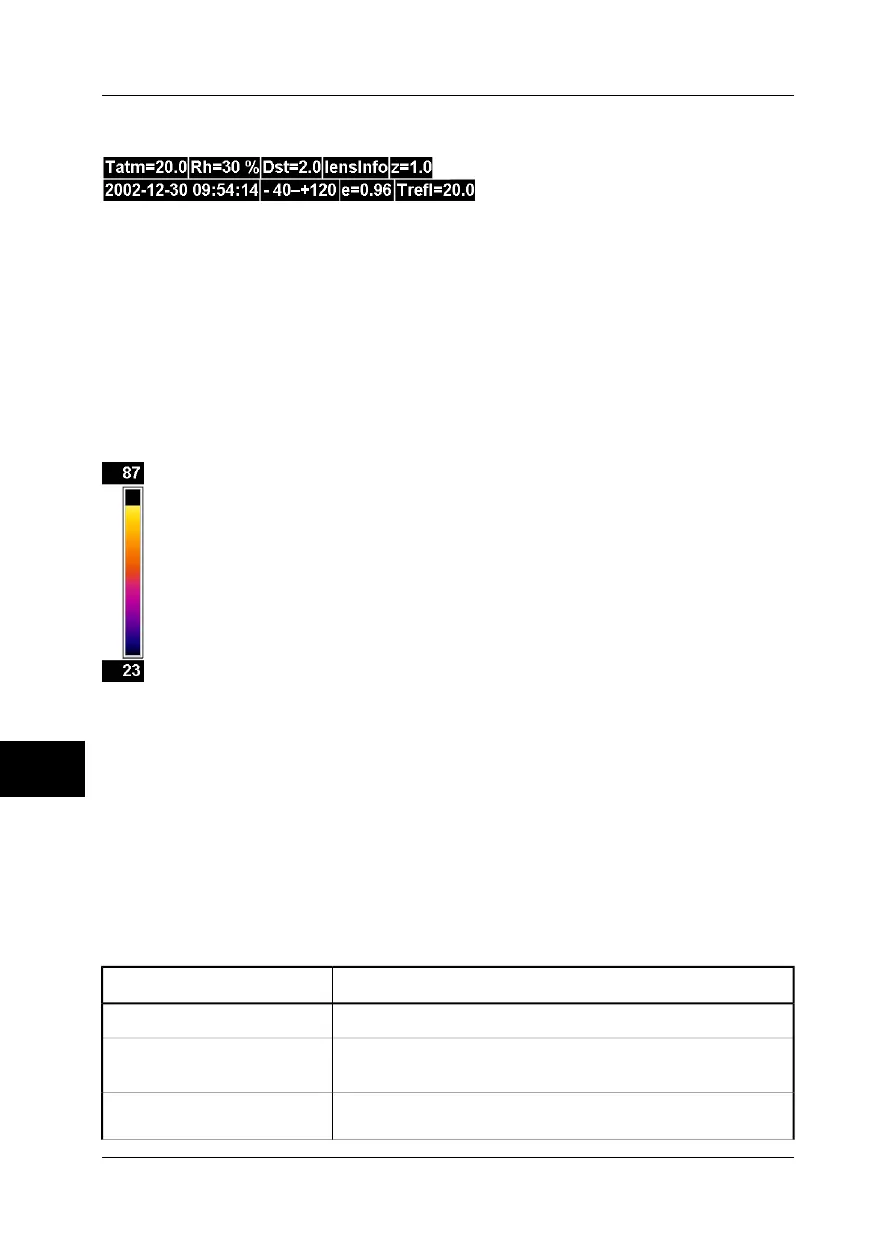

Figure 10.2 Status bar, showing atmospheric temperature, relative humidity, distance to target, zoom
factor, date & time, temperature range, emissivity, and reflected ambient temperature.
Information about an image and the current conditions appear on the first and second
bottom lines of the screen. If text comments are attached to an image file, they are
displayed above these two lines.
➲ If you enter an emissivity value less than 0.30 the emissivity box will begin flashing
to remind you that this value is unusually low.
10.1.3 Temperature scale
10388503;a2
Figure 10.3 Temperature scale
The temperature scale is displayed on the right-hand side of the screen. The scale
shows how the colors are distributed along the various temperatures in the image,
with high temperatures at the upper end and low temperatures at the lower end.
10.1.4 System messages
10.1.4.1 Status messages
Status messages are displayed at the bottom of the screen, or in the top left part of
the screen. Here you will find information about the current status of the camera, etc.
Figure 10.4 Status messages – a few examples
ExplanationMessage
Message is displayed when the image is frozen.Frozen
Message is displayed when the camera is currently in manual adjust
mode.
Manual
Message is displayed when the software is restarted, i.e. after Fac-
tory default.
Restarting
10
70 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006
10 – Camera program
