13 A note on LEMO connectors
13.1 How to connect & disconnect LEMO connectors
The male LEMO connectors used on the camera cables are designed to lock securely
to the female connectors on the camera body. A connector consists of a fixed inner
tube and a sliding outer tube. The outer tube controls the locking teeth. To unlock
the connector, pull the outer tube in the indicated direction. See the figure below
➲ Never pull the cable.
10062403;a2

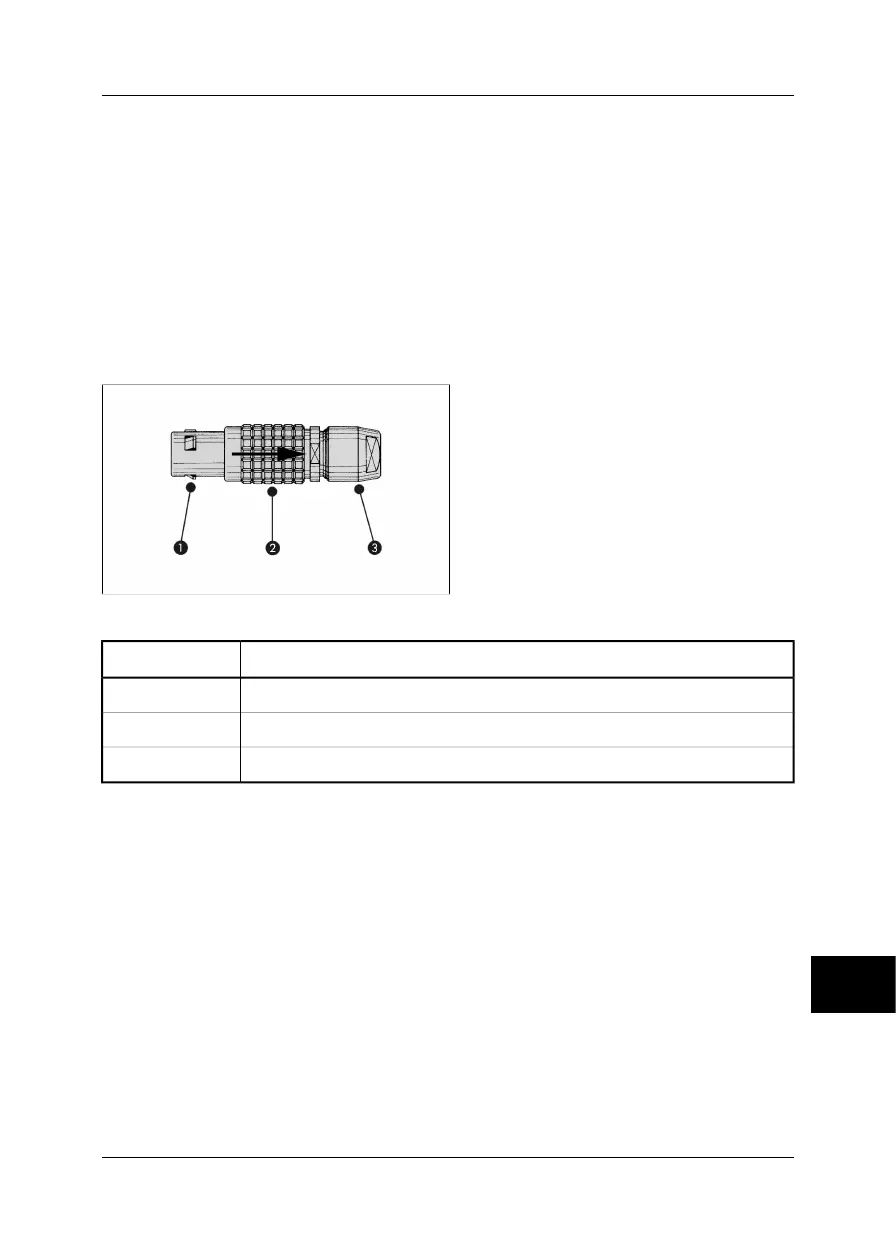

Figure 13.1 Straight body LEMO connector.
DescriptionCallout
Locking teeth1
Sliding outer tube2
Fixed inner tube3
13
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 109
