10.2.5.4 Alarm
10439703;a2

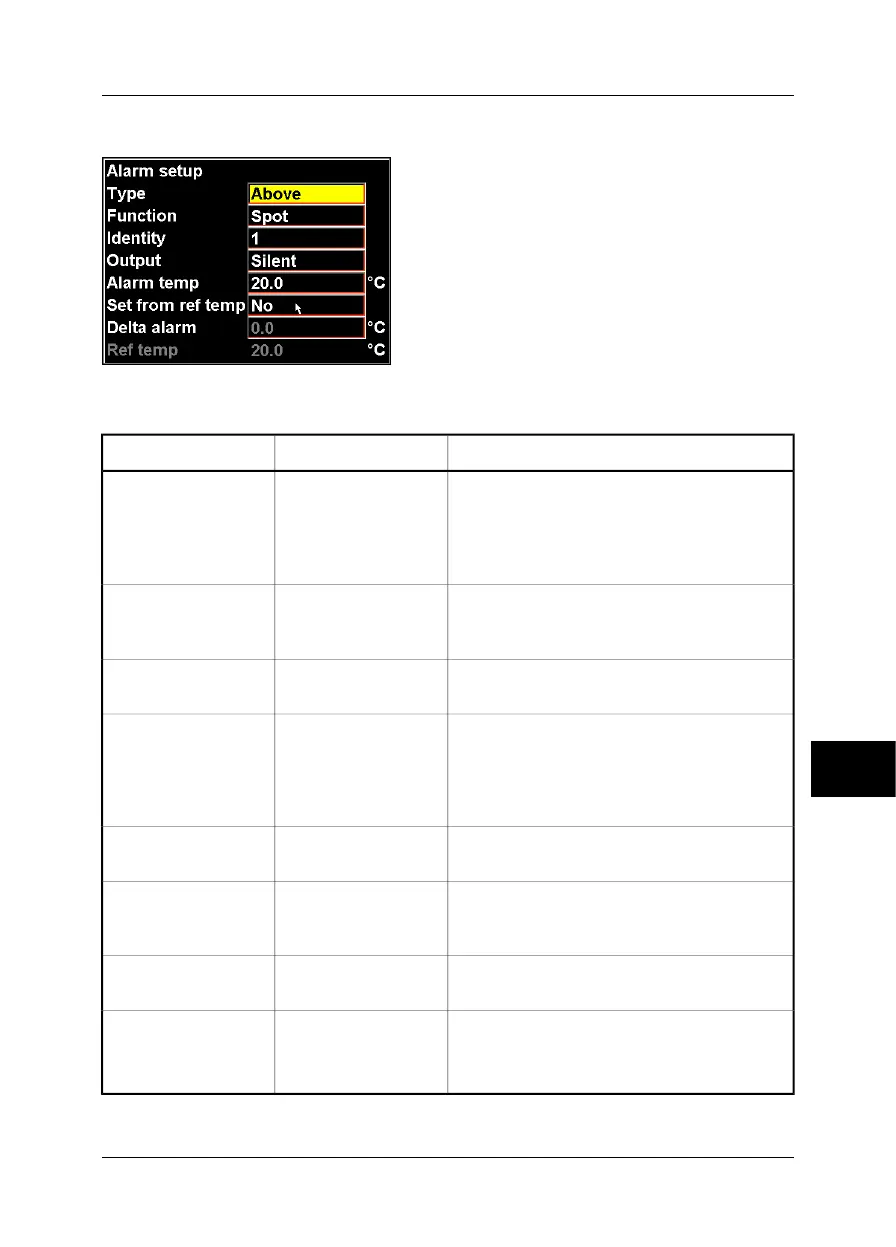

Figure 10.48 Alarm Setup dialog box
Figure 10.49 Explanations of the Alarm setup dialog box
ExplanationValueLabel
■
Select Off to disable the alarm.
■
Select Above to assign an alarm color to all
pixels above the alarm temperature.
■
Select Below to assign an alarm color to all
pixels below the alarm temperature.
■
Off
■
Above
■
Below
Type
Select any one of the measurement functions to
define which function's temperature value should
trigger the alarm.
Configuration-depen-
dent
Function
Select a number to assign an identity to the func-
tion above.
Configuration-depen-
dent
Identity
■
Select Silent to make the background of the
corresponding measurement function turn red
when an alarm is triggered
■
Select Beep to additionally make the camera
trigger a beep when an alarm is triggered.
■
Silent
■
Beep
Output
Enter a temperature value by pressing the naviga-
tion pad left/right.
User-definedAlarm temp
Select Yes or No to define whether the alarm tem-
perature should be set from the reference temper-
ature of the camera or not.
■
Yes
■
No
Set from ref temp
Enter an delta alarm value by pressing the naviga-
tion pad left/right.
N/ADelta alarm
For information purposes only.
The reference temperature is calculated and updat-
ed ’on the fly’.
User-definedRef temp
10
