16.12 Relationship between fields of view and distance
10401803;a1

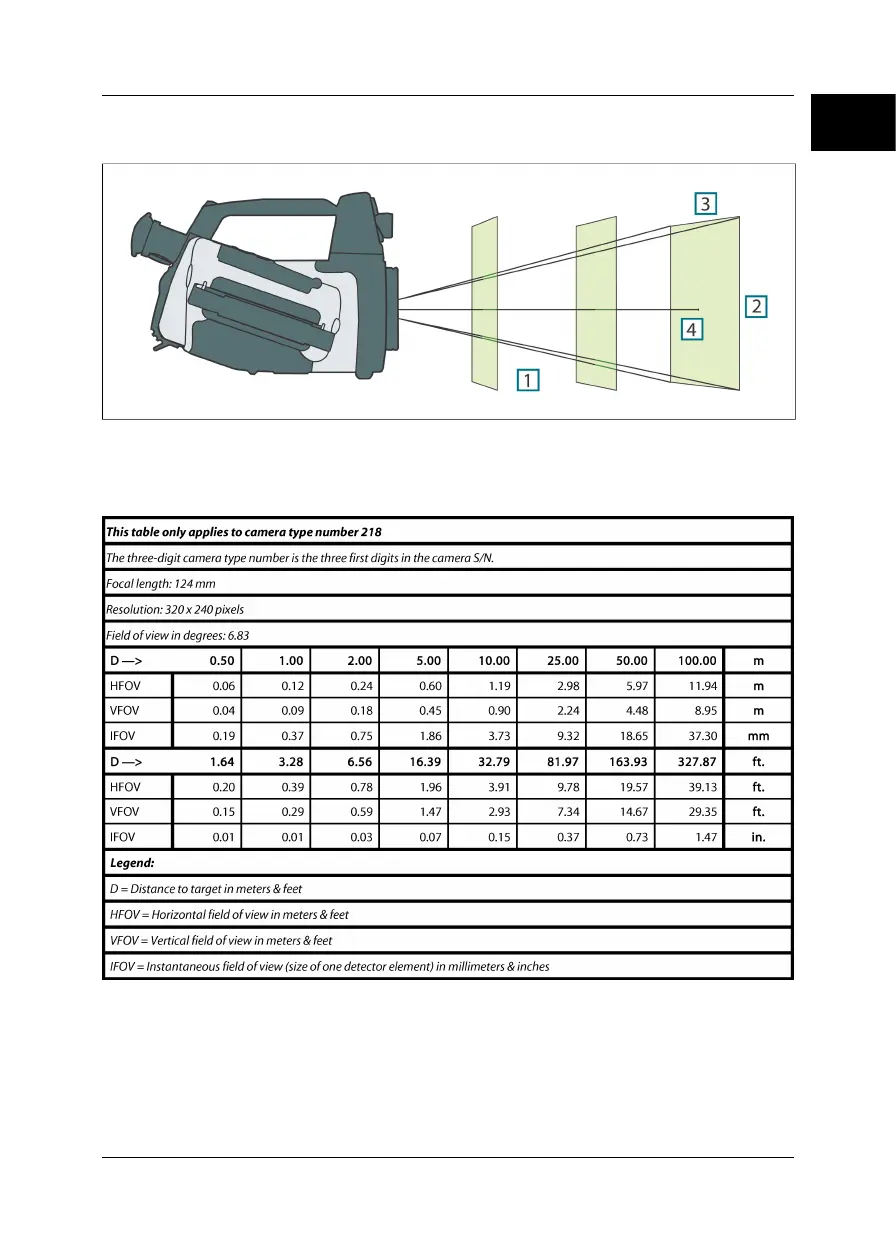

Figure 16.8 Relationship between fields of view and distance. 1: Distance to target; 2: VFOV = vertical
field of view; 3: HFOV = horizontal field of view, 4: IFOV = instantaneous field of view (size of one detector
element).
10586403;a2
Figure 16.9 Horizontal, vertical and instantaneous fields of view for certain distances to targets. 124 mm
lens / camera type 218.
16
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 121
16 – Technical specifications & dimensional drawings
