To change how the circle displays the measure-
ment results, select Max, Min, or Avg.
■
Min
■
Max
■
Avg
Result
10.2.3.5 Add line
Point to Add line and press the joystick to add a line. A line will now appear on the
screen. Press and hold down the joystick for one second when the line is selected
to display a shortcut menu.
10390703;a3

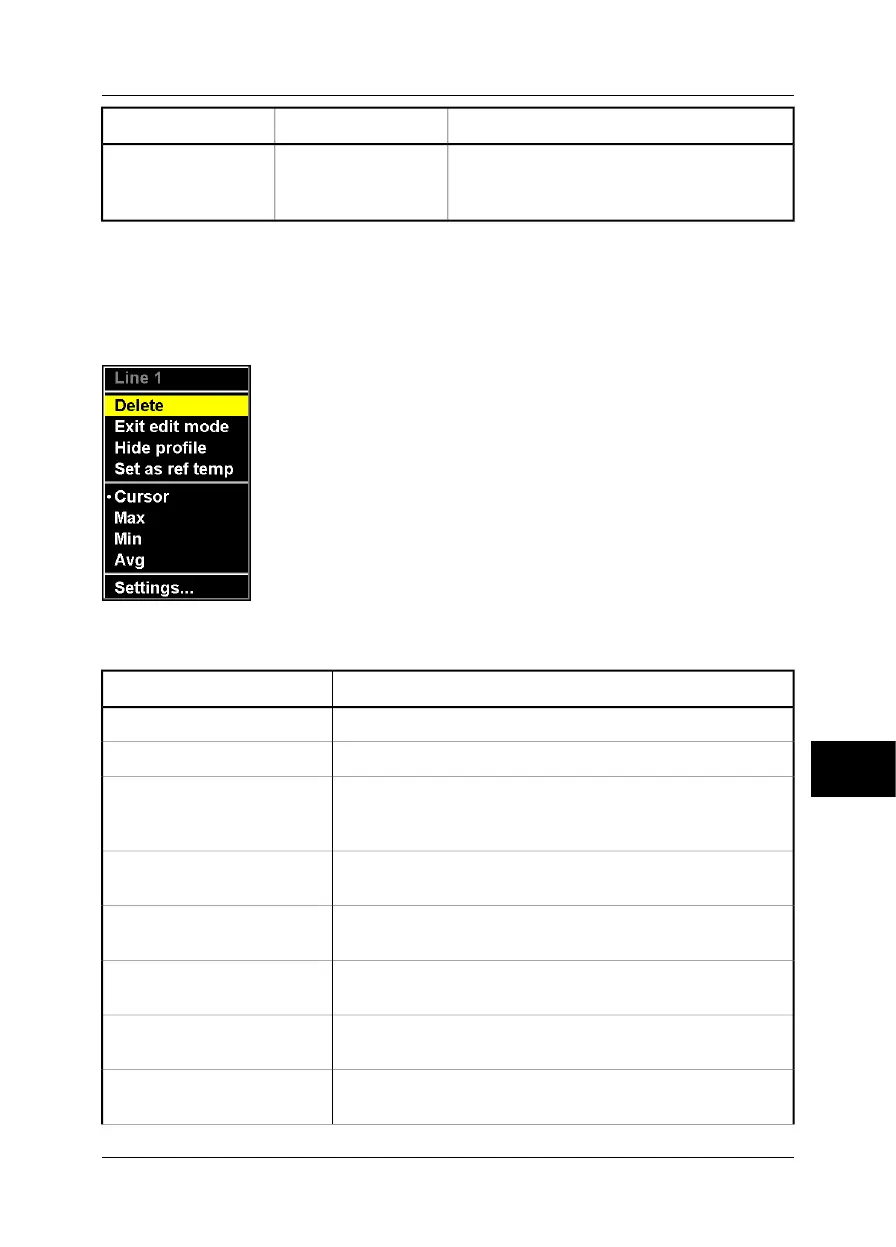

Figure 10.25 Shortcut menu for Line
Figure 10.26 Explanations of the shortcut menu for Line
ExplanationCommand
Point to Delete and press the joystick to delete the line.Delete
Point to Exit edit mode and press the joystick to exit the edit mode.Exit edit mode
Point to Show profile and press the joystick to display a profile
window. The profile window displays the different temperature levels
along the line as a graph.
Show profile
Point to Set as ref temp and press the joystick to use the line tem-
perature as the reference temperature.
Set as ref temp
Point to Cursor and press the joystick to display a cursor that you
can move along the line.
Cursor
Point to Max and press the joystick to display the maximum temper-
ature along the line.
Max
Point to Min and press the joystick to display the minimum temper-
ature along the line.
Min
Point to Avg and press the joystick to display the average tempera-
ture along the line.
Avg
10
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 83
