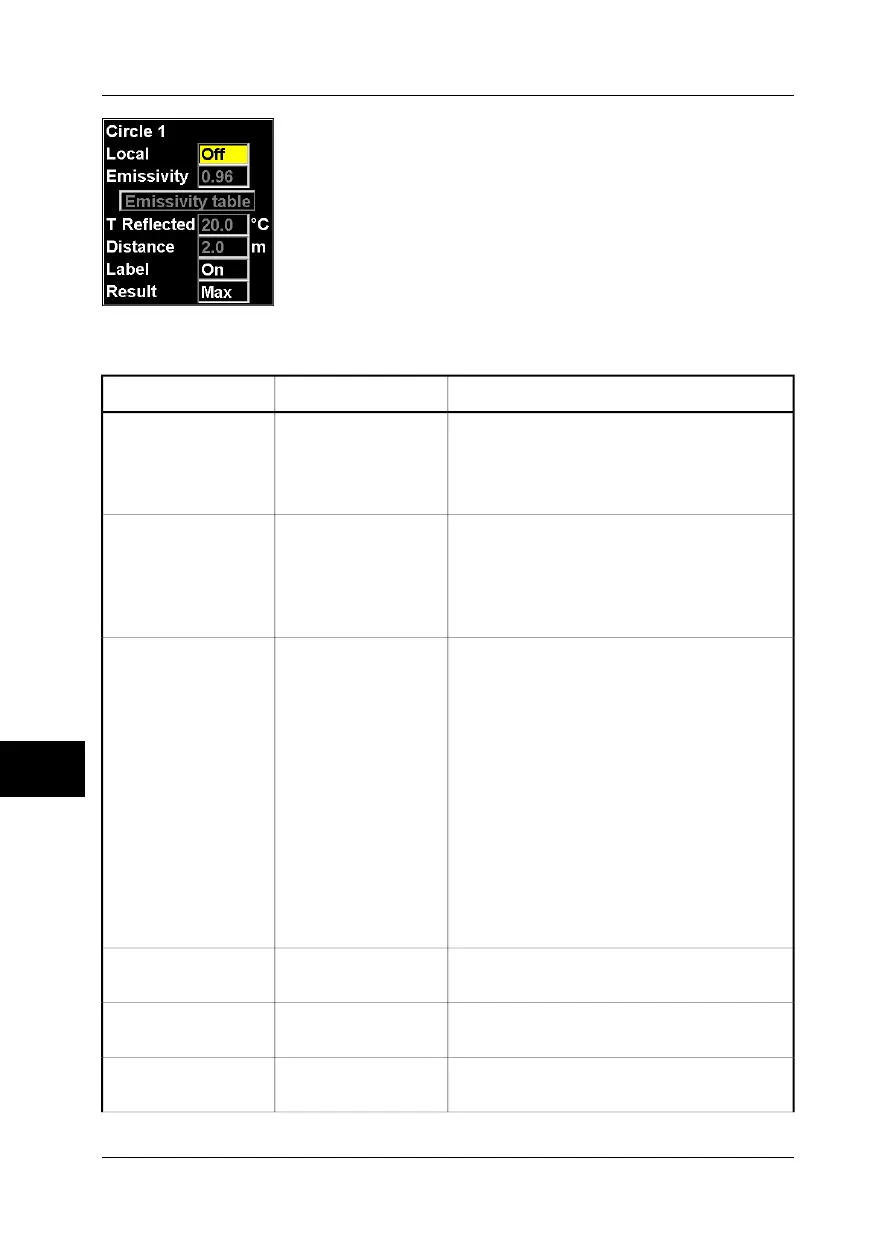

Figure 10.23 Circle dialog box
Figure 10.24 Explanations of the Circle dialog box
CommentsValueLabel
Select On to set the emissivity, the reflected tem-
perature, and the distance for this circle only.
Selecting On will also assign an asterisk to the
measurement marker’s label.
■
On
■
Off
Local
You can set the Emissivity if Local is enabled. If
not, this option will be shaded.
➲ If you enter an emissivity value less than 0.30
the emissivity box will begin flashing to remind you
that this value is unusually low.
User-defined
(0.01–1.00)
Emissivity
Press the button to the right of Emissivity table
to display an emissivity table on the screen.
You can use this emissivity table to find emissivities
for a number of different materials. An emissivity
table can be created and edited in FLIR Systems’s
PC software.
➲ The emissivity file can be stored at root level or
at directory level. However, the camera software
prioritizes files that are stored at directory level and
the directory has to be selected in order to store
the emissivity file in the camera memory. If the
camera software does not find an emissivity file at
directory level, it searches for similar files at root
level and saves those instead.
User-definedEmissivity table
You can set T Reflected if Local is enabled. If not,
this option will be shaded.
User-definedT Reflected
You can set Distance if Local is enabled. If not,
this option will be shaded.
User-definedDistance
Select On to assign a label to the measurement
marker (a small box with a number).
■
On
■
Off
Label
10
82 Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006
10 – Camera program
