12.2 External battery charging
The battery status while charging is indicated by a number of LEDs. See the figure
below.
10346203;a4

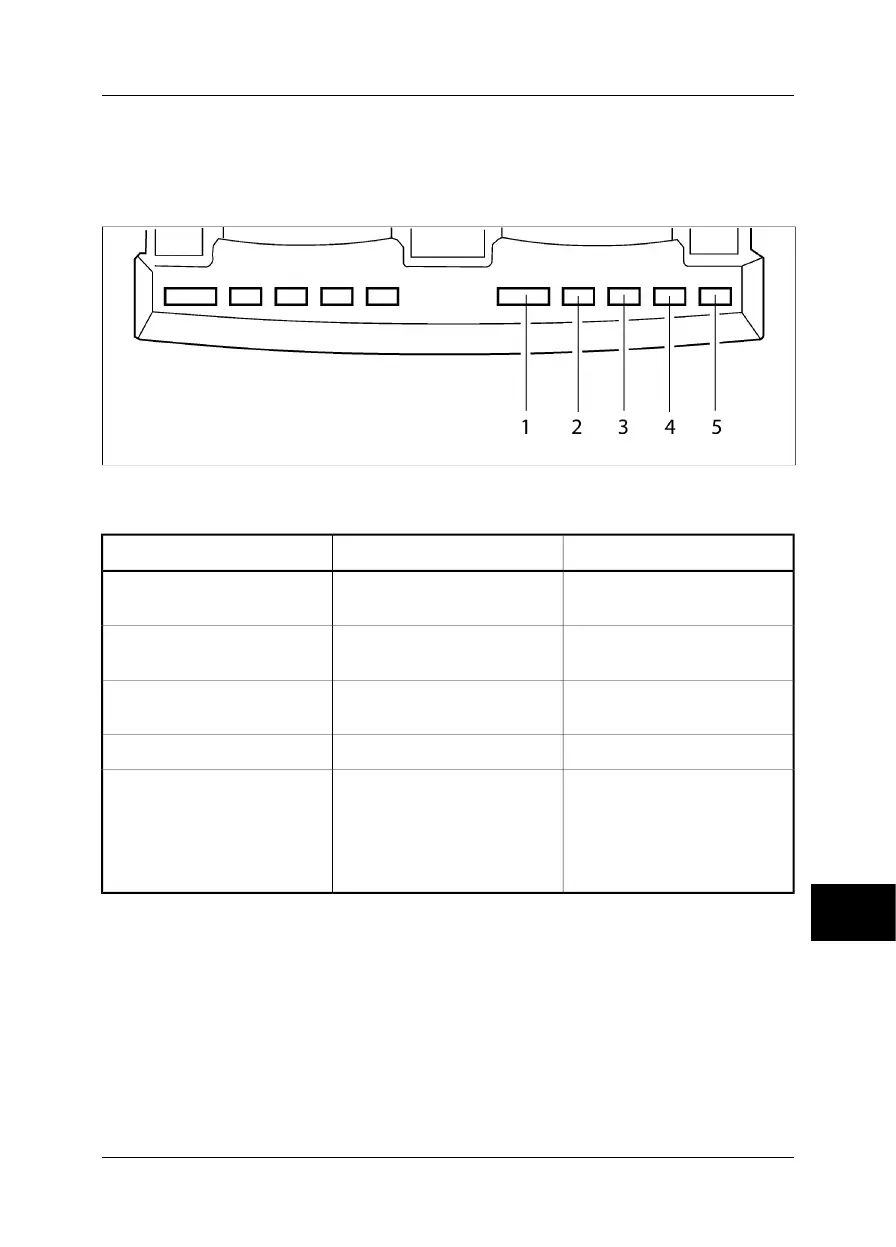

Figure 12.1 LED indicators on the stand-alone battery charger.
Figure 12.2 LED indicators – explanations
Color & modeIndicator #Situation
Fixed red light1The charger is under power, but
no battery is inserted
Fixed green light1The charger is under power, and
a battery is inserted
Flashing green light1The battery is too cold or too
warm
Flashing red light1The battery is out of order
Pulsing green light from LED 5
to LED 2
Each LED represents 25 % bat-
tery capacity and will be
switched on accordingly.
5 to 2The battery is now being
charged
12
Publ. No. 1557966 Rev. a155 – ENGLISH (EN) – February 6, 2006 105
12 – Electrical power system
